Система с водно охлаждане Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 ROG Strix with Backplate
Compatibility list:
RTX 3080
- ASUS ROG Strix GeForce RTX 3080, 10GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3080 OC, 10GB GDDR6X, 2x HDMI, 3x DP
RTX 3080 Ti
- ASUS GeForce RTX 3080 Ti STRIX LC Liquid Cooled, 12GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3080 Ti Gaming, 12GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3080 Ti Gaming OC, 12GB GDDR6X, 2x HDMI, 3x DP
RTX 3090
- ASUS ROG Strix GeForce RTX 3090 OC, 24GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3090, 24GB GDDR6X, 2x HDMI, 3x DP
Technical data cooler and pump | |
L x W x H | 162,5 x 266 x 46 mm |
Material cooler bottom | Nickel plated copper |
Material cooler top | PMMA |
Threads | 2 x G1/4“ |
Pump type | DC-LT 2 |
Pump speed | 2600 rpm (+/- 10%) |
Head of delivery | 0,95 m |
Technical radiator | |
L x W x H | 395 x 124 x 30mm (+/- 3%) |
Material fins, chambers & channels | copper |
Material threads | brass |
Material outer housing | stainless steel |
G 1/4“ threads | 2 x for tubes (+ 1x Fillport G1/4“) |
For fan size | 120 mm |
Possible fan assembly | 3 x one-sided / 6 x both-sided |
Technical data fans | |
Speed | 0 - 2500 RPM |
Static pressure | 3,17 mm H2O |
Air flow rate | 119,8 m³/h |
Fan connector | 4-Pin PWM |
Connection Digital aRGB | 3-Pin JST + 3-Pin 5V |
Dimensions | 120 x 120 x 25 mm |
Max working temperature | 60 °C |
Note:

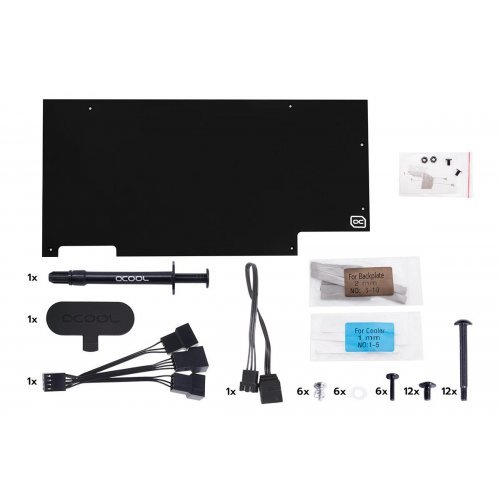

- This cooler includes a backplate
- Attention: The use of the NVLink is not possible with this AIO!
ТЕХНИЧЕСКИ ДЕТАЙЛИ
ПРОИЗВОДИТЕЛ | Alphacool |
ПРОДУКТОВ КОД | 1020896 |
БАРКОД | 4250197144186 |
ГАРАНЦИЯ | 24 месеца |
ТИП ОХЛАЖДАНЕ | Течност, Въздух, Хибрид, AIO |
РАЗМЕР НА ВЕНТИЛАТОРА | 3x 120 x 120 x 25 mm |
СКОРОСТ НА ВЪРТЕНЕ | Скорост на помпата: 2600 rpm (+/- 10%), Скорост на вентилаторите: 0 - 2500 RPM |
РАЗМЕР ОХЛАДИТЕЛ (W X D X H) | Радиатор: 395 x 124 x 30mm (+/- 3%), Охладител и помпа: 162,5 x 266 x 46 mm |
ВИДЕО ЧИПСЕТ | NVIDIA GeForce RTX |
МОДЕЛ ВИДЕО КАРТА | RTX 3080, RTX 3080 Ti, RTX 3090 |
ТЕГЛО | 5.24 kg |
