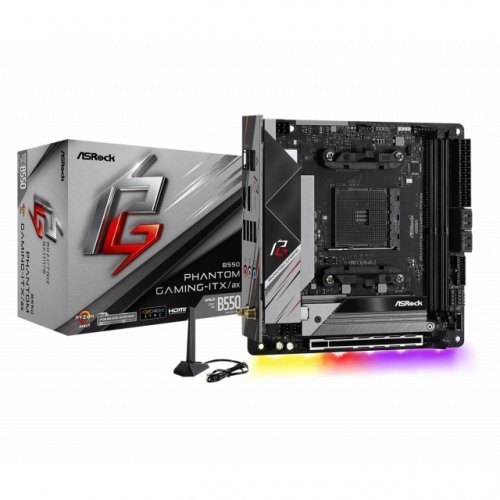

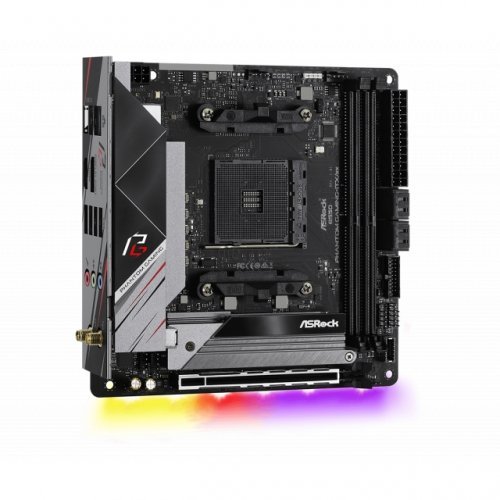

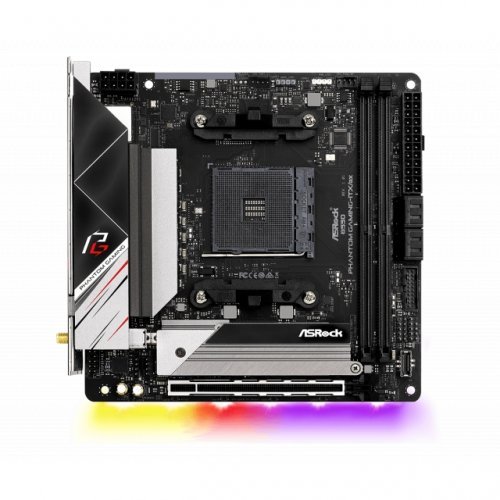

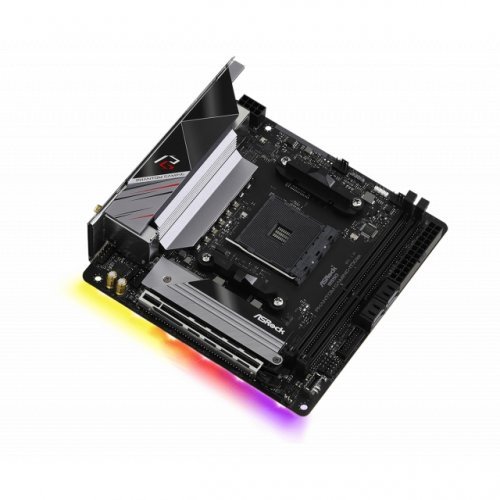

Дънна платка ASRock B550 Phantom Gaming-ITX/ax, AM4, Polychrome RGB
- Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
- 8 Power Phase Design, Digi Power, 90A Dr.MOS
- Supports DDR4 5400+ (OC)
- 1 PCIe 4.0 x16
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)
- Intel® 2.5G LAN, Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1
*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASROCK |
| МОДЕЛ | B550 Phantom Gaming-ITX/ax |
| БАРКОД | 4710483931611 |
| CPU SOCKET | AM4 |
| ЧИПСЕТ | AMD B550 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors |
| ФОРМ ФАКТОР | Mini ITX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 64 GB |
| СЛОТОВЕ ПАМЕТ | 2 |
| ЧЕСТОТА ПАМЕТ | DDR4 up to 5400Mhz+ (OC) |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU |
| ВГРАДЕНО АУДИО | Realtek ALC1220 |
| ВГРАДЕН LAN | GigaLAN Intel I225V |
| ВГРАДЕН WI-FI | Intel® 2.5G LAN, Wi-Fi 6 802.11ax (2.4Gbps) |
| ВГРАДЕН BLUETOOTH | Bluetooth V5.1 |
| СЛОТOВЕ PCI-E X16 | 1 |
| СЛОТOВЕ PCI-E X4 | 2 |
| ИНТЕРФЕЙС SERIAL ATA | 4 x SATA3 6.0 Gb/s |
| М2 СЛОТ | 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) |
| ПОДДРЪЖКА НА RAID | 0,1,10 |
| КОНЕКТОР ЗАХРАНВАНЕ | 1 x 24-pin, 1 x 8-pin |
| ВИДЕО СЛОТ | PCI Express |

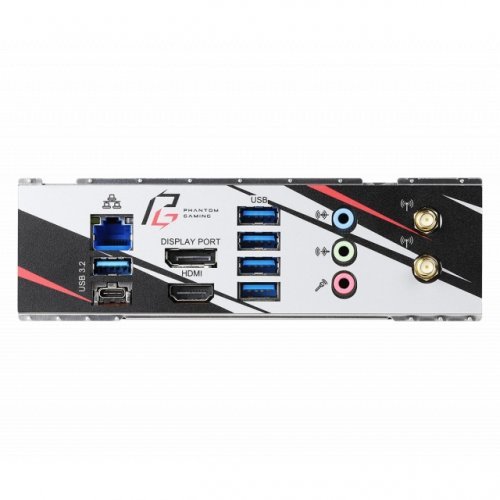

| СВЪРЗАНОСТ | 2 x Antenna Ports, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone |
| USB TYPE-C | 1 |
| USB 3.2 | 5 |
| USB 2.0 | 1 |
| РАЗМЕРИ | 17.0 cm x 17.0 cm |
| ПОДДЪРЖАНИ ТЕХНОЛОГИИ | ASRock Motherboard Utility (Phantom Gaming Tuning), ASRock Polychrome SYNC, ASRock Key Master, ASRock XFast LAN |
| КОМПЛЕКТЪТ ВКЛЮЧВА | Quick Installation Guide, Support CD, 2 x SATA Data Cables, 1 x ASRock WiFi 2.4/5 GHz Antenna, 1 x Screw for M.2 Socket |
| ДРУГИ | ASRock Full HD UEFI, ASRock Instant Flash, FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required) Certifications |
