ASRock
Дънна платка ASRock B550M PG RIPTIDE

Дънна платка ASRock B550M PG RIPTIDE

Name: Дънна платка ASRock B550M PG RIPTIDE
Brand: ASRock
SKU: -
Price: 236.44 BGN
Availability: OnlineOnly

Продуктов код: 91822

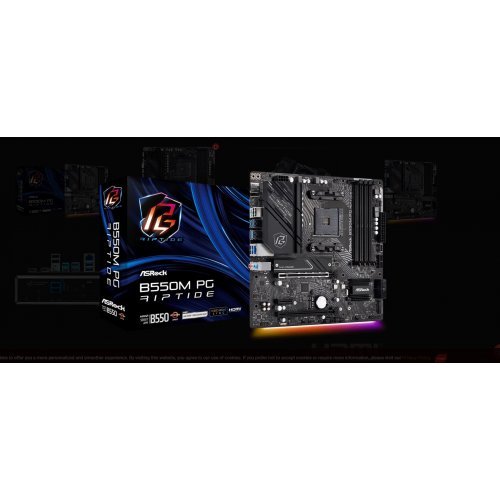

Дънна платка ASRock B550M PG RIPTIDE (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

ASRock

Модел:

Партиден номер:

B550M PG RIPTIDE

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

AMD B550

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

AMD AM4

Form Factor:

mATX

Видео изходи:

DisplayPort, HDMI

Wi-Fi свързаност:

Не

Цена с включен ДДС:

236.44 лв.

Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

ASRock B550M PG RIPTIDE

Manufacturer: ASROCK

Model: B550M PG RIPTIDE

CPUs supported: Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Serie;
Desktop Processor;
Digi Power design;
8 Power Phase design;
;

Memory type: Dual Channel DDR4 Memory Technology;
4 x DDR4 DIMM Slot;
AMD Ryzen series CPUs Vermeer support DDR4 4600+OC 4533OC 4466OC 4400OC 4333OC 4266OC 4200OC 4133OC 4000OC 3866OC 3800OC 3733OC 3600OC 3466OC 3200 2933 2667 2400 2133 ECC non-ECC, un-buffered memory;
AMD Ryzen series CPUs Matisse support DDR4 4600+OC 4533OC 4466OC 4400OC 4333OC 4266OC 4200OC 4133OC 4000OC 3866OC 3800OC 3733OC 3600OC 3466OC 3200 2933 2667 2400 2133 ECC non-ECC, un-buffered memory;
AMD Ryzen series APUs Cezanne support DDR4 4733+OC 4666OC 4600OC 4533OC 4466OC 4400OC 4333OC 4266OC 4200OC 4133OC 4000OC 3866OC 3800OC 3733OC 3600OC 3466OC 3200 2933 2667 2400 2133 ECC non-ECC, un-buffered memory;
AMD Ryzen series APUs Renoir support DDR4 4733+OC 4666OC 4600OC 4533OC 4466OC 4400OC 4333OC 4266OC 4200;

Chipset: AMD B550

Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU;
DirectX 12, Pixel Shader 5.0;
Shared memory default 2GB. Max Shared memory supports up to 16GB.;
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controller;
Supports HDMI 2.1 with max. resolution up to 4K x 2K 4096x2160 60Hz;
Supports DisplayPort 1.4 with max. resolution up to 5K 5120x2880120Hz;
Supports Auto Lip Sync, Deep Color 12bpc, xvYCC and HBR High Bit Rate Audio with HDMI 2.1 Port Compliant HDMI monitor is required;
Supports HDR High Dynamic Range with HDMI 2.1;
Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports;
Supports 4K Ultra HD UHD playback with HDMI 2.1 and DisplayPort 1.4 Port;
Supports Microsoft PlayReady;
Actual support may vary by CPU;
The Max shared memory 16GB requires 32GB system memory installed.;
Picasso supports HDCP 2.2 with HDMI 2.0 Port;
;

Expansion Slots: AMD Ryzen series CPUs Vermeer and Matisse;
2 x PCIe x16 Slots PCIE1: Gen4x16 mode;
PCIE3: Gen3x4 mode;
AMD Ryzen series APUs Cezanne and Renoir;
2 x PCIe x16 Slots PCIE1: Gen3x16 mode;
PCIE3: Gen3x4 mode;
AMD Ryzen series APUs Picasso;
2 x PCIe x16 Slots PCIE1: Gen3x8 mode;
PCIE3: Gen3x4 mode;
1 x PCIe Gen3x1 Slot;
Supports AMD Quad CrossFireX and CrossFireX;
1 x M.2 Socket Key E, supports type 2230 WiFiBT PCIe WiFi module;
15 Gold Contact in VGA PCIe Slot PCIE1;
;

Storage: 4 x SATA3 6.0 Gbs Connector;
1 x Hyper M.2 Socket M2_1, Key M, supports type 22602280 PCIe Gen4x4 64 Gbs mode with Vermeer, Matisse or Gen3x4 32 Gbs mode with Cezanne, Renoir and Picasso;
1 x M.2 Socket M2_2, Key M, supports type 22602280 SATA3 6.0 Gbs PCIe Gen3x2 16 Gbs modes;
Supports NVMe SSD as boot disk;
NVMe SSD is not supported with AMD Athlon 3000G Processor;
Supports ASRock U.2 Kit;
;

IO: 2 x Antenna Mounting Point;
1 x PS2 MouseKeyboard Port;
1 x HDMI Port;
1 x DisplayPort 1.4;
1 x USB 3.2 Gen2 Type-A Port 10 Gbs Supports ESD Protection;
1 x USB 3.2 Gen2 Type-C Port 10 Gbs Supports ESD Protection;
4 x USB 3.2 Gen1 Ports Supports ESD Protection;
2 x USB 2.0 Ports Supports ESD Protection;
1 x RJ-45 LAN Port with LED ACTLINK LED and SPEED LED;
HD Audio Jacks: Line in Front Speaker Microphone;
;

Connectors: 1 x SPI TPM Header;
1 x Power LED and Speaker Header;
2 x RGB LED Headers;
2 x Addressable LED Headers;
1 x CPU Fan Connector 4-pin;
1 x CPUWater Pump Fan Connector 4-pin Smart Fan Speed Control;
4 x ChassisWater Pump Fan Connectors 4-pin Smart Fan Speed Control;
1 x 24 pin ATX Power Connector;
1 x 8 pin 12V Power Connector;
1 x Front Panel Audio Connector;
2 x USB 2.0 Headers Support 4 USB 2.0 ports Supports ESD Protection;
1 x USB 3.2 Gen1 Header Supports 2 USB 3.2 Gen1 ports Supports ESD Protection;
1 x Front Panel Type C USB 3.2 Gen1 Header Supports ESD Protection;
;

Audio: 7.1 CH HD Audio Realtek ALC897 Audio Codec;
Supports Surge Protection;
Nahimic Audio;
;

LAN: 2.5 Gigabit LAN 1010010002500 Mb;
Dragon RTL8125BG;
Supports Phantom Gaming LAN Software;
Smart Auto Adjust Bandwidth Control;
Visual User Friendly UI;
Visual Network Usage Statistic;
Optimized Default Setting for Game, Browser, and Streaming Mode;
User Customized Priority Control;
Supports Wake-On-LAN;
Supports LightningESD Protection;
Supports Energy Efficient Ethernet 802.3az;
Supports PXE;
;

BIOS: 128Mb AMI UEFI Legal BIOS with GUI support;
Supports Plug and Play;
ACPI 5.1 compliance wake up event;
Supports jumperfree;
SMBIOS 2.3 support;
CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, VPPM Voltage Multi-adjustment;
;

Form Factor: Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm;
Solid Capacitor design;
;

OS: Microsoft Windows 10 64-bit 11 64-bit

Other: Software;
ASRock Motherboard Utility Phantom Gaming Tuning;
ASRock Phantom Gaming LAN Software;
ASRock Polychrome SYNC;
ASRock Key Master;
UEFI;
ASRock Full HD UEFI;
ASRock Instant Flash;
Drivers, Utilities, AntiVirus Software Trial Version, Google Chrome Browser and Toolbar;
Quick Installation Guide, Support CD, IO Shield;
2 x SATA Data Cable;
3 x Screws for M.2 Socket;
1 x Standoff for M.2 Socket;
Fan Tachometer: CPU, CPUWater Pump, ChassisWater Pump Fan;
Quiet Fan Auto adjust chassis fan speed by CPU temperature: CPU, CPUWater Pump, ChassisWater Pump Fan;
Fan Multi-Speed Control: CPU, CPUWater Pump, ChassisWater Pump Fan;
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, +1.8V;
;
