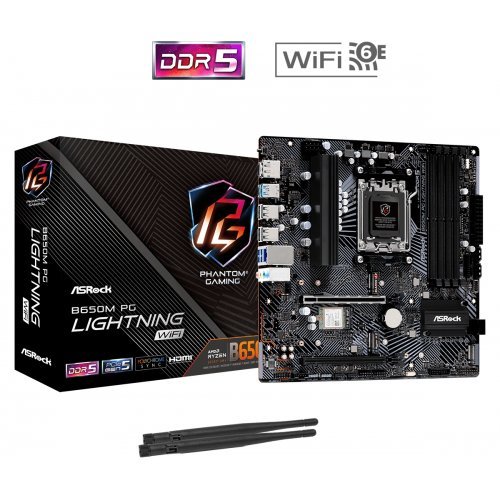

Дънна платка ASRock B650M PG LIGHTNING WIFI

ASROCK B650M PG LIGHTING WIFI



• CPU`s supported: - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

• Memory type: - Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 192GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• Chipset: - AMD B650

• Graphics: Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

• Expansion Slots: CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*; Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - Supports AMD CrossFire™; - 15? Gold Contact in VGA PCIe Slot (PCIE1)

• Storage: CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*; Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors

• I/O: - 2 x Antenna Ports; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 2 x USB 3.2 Gen1 Type-A Ports; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone

• Connectors: - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen1 Header

• Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio

• LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Phantom Gaming LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control

• BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support

• Form Factor: - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

• OS: - Microsoft® Windows® 10 64-bit / 11 64-bit

• Other: - 802.11ax Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax; - Supports Dual-Band 2x2 with extended 6GHz band* support; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.2 + High speed class II; - Supports MU-MIMO

• Warranty: 36 Months
