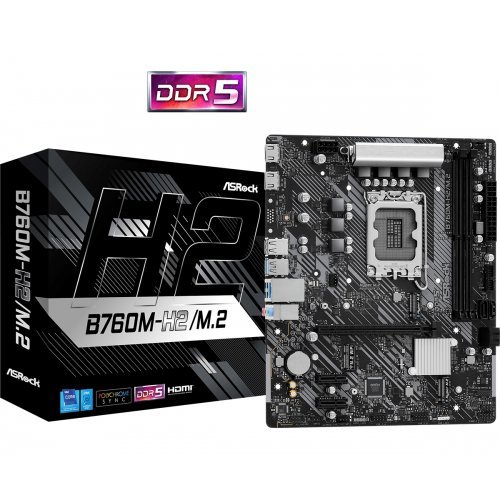

Дънна платка ASRock B760M-H2/M.2

Name: Дънна платка ASRock B760M-H2/M.2
Brand: ASRock
SKU: B760M-H2/M.2
Price: 201.78 BGN
Availability: OnlineOnly

Продуктов код: 85947

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

ASRock

Модел:

B760M-H2/M.2

Партиден номер:

B760M-H2/M.2

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel B760

Брой слотове за памет:

RAM - поколение:

DDR5

Socket:

Intel LGA1700

Form Factor:

mATX

Видео изходи:

HDMI

Wi-Fi свързаност:

Не

Цена с включен ДДС:

201.78 лв.

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

ASRock B760M-H2/M.2

CPUs supported: - Supports 14th, 13th 12th Gen Intel Core Processors LGA1700;
- Supports Intel Hybrid Technology;
- Supports Intel Turbo Boost Max 3.0 Technology;
- Supports Intel Thermal Velocity Boost TVB;
- Supports Intel Adaptive Boost Technology ABT;

Memory type: - Dual Channel DDR5 Memory Technology;
- 2 x DDR5 DIMM Slot;
- Supports DDR5 non-ECC, un-buffered memory up to 7200+OC;
- Max. capacity of system memory: 96GB;
- Supports Intel Extreme Memory Profile XMP 3.0;

Graphics: - Intel Xe Graphics Architecture Gen 12;
- 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz;

Expansion Slots: CPU: - 1 x PCIe 4.0 x16 Slot PCIE1, supports x16 mode;
Chipset: - 2 x PCIe 3.0 x1 Slots PCIE2 and PCIE3;
- 1 x M.2 Socket Key E, supports type 2230 WiFiBT PCIe WiFi module;

Storage: Chipset: - 1 x Hyper M.2 Socket M2_1, Key M, supports type 22602280 PCIe Gen4x4 64 Gbs mode;
- 1 x Hyper M.2 Socket M2_2, Key M, supports type 2280 PCIe Gen4x4 64 Gbs modes;
- 4 x SATA3 6.0 Gbs Connector;

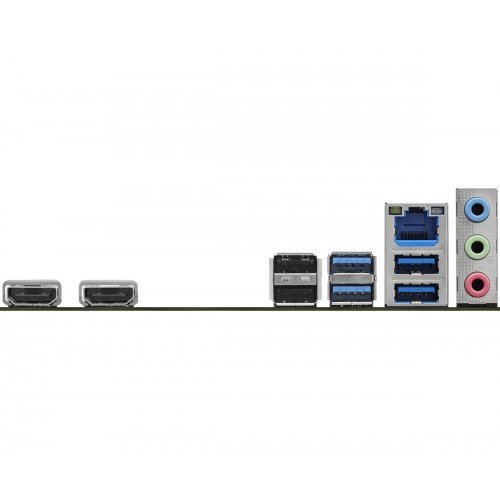

IO: - 2 x Antenna Mounting Point;
- 2 x HDMI Port;
- 4 x USB 3.2 Gen1 Type-A Port;
- 2 x USB 2.0 Port;
- 1 x RJ-45 LAN Port;
- HD Audio Jacks: Line in Front Speaker Microphone;

Connectors: - 1 x SPI TPM Header;
- 1 x Chassis Intrusion and Speaker Header;
- 1 x RGB LED Header;
- 3 x Addressable LED Headers;
- 1 x CPU Fan Connector 4-pin;
- 1 x CPUWater Pump Fan Connector 4-pin Smart Fan Speed Control;
- 2 x ChassisWater Pump Fan Connectors 4-pin Smart Fan Speed Control;
- 1 x 24 pin ATX Power Connector;
- 1 x 8 pin 12V Power Connector;
- 1 x Front Panel Audio Connector;
- 2 x USB 2.0 Headers Support 4 USB 2.0 ports;
- 1 x USB 3.2 Gen1 Header Supports 2 USB 3.2 Gen1 ports;

LAN: - 2.5 Gigabit LAN 1010010002500 Mb;
- Dragon RTL8125BG;
- Supports Dragon 2.5G LAN Software;
- Smart Auto Adjust Bandwidth Control;
- Visual User Friendly UI;
- Visual Network Usage Statistic;
- Optimized Default Setting for Game, Browser, and Streaming Mode;
- User Customized Priority Control;
