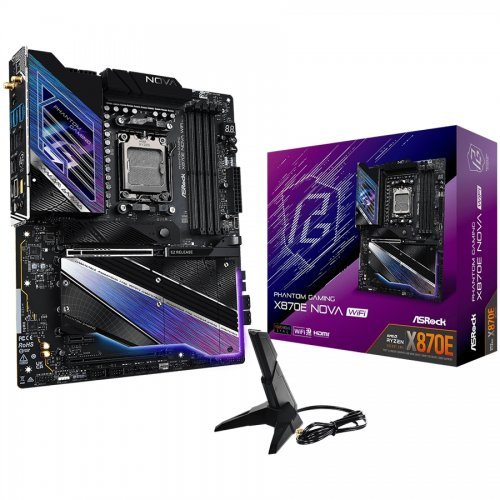

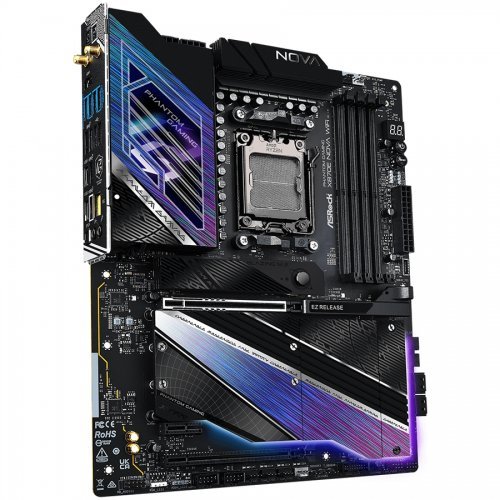

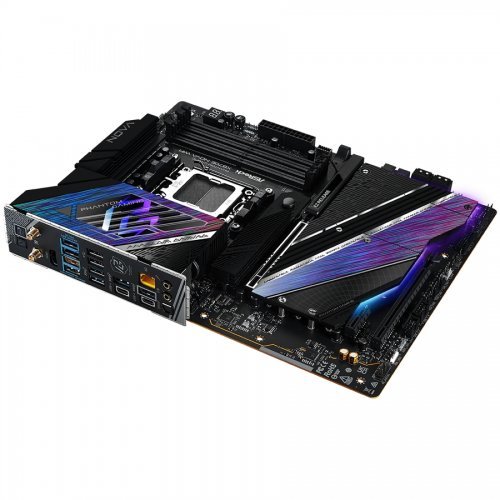

Дънна платка ASRock X870E Nova Wi-Fi 90-MXBPX0-A0UAYZ

Main Board Desktop - Processor

Chipset:

AMD X870E

Supports Central Processor Unit:

AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series

CPU Socket Standard:

Socket AM5

CPU Maximum Quantity Supports:

1

Main Board Desktop - Memory

Memory Type:

DDR5 SDRAM

Memory Form Factor:

DIMM 288-pin

Memory Speed:

8200MHz

Maximum Installable System Memory Storage Capacity:

256 GB

Memory Slot Total Quantity:

4

Provides Error Checking Method:

ECCnon-ECC

Memory Features:

Two DDR Channels Unbuffered XMP AMD EXPO

Controller

Integrated:

Storage Controller: Supports: Level 0, Level 1, Level 10 PCI Express 5.0 x4 1 x M.2 Key M Storage Controller: Supports: Level 0, Level 1, Level 10 PCI Express 4.0 x4 3 x M.2 Key M Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 4 Storage Controller: PCIe 3.0 x2SATA 1 x M.2 Key M

Plug-in-card:

Wi-Fi Controller: 1 x M.2 Key E

Main Board Desktop - Video Output

Video Controller Integrated:

yes

Main Board Desktop - Audio Output

Audio Integrated:

yes

Device Location:

Integrated

Audio Chipset:

Realtek ALC4082

Audio Output Mode:

7.1 Channel Surround

Compliant Audio Standards:

High Definition Audio Nahimic Audio

Main Board Desktop - Networking Specifications

LAN Integrated:

yes

LAN Chipset:

Realtek RTL8126

Wi-Fi:

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n Wi-Fi 4 IEEE 802.11ac Wi-Fi 5 IEEE 802.11ax Wi-Fi 6 IEEE 802.11ax Wi-Fi 6E IEEE 802.11be Wi-Fi 7

Bluetooth:

Bluetooth 5.4

Data Link Protocol Supports:

Gigabit EthernetFast EthernetEthernet 2.5 Gbps 5 Gbps

Slot Provided

PCI Express 5.0 x16:

1

PCI Express 3.0 x1:

1

PCI Express 3.0 x16:

1

Interface Provided

Antenna:

2

HDMI:

1 HDMI Type A

SPDIF-out Optical:

1 TOSLINK

USB 4.0:

2 USB 4.0 type C

USB 3.2 Gen 2:

5 USB 3.2 type A

USB 3.2 Gen 1:

3 USB 3.2 type A

USB 2.0:

2 USB 2.0 type A

LAN:

1 RJ-45

Audio Line-Out:

1 3.5-mm minijack

Microphone-In:

1 3.5-mm minijack

Main Board Desktop - Mainboard Features

BIOS Features:

ASRockRack Instant Flash 256Mb AMI UEFI Legal BIOS with GUI support

Main Board Desktop - Software

Supported Operating System:

Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit

Miscellaneous

Cable Included:

4 x SATA Data Cables Splitter Cable 3 x Thermistor Cables

Main Board Desktop - Dimensions&Weight

Form Factor:

Extended ATX

Height mm:

244 mm

Width mm:

305 mm

Warranty

Warranty Products Returnable:

Yes

Warranty Term month:

36 months

Warranty Validation Criteria:

Serial Number

Logistic

Pack Weight Brutto kg:

3.31 kg

Pack Weight Netto kg:

2.07 kg

Pieces in pack:

1

Box Weight Brutto kg:

16.58 kg

Retail Packaging Net Weight Carton:

1 kg

Retail Packaging Net Weight Plastic:

1 kg

Packs in Box:

5

Package Type:

Retail

EAN Code:

4710483949654
