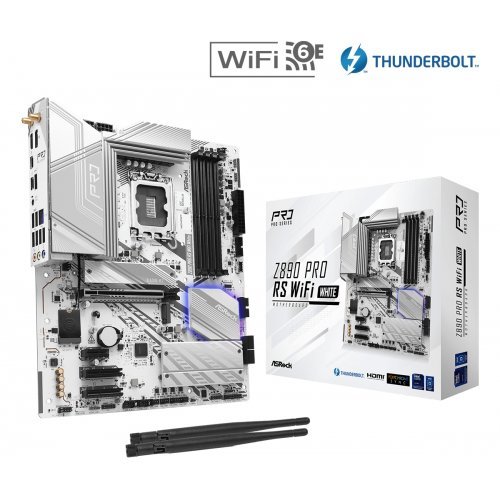

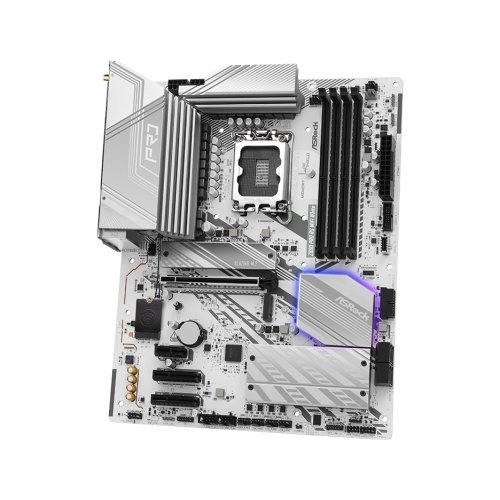

Дънна платка ASRock Z890 PRO RS WIFI WHITE

Main Board Desktop - Processor

Chipset:

Intel Z890

Supports Central Processor Unit:

Intel Core Ultra Processors

CPU Socket Standard:

Socket 1851

Architecture Features:

Intel Turbo Boost Max Technology 3.0 Intel Hybrid Technology Intel Thermal Velocity Boost Intel Adaptive Boost Technology

CPU Maximum Quantity Supports:

1

Main Board Desktop - Memory

Memory Type:

DDR5 SDRAM

Memory Form Factor:

DIMM 288-pin

Memory Speed:

5600MHzPC5-44800

Maximum Installable System Memory Storage Capacity:

256 GB

Memory Slot Total Quantity:

4

Provides Error Checking Method:

non-ECC

Memory Features:

Two DDR Channels Unbuffered Dual Rank Single Rank XMP

Controller

Integrated:

Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 4 Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 PCI Express 4.0 x4 3 x M.2 Key M Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 PCI Express 5.0 x4 1 x M.2 Key M

Plug-in-card:

Wi-Fi Controller: 1 x M.2 Key E

Main Board Desktop - Video Output

Video Controller Integrated:

yes

Main Board Desktop - Audio Output

Audio Integrated:

yes

Device Location:

Integrated

Audio Chipset:

Realtek ALC897

Audio Output Mode:

7.1 Channel Surround

Compliant Audio Standards:

High Definition Audio Nahimic Audio

Main Board Desktop - Networking Specifications

LAN Integrated:

yes

LAN Chipset:

Realtek Dragon RTL8125BG

Wi-Fi:

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n Wi-Fi 4 IEEE 802.11ac Wi-Fi 5 IEEE 802.11ax Wi-Fi 6E

Bluetooth:

Bluetooth 5.3

Data Link Protocol Supports:

2.5 Gbps

Slot Provided

PCI Express 5.0 x16:

1

PCI Express 4.0 x4:

1

PCI Express 4.0 x1:

1

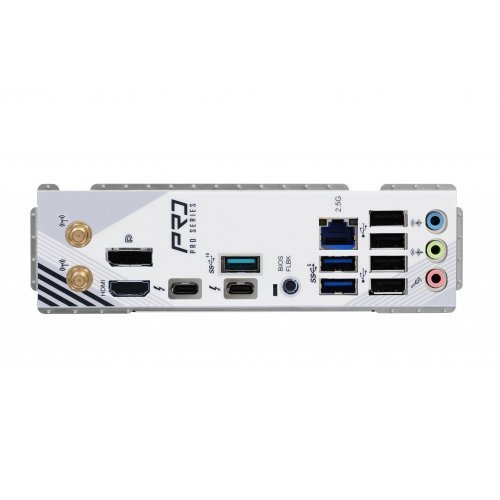

Interface Provided

Antenna:

2

HDMI:

1 HDMI Type A

DisplayPort:

1

Thunderbolt:

2 USB Type C

USB 3.2 Gen 2:

1 USB 3.2 type A

USB 3.2 Gen 1:

2 USB 3.2 type A

USB 2.0:

4 USB 2.0 type A

LAN:

1 RJ-45

Audio Interface:

3 3.5-mm minijack

Main Board Desktop - Mainboard Features

BIOS Features:

256Mb AMI UEFI Legal BIOS with GUI support

Power Connectors Type:

24+8 pin

Main Board Desktop - Software

Supported Operating System:

Microsoft Windows 11 64-bit

Miscellaneous

Cable Included:

2 x SATA Data Cables

Included Accessories:

WiFi antenna Screw

Certifications:

FCC, CE, ErPEuP ready ErPEuP ready power supply is required

Main Board Desktop - Dimensions&Weight

Form Factor:

ATX

Height mm:

244 mm

Width mm:

305 mm

Warranty

Warranty Products Returnable:

Yes

Warranty Term month:

36 months

Warranty Validation Criteria:

Serial Number

Logistic

Pack Weight Brutto kg:

2.08 kg

Pack Weight Netto kg:

1.18 kg

Pieces in pack:

1

Box Weight Brutto kg:

10.41 kg

Retail Packaging Net Weight Carton:

1 kg

Retail Packaging Net Weight Plastic:

1 kg

Packs in Box:

5

Package Type:

Retail
