Безжичен рутер Asus DSL-N55U Annex A, N600 Dual-Band Gigabit ADSL Modem and Wi-Fi Router

As the first ASUS N600 simultaneous dual-band Wi-Fi ADSL router, the DSL-N55U provides a stylish design, sophisticated features, and easy setup alongside supreme wireless and wired networking for the home.

Two USB 2.0 ports allow the DSL-N55U to share 3G/4G dongle signal; to share printing and scanning functions on a network, and operate as high-speed NAS (Network Attached Storage) when an external storage device is connected. It can act as a media server and home entertainment center. Any device, such as a PS3, iPhone, or Eee Pad can directly stream music and video wirelessly through the DSL-N55U.

For wired networking, four Gigabit Ethernet ports provide excellent capacity. Support for up to 300,000 data sessions means the DSL-N55U has around 20 times the networking capacity of other home routers. Data transmission stays fast even when the router is under heavy load, and easy-to-use QoS settings assure that important traffic — VoIP calls or online gaming — isn’t adversely affected by large file downloads.

Two Devices in One – ADSL Modem and Wi-Fi Router

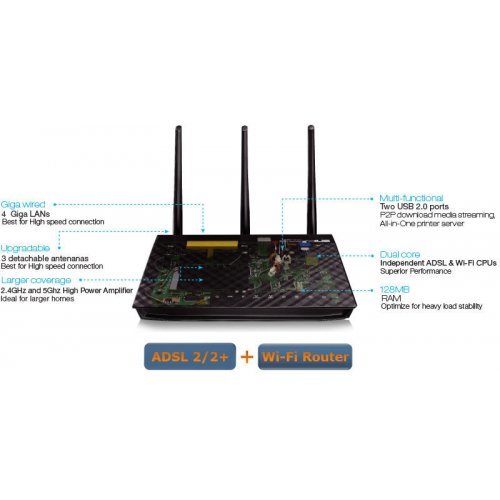

Designed with the latest in networking technology, the DSL-N55U has two Independent CPUs for its ADSL modem and Wi-Fi router modes, which deliver exceptionally fast wired and wireless connectivity. It comes with a powerful detachable Wi-Fi antenna to further extend wireless range.

Dual-Band Connectivity for Lag-Free Entertainment

Double your total wireless bandwidth and reduce Wi-Fi interference with the DSL-N55U’s simultaneous 2.4GHz and 5GHz bands at a combined speed of up to 600Mbps. Basic internet processes like web browsing or file downloads run under the 2.4GHz band, while simultaneous streaming of HD content occurs in the super-fast 5GHz band, always ensuring optimized speeds and allowing a smooth and buffer-free experience.

Optimized and Reliable Wireless Coverage via Ai Radar

ASUS Ai Radar intelligently strengthens connections to wireless devices. With high-powered amplification, it provides stronger signals in any direction with better coverage to improve data throughput.

Dual Purpose: 3G/4G and WAN

Get online using your modem or via a 3G/4G USB dongle – the choice is yours. With 3G/4G failover function, you get a backup plan should DSL fail to connect.

Two Multi-Functional Built-In USB ports

Featuring connectivity to devices, FTPs, Samba, UPnP AV servers, the DSL-N55U makes sharing and networking easier with two built-in USB ports. Download HTTP, FTP, and P2P files to a router-connected USB storage device all day, even without a PC. Additionally, the twin USB ports allow for networked printer and file server connections, so you perform multiple tasks at once.

• Network Standard
  IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6
• Product Segment
  N600 advanced performance; 300+300Mbps
• Wi-Fi Data Rate
  802.11a : 6,9,12,18,24,36,48,54Mbps
  802.11b : 1, 2, 5.5, 11Mbps
  802.11g : 6,9,12,18,24,36,48,54Mbps
  802.11n : up to 600Mbps
• xDSL Data Rate
  ANSI T1.413 Issue 2,
  ITU-T G.992.1 Annex A (G.dmt),
  ITU-T G.992.2 (G.lite),
  ITU-T G.994.1 (G.hs),
  ITU-T G.992.3 (G.dmt.bis),
  ITU-T G.992.5 Annex A/M
  ADSL 2/2+ 24Mbps downstream
• Antenna
  Detachable dBi dipole antenna x 3
• LED Indicator
  Power, ADSL, Internet, WLAN, LAN x 4
• Button
  WPS Button, Reset Button, Power Switch, Wireless on/off Switch
• Ports
  1 x RJ11 for ADSL
  4 x RJ45 for 10/100/Gigabits BaseT for LAN
• USB Ports
  USB 2.0 x 2
• USB Applications
  Printer Server
  FTP Server
  3G/4G sharing
• Operating Frequency
  2.4GHz
  5GHz
• Operation Channel
  13 Europe (ETSI)
• Memory
  8MB Flash/128MB DDR2 for Wi-Fi,
  1MB Flash/2MB SDRAM for ADSL
• Receive Sensitivity
  -95dBm@1Mbps
  -89dBm@11Mbps
  -75dBm@54Mbps
  -72dBm@72.2Mbps
  -68dBm@150Mbps
• Output Power
  b mode : 17 ~19 dBm
  g mode : 15 ~17 dBm
  n mode : 15 ~17 dBm
• Security
  64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support
• Firewall & Access Control
  Built-in NAT and SPI firewall
  Port, IP packet, URL, MAC filter
• Management
  Web-based GUI configuration
  Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
  UPnP IGD 1.0
  Auto VPI/VCI detection
  Configuration backup and restore
  Diagnostics
  Log & Trace function
• Utilities
  Web-based GUI configuration
  Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
  Auto VPI/VCI detection
  Configuration backup and restore
  Diagnostics
  Log & Trace function
  Network Printer Setup
• VPN Support
  IPSec Pass-Throuth
  PPTP Pass-Through
  L2TP Pass-Through
  PPTP server
• Power Adapter
  AC Input : 100 ~240 V(50~60HZ)
  DC Output : 19 V/1.58 A
  Power Consumption : 30 W Max.
• Certificates
  CE, C-Tick, Telepermit, IDA, PCT, Wi-Fi
• Dimensions
  207 x 148.8 x 35.5 mm (WxDxH)
• Weight
  400 g (Device Only)
• Environmental
  Operating Temperature: -10 °C to 50 °C (14 °F to 122 ºF)
  Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F)
  Operating Humidity: 5 % to 95 % (Non-condensing)
  Storage Humidity: 5 % to 95 % (Non-condensing)
• OS Support
  Windows® 8 , 32bit/64bit
  Windows® 7 , 32bit/64bit
  Windows® Vista , 32bit/64bit
  Windows® XP , 32bit/64bit
  Mac OS X
  Linux
• Package Content
  DSL-N55U Wireless Annex A ADSL Router
  3x detachable dual band antennas
  Power adapter
  Splitter
  Support CD (user manual, utilities)
  RJ45 cable
  RJ11 cable
  Quick Start Guide
  Warranty Card
