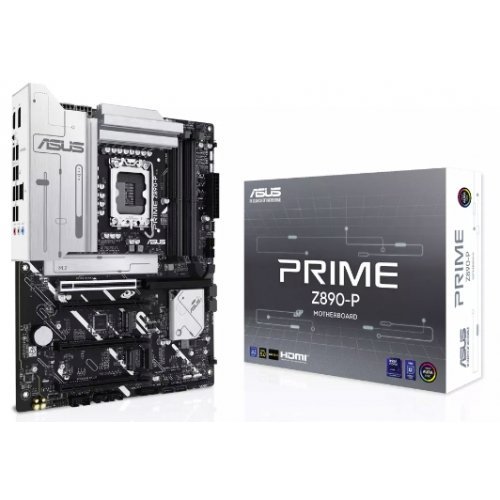

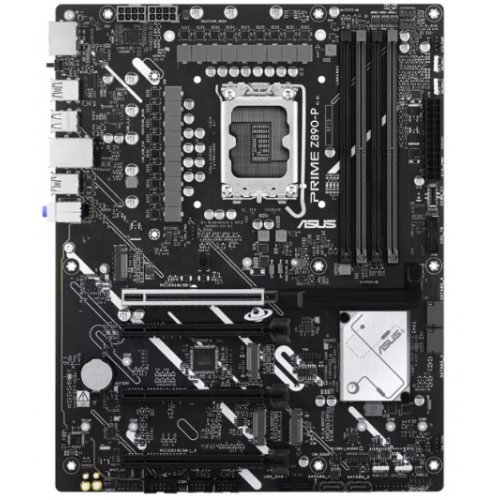

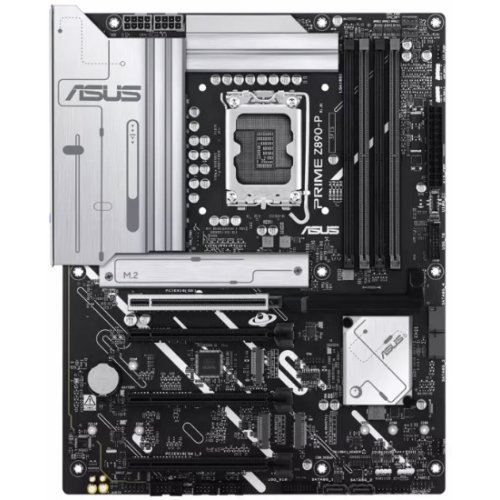

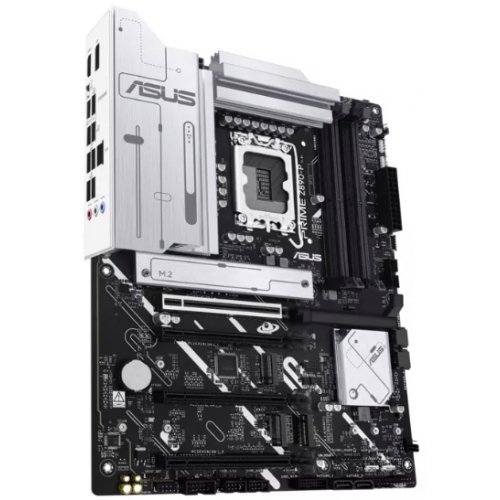

Дънна платка Asus Z890-P PRIME 90MB1I50-M0EAY0

Asus PRIME Z890-P
90MB1I50-M0EAY0

CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel Z890 Chipset

Memory
4x DIMM slots, max. 192GB, DDR5
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1x DisplayPort**
1x HDMITM port***
1x USB 20Gbps port (USB Type-C) supports DisplayPort video output****
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** Supports max. 4K@120Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots
Intel Core Ultra Processors (Series 2)*
1x PCIe 5.0 x16 slot

Intel Z890 Chipset
2x PCIe 4.0 x16 slots (support x4 mode)
1x PCIe 4.0 x16 slot (supports x1 mode)

Storage
Total supports 4x M.2 slots and 4x SATA 6Gb/s ports*
Intel Core Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Ethernet
1x Realtek 2.5Gb Ethernet
ASUS LANGuard

USB
Rear USB (Total 8 ports)
1x USB 20Gbps port (1x USB Type-C with DP Alt mode)
1x USB 10Gbps port (1x Type-A)
2x USB 5Gbps ports (2x Type-A)
4x USB 2.0 ports (4x Type-A)**
Front USB (Total 9 ports)
1x USB 10Gbps connector (supports USB Type-C)
2x USB 5Gbps headers support 4 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

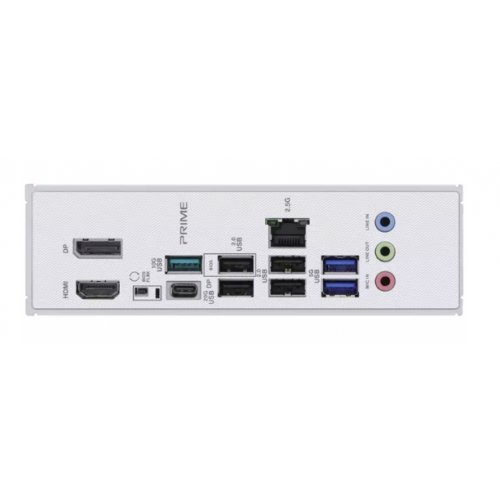

Back Panel I/O Ports
1x USB 20Gbps port (1x USB Type-C with DP Alt mode)
1x USB 10Gbps port (1x Type-A)
2x USB 5Gbps ports (2x Type-A)
4x USB 2.0 ports (4x Type-A)
1x DisplayPort
1x HDMITM port
1x Realtek 2.5Gb Ethernet port
3x Audio jacks
1x BIOS FlashBack button
Internal I/O Connectors
Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
Power related
1x 24-pin Main Power connector
2x 8-pin +12V CPU Power connector
Storage related
4x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB 10Gbps connector (supports USB Type-C)
2x USB 5Gbps headers support 4 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3x Addressable Gen2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (F_AUDIO)
1x S/PDIF Out header
1x SPI TPM header (14-1pin)
1x 10-1 pin Front PanelSystem header
1x Thunderbolt (USB4) header
Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
Power related
1x 24-pin Main Power connector
2x 8-pin +12V CPU Power connector
Storage related
4x M.2 slots (Key M)
4x SATA 6Gb/s ports

USB
1x USB 10Gbps connector (supports USB Type-C)
2x USB 5Gbps headers support 4 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3x Addressable Gen2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (F_AUDIO)
1x S/PDIF Out header
1x SPI TPM header (14-1pin)
1x 10-1 pin Front Panel System header
1x Thunderbolt (USB4) header

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost (Intel K-series Processors only)

BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor
ATX Form Factor
30.5 cm x 24.4 cm
