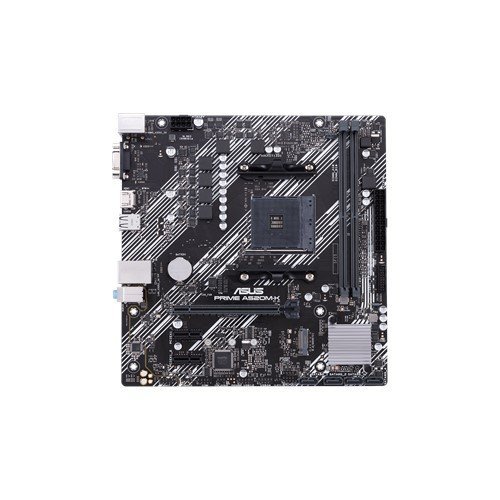

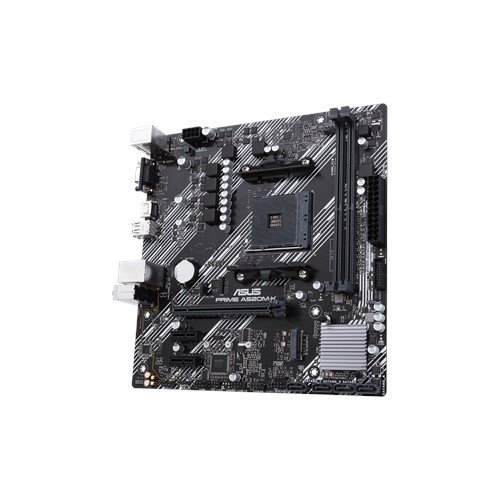

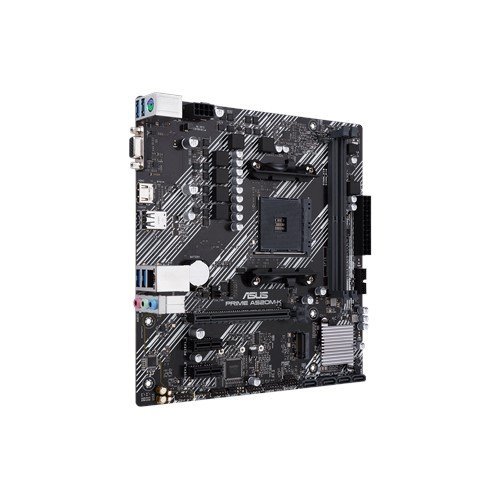

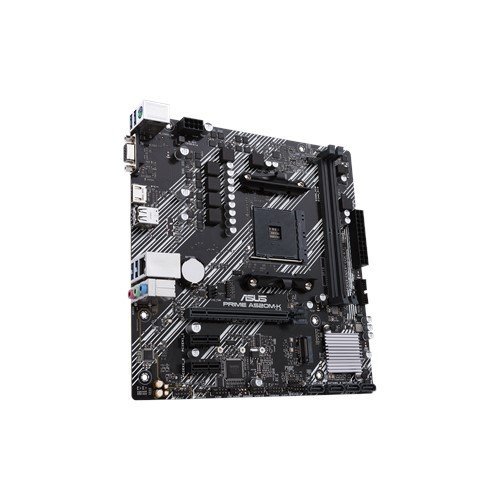

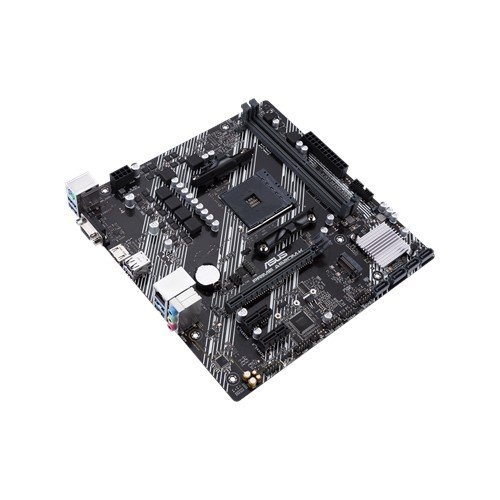

Дънна платка Asus PRIME A520M-K 90MB1500-M0EAY0

Продуктов код: 50817
Дънна платка Asus
Дънна платка Asus PRIME A520M-K 90MB1500-M0EAY0 Дънна платка Asus PRIME A520M-K 90MB1500-M0EAY0 Дънна платка Asus PRIME A520M-K 90MB1500-M0EAY0 Дънна платка Asus PRIME A520M-K 90MB1500-M0EAY0 Дънна платка Asus PRIME A520M-K 90MB1500-M0EAY0 Дънна платка Asus PRIME A520M-K 90MB1500-M0EAY0 Дънна платка Asus PRIME A520M-K 90MB1500-M0EAY0
Дънна платка Asus
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Asus
Модел:
PRIME A520M-K
Партиден номер:
90MB1500-M0EAY0
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
AMD A520
Брой слотове за памет:
2
RAM - поколение:
DDR4
Socket:
AMD AM4
Form Factor:
mATX
Видео изходи:
D-Sub(VGA), HDMI
Цена с включен ДДС:
128.02 лв.
Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА
  • Описание
  • Ревюта
  • Въпроси и отговори

Asus PRIME A520M-K

  • CPU
    Build in AMD AM4 Socket Processors *
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD A520
  • Memory
    2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.
  • Graphic
    1 x D-Sub
    1 x HDMI 2.1(4K@60HZ)
  • Expansion Slots
    3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
    1 x PCIe 3.0 x16 (x16 mode)
    AMD A520 Chipset
    2 x PCIe 3.0 x1
  • Storage
    Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
    3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
    AMD A520 Chipset :
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Realtek RTL8111H 1Gb Ethernet
    ASUS LANGuard
  • Audio
    Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    - Audio Shielding
    - Dedicated audio PCB layers
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  • USB Ports
    Rear USB Port ( Total 6 )
    4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)(4 x Type-A)
  • Software Features
    ASUS Exclusive Software
    Armoury Crate
    AI Suite 3
    - Performance and Power Saving Utility
    TurboV EVO
    EPU
    Digi+ VRM
    Fan Xpert
    - EZ update
    ASUS CPU-Z
    AI Charger
    DAEMON Tools
    Norton Anti-virus software (Free Trial for 60 days)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
  • ASUS Special Features
    ASUS 5X PROTECTION III
    - ASUS DIGI+ VRM
    - ASUS LANGuard
    - ASUS Overvoltage Protection
    - ASUS SafeSlot Core
    - ASUS Stainless-Steel Back I/O
    ASUS Q-Design
    - ASUS Q-DIMM
    - ASUS Q-Slot
    ASUS Thermal Solution
    - Aluminum heatsink design

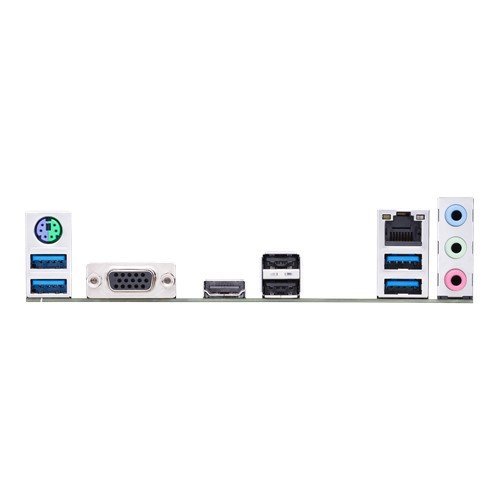

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.2 Gen 1 (blue) Type-A
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x SPI TPM header
    4 x SATA 6Gb/s connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x COM port header
    1 x Speaker connector

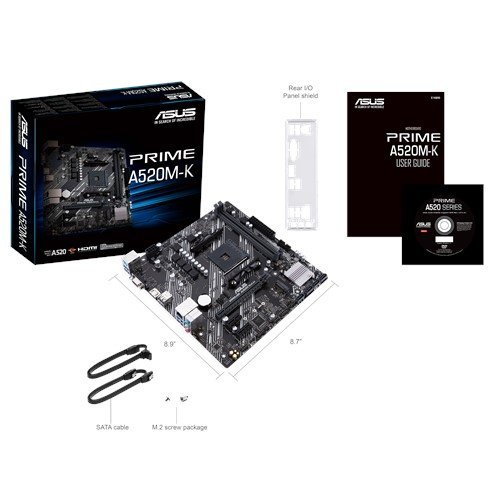

  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x M.2 SSD screw package(s)
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    mATX Form Factor
    8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )



https://www.asus.com/Motherboards/PRIME-A520M-K/
