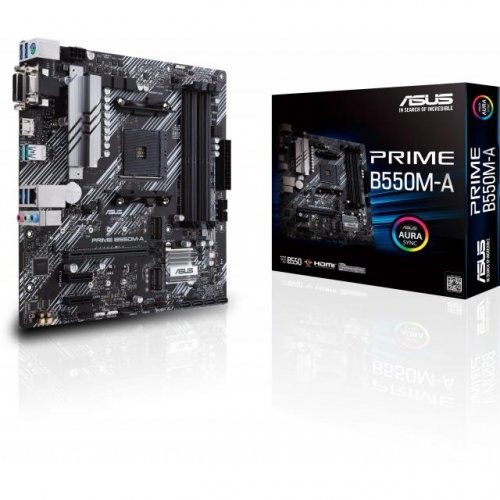

Дънна платка ASUS Prime B550M-A socket AM4, 4xDDR4, Aura Sync, PCIe 4.0, Dual M.2
PRIME
ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
- Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASUS |
| МОДЕЛ | Prime B550M-A |
| БАРКОД | 4718017755528 |
| CPU SOCKET | AM4 |
| ЧИПСЕТ | AMD B550 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
| ФОРМ ФАКТОР | Micro ATX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 128 GB |
| СЛОТОВЕ ПАМЕТ | 4 |
| ЧЕСТОТА ПАМЕТ | 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics |
| ВГРАДЕНО АУДИО | Realtek ALC887 |
| ВГРАДЕН LAN | Realtek RTL8111H chip (10/100/1000 Mbit), ASUS LAN Guard |
| СЛОТOВЕ PCI-E X16 | 1 x PCIe 4.0/3.0 x16 |
| СЛОТOВЕ PCI-E X1 | 2 |
| ИНТЕРФЕЙС SERIAL ATA | 4 x SATA3 6.0 Gb/s |
| М2 СЛОТ | 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode), 1 x M.2 Socket 3 with M Key type 2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSD support) |
| ПОДДРЪЖКА НА RAID | 0,1,10 |
| КОНЕКТОР ЗАХРАНВАНЕ | 1 x 24-pin, 1 x 8-pin |
| ВИДЕО СЛОТ | PCI Express |
| СВЪРЗАНОСТ | 1 x PS/2, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 2 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 1 x RJ-45, 3 x audio jack's |
| USB 3.2 | 6 |
| USB 2.0 | 2 |
| ПОДДЪРЖАНИ ТЕХНОЛОГИИ | ASUS Aura Sync |
| КОМПЛЕКТЪТ ВКЛЮЧВА | Ръководство, I/O Shield, 2 x SATA 6Gb/s кабели |
| ДРУГИ | Bios: 256 Mb Flash ROM, UEFI AMI BIOS |
