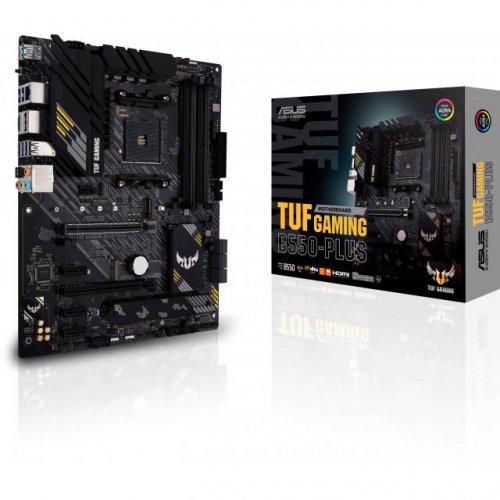

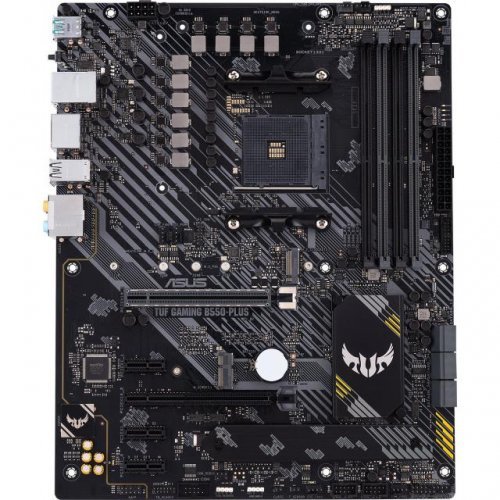

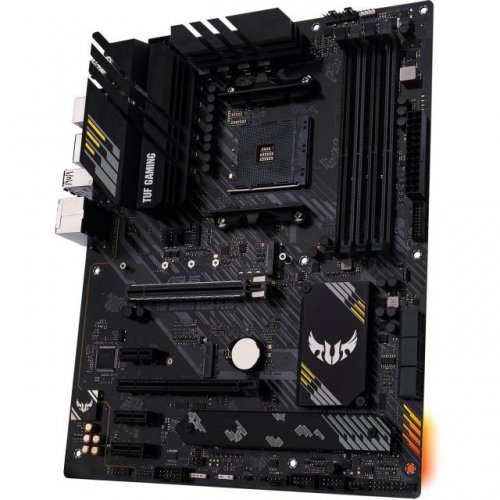

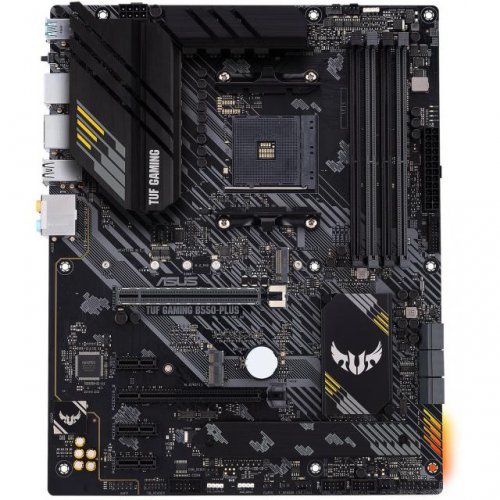

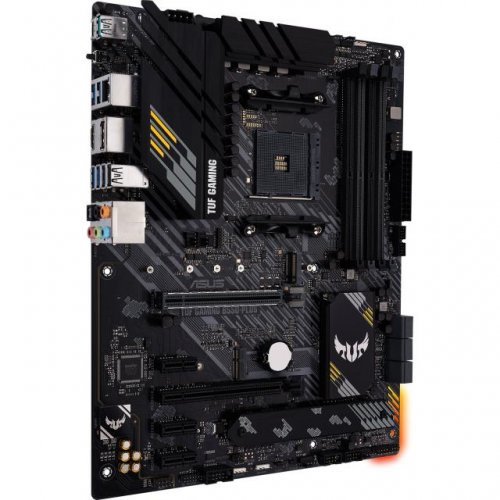

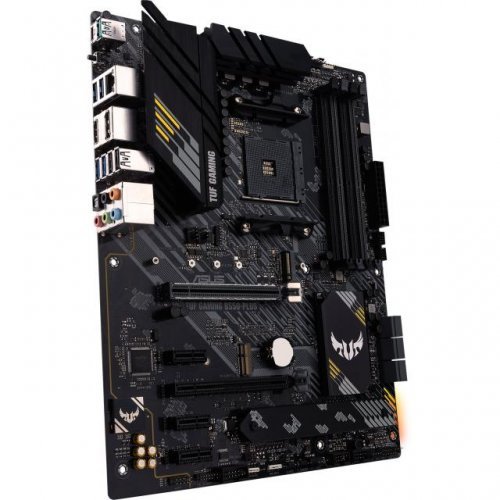

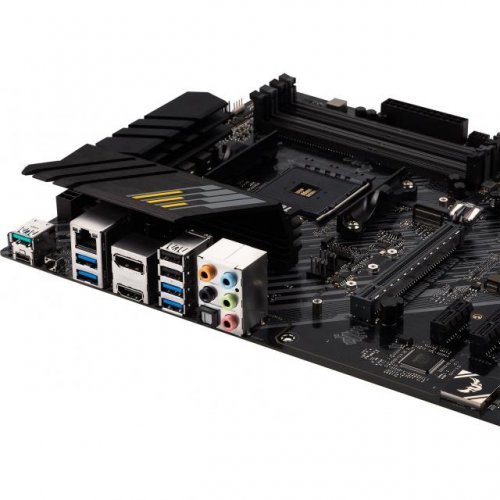

Дънна платка ASUS TUF B550-PLUS GAMING socket AM4, 4xDDR4, Aura Sync, PCIe 4.0, Dual M.2, 2.5GB Lan
DURABLE.STABLE.RELIABLE.
TUF Gaming B550-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI noise-canceling microphone: provides crystal-clear in-game voice communication
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASUS |
| МОДЕЛ | TUF B550-PLUS GAMING |
| БАРКОД | 4718017749435 |
| CPU SOCKET | AM4 |
| ЧИПСЕТ | AMD B550 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
| ФОРМ ФАКТОР | ATX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 128 GB |
| СЛОТОВЕ ПАМЕТ | 4 |
| ЧЕСТОТА ПАМЕТ | 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | - |
| ВГРАДЕНО АУДИО | Realtek® ALC S1200A 8-Channel High Definition Audio CODEC |
| ВГРАДЕН LAN | 1 x Realtek® Dragon RTL8125BG 2.5G LAN, TUF LANGuard |
| СЛОТOВЕ PCI-E X16 | 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0/2.0 x16 |
| СЛОТOВЕ PCI-E X1 | 3 |
| ИНТЕРФЕЙС SERIAL ATA | 6 x SATA3 6.0 Gb/s |
| М2 СЛОТ | 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 PCIE 3.0 x4 and SATA modes, 1 x M.2 Socket 3 with M Key type 2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSD support) |
| ПОДДРЪЖКА НА RAID | 0,1,10 |
| КОНЕКТОР ЗАХРАНВАНЕ | 1 x 24-pin, 1 x 8-pin |
| ВИДЕО СЛОТ | PCI Express |
| МУЛТИ GPU ТЕХНОЛОГИЯ | AMD 2-Way CrossFireX Technology |

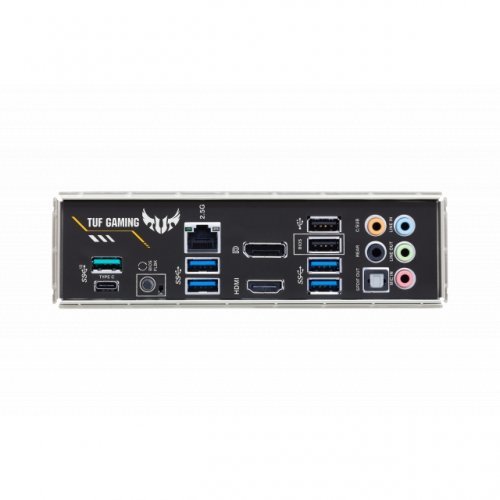

| СВЪРЗАНОСТ | 1 x HDMI, 1 x DisplayPort, 2 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x USB 2.0, 1 x 2.5G LAN (RJ45), 1 x Optical S/PDIF out, 5 x audio jacks |
| USB TYPCE-C | 1 |
| USB 3.2 | 5 |
| USB 2.0 | 2 |
| ПОДДЪРЖАНИ ТЕХНОЛОГИИ | ASUS Aura Sync |
| КОМПЛЕКТЪТ ВКЛЮЧВА | Ръководство, I/O Shield, 2 x SATA 6Gb/s кабели, 1 x TUF Sticker, Диск с драйвери |
| ДРУГИ | Bios: 256 Mb Flash ROM, UEFI AMI BIOS |
