Звукова карта Asus Xonar U7 MKII, 7.1 USB DAC with Headphone Amplifier

• True 7.1-channel, 192kHz/24-bit HD surround sound with a 114dB SNR from a compact, USB-powered device
• Integrated headphone amplifier boosts sound and reveals musical details
• Dedicated headphone and mic volume controls enable instant audio adjustments for better gaming and media streaming experiences
• Clickable volume control knob for convenient switching between headphone and speaker output
• Sonic Studio software suite with intuitive, single-screen interface and Sonic Radar Pro for mapping opponent locations in first-person shooters

Enjoy stunningly detailed audio with this plug-and-play USB sound card

Xonar U7 MKII is designed to provide the best audio experiences for PC gaming and media streaming. It delivers stunningly clear and impactful sound when listening with headphones or speakers that far surpasses onboard PC audio hardware. With convenient USB connectivity, Xonar U7 MKII gives you instantly upgraded sound quality without the need to open your PC case to install an internal sound card. Its USB design also eliminates the need for a separate power supply, so just connect one cable and start listening.

Powerful sound from a compact and portable device

Xonar U7 MKII engineering overcomes the space and power supply limitations of other external USB-based audio devices to offer precise and immersive 7.1-channel surround. Sound processing uses 192kHz/24-bit fidelity for true high definition output, maintaining consistent quality across all surround channels.

Digital to analog converter (DAC)

High quality Cirrus Logic® CS4398 DAC (digital-to-analog converter) brings clarity with excellent signal-to-noise ratio (SNR) and low total harmonic distortion (THD)

Integrated headphone amplifier pumps up every sound detail

Since many gamers choose to refrain from disturbing others while insisting on the best sound quality, Xonar teams integrate a headphone amplifier on Xonar U7 to boost immersive headphone output.

Designed for gaming and media streaming

Plug-and-play USB convenience

With its USB design, Xonar U7 MKII dramatically upgrades your PC's audio performance simply by plugging it in. It draws power directly from the USB port, eliminating the need for a separate power adapter. Its compact design fits almost anywhere and is easily portable, so you can bring it with your laptop and enjoy great-sound audio on the go.

Total Audio Control

Take full audio control with Sonic Studio

Xonar U7 MKII features the latest Sonic Studio software suite for full control over every sound technology, from equalization (EQ) to 7.1-speaker level-balancing. Sonic Studio has a single navigation page that puts everything in front of you, with an intuitive point-and-click interface that allows you to pre-set audio profiles to suit different audio requirements.

Gain the gaming edge with Sonic Radar Pro!

Fire up your favorite game and Sonic Radar Pro displays a ‘radar' HUD (heads-up display) that pinpoints in-game actions relative to your position, so you'll know exactly where you are on the battlefield and what's happening around you!

Works perfectly with Windows 10

Xonar U7 MKII is fully compatible with Windows 10, so you can enjoy the ultimate audio experience without any hassles.

• Audio Interface
  USB 2.0 high-speed/ USB 1.0 for playback
• Audio Performance
  Output Signal-to-Noise Ratio (A-Weighted):
  114 dB
  Input Signal-to-Noise Ratio (A-Weighted) :
  110 dB
  Output THD+N at 1kHz (Front-out) :
  >0.0006 %(104 dB)
  Frequency Response (-3dB, 24bit/96KHz input) :
  10 Hz to 46 KHz
  Output/Input Full-Scale Voltage :
  Line output (RCA, 3.5) : 1 Vrms (2.828 Vp-p)
  Headphone output : 1.3 Vrms (3.677 Vp-p)
• Chipset
  Audio Processor :C-Media USB2.0 6632AX High-Definition Sound Processor (Max. 192KHz/24bit)
• Digital-to-analog Converter(DAC)
  Cirrus Logic CS4398
  Cirrus Logic CS4362
• Sample Rate and Resolution
  Analog Playback Sample Rate and Resolution :
  44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
  Analog Recording Sample Rate and Resolution :
  44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
  S/PDIF Digital Output :
  44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit

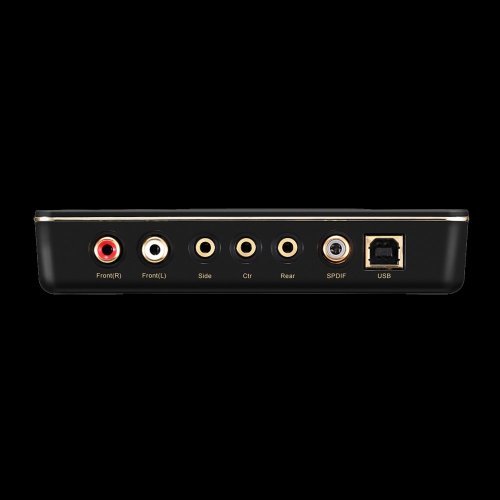

• Connectivity
  Analog Output
  4 x 3.5 mm jack (1/8") (Headphone out /Side out/Center-Subwoofer out/Rear out)
  2 x RCA (Un-Balanced)
  Analog Input
  1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
  Digital
  1 x S/PDIF out (1 x Coaxial)
• Special Features
  Sonic Studio
• Operating System
  Windows® 10 86x64
  Windows® 8.1 86x64
  Windows® 7 86x64
  Mac OS X
• Accessories
  S/PDIF adapter x 1
  Quick start guide x 1
  USB cable x 1
• Dimensions
  130 x 80 x 25 mm ( L x W x H )
• Note
  Xonar U7 MKII playback under OS X without any driver needed, just switch to USB Audio 2.0 on a Mac.
