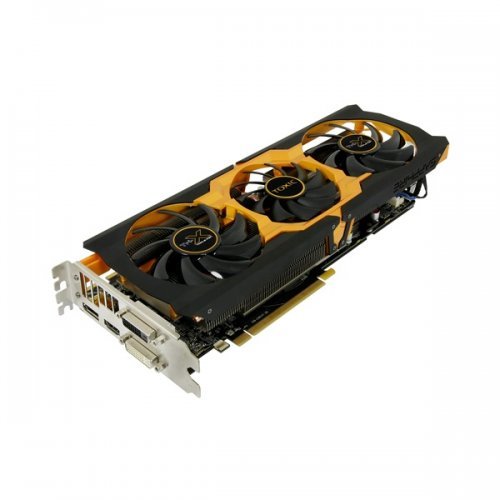

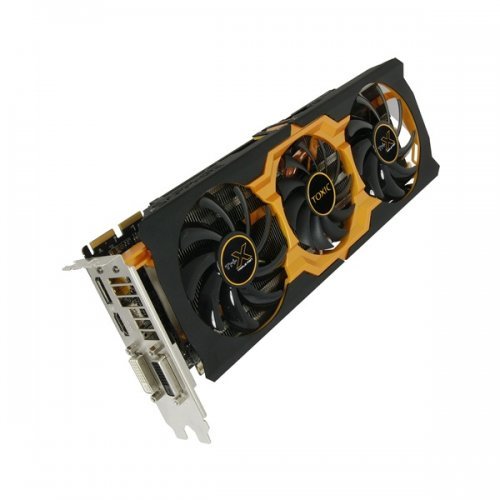

Ati Sapphire Toxic R9 270X OC with Boost, 2GB GDDR5, 256 bit, 1020MHz, 28nm chip, PCI-E 3.0, 2x DVI, HDMI, DisplayPort DP

SAPPHIRE TOXIC R9 270X 2GB GDDR5 WITH BOOST

• Display Support
Supports up to 4 display monitor(s) without DisplayPort
4 x Maximum Display Monitor(s) support

• Output
1 x HDMI (with 3D)
1 x DisplayPort
1 x Dual-Link DVI-D
1 x Dual-Link DVI-I


• GPU
1100/Boost:1150 MHz Core Clock
28 nm Chip
1280 x Stream Processors


• Video Memory
2048 MB Size
256 -bit GDDR5
6000 MHz Effective


• Dimension
308(L)X113(W)X41(H) mm Size.
2.2 x slot


• Software
Driver CD
SAPPHIRE TriXX Utility


• HDMI (with 3D)
• DisplayPort
• Dual-Link DVI-D
• Dual-Link DVI-I
• Advanced GDDR5 Memory Technology
• AMD Stream Technology
• AMD Avivo HD (DVD/HD-DVD/Blu-ray Playback)
• AMD CrossFireX™ Multi-GPU Technology
• Black Diamond Choke & Full Solid Cap Design
• AMD HD3D Technology
• 28 nm GCN (Graphic Core Next) Architecture
• PCI Express 3.0
• PCB Temperature LED
• SAPPHIRE Tri-X Cooling Technology
• Mantle
• DirectX® 11.2
• OpenGL 4.3
• AMD Catalyst Control Center™
• Dolby® TrueHD and DTSHD Master Audio™ Support
• Anti-aliasing features
• TriXX Utility
• Enhanced Unified Video Decoder 3 (UVD 3)
• Microsoft Office 2010
• AMD App Acceleration
• AMD PowerPlay with ZeroCore Power Technology
• AMD HD Media Accelerator
• Cutting-edge Quad HD display support (4K Support)
• AMD PowerTune technology (with Boost)
• Windows® 8/8.1 support
• Dual Firmware Support
• 5000 Hours long life Capacitor

Overview

HDMI (with 3D)

Support for Deep Color, 7.1 High Bitrate Audio, and 3D Stereoscopic, ensuring the highest quality Blu-ray and video experience possible from your PC.


DisplayPort

Enjoy the benefits of the latest generation display interface, DisplayPort. With the ultra high HD resolution, the graphics card ensures that you are able to support the latest generation of LCD monitors.


Dual-Link DVI-D

Equipped with the most popular Dual Link DVI (Digital Visual Interface), this card is able to display ultra high resolutions of up to 2560 x 1600 at 60Hz.


Dual-Link DVI-I

Equipped with the most popular Dual Link DVI (Digital Visual Interface), this card is able to display ultra high resolutions of up to 2560 x 1600 at 60Hz.


Advanced GDDR5 Memory Technology

GDDR5 memory provides twice the bandwidth per pin of GDDR3 memory, delivering more speed and higher bandwidth.


AMD Stream Technology

Accelerate the most demanding applications with AMD Stream technology and do more with your PC. AMD Stream Technology allows you to use the teraflops of compute power locked up in your graphics processer on tasks other than traditional graphics such as video encoding, at which the graphics processor is many, many times faster than using the CPU alone.


AMD Avivo HD (DVD/HD-DVD/Blu-ray Playback)

Watch the hottest Blu-ray movies or other HD content at full 1080p display resolution and beyond and enjoy a more feature rich experience with enhanced Unified Video Decoder(UVD)


AMD CrossFireX™ Multi-GPU Technology


Triple or Quadruple gaming power with AMD CrossFireX™ Multi-GPU Technology.AMD CrossFireX technology supports up to four graphics cards to be used in a single system.



Black Diamond Choke & Full Solid Cap Design


Choke is an important component of the graphics card. By working with the component engineer, Sapphire’s patent pending choke is 10% cooler and offers 25% more power efficiency than a normal choke. The graphics card will be more reliable and save energy.
Improved reliability and better overclocking are possible by using only high-polymer, aluminum capacitors which posses far superior characteristics than regular aluminum capacitor for a longer product life. When operational temperatures drop by 20°C, the product life span is extended by a factor of ten, when the operational temperature increases by 20°C, the product life span only decreases by 10%.



AMD HD3D Technology

Enjoy the most immersive experience possible with full support for High Definition Stereoscopic 3D, a technique that presents 2D images (movies, games, photos) in a format that creates the illusion of three-dimensional depth when using compatible 3D displays / glasses / software.


28 nm GCN (Graphic Core Next) Architecture

The new 28nm GCN Architecture’s more efficient process technology puts more transistors in less space, enabling a dramatic increase in processing power


PCI Express 3.0

PCI-Express 3.0 delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU (GPU communication-up to 16GB/sec in each direction), maximizing the performance from your GPU when paired with the latest platforms.


PCB Temperature LED


Built in onboard LED for users to monitor the PCB temperature.




SAPPHIRE Tri-X Cooling Technology


Sapphire exclusive Triple fan design pushes out the heat more efficiently than standard dual fan.



Mantle


Properly enabled games will reach new heights of performance by speaking the language of Graphics Core Next architecture.


DirectX® 11.2

The tessellation performance on AMD Radeon R7/ R9 series is up to 2X faster than the previous generation, and DirectCompute performance is also faster to accelerate advanced post-processing, filtering, and anti-aliasing techniques. Direct X11 games has never looked this good.


OpenGL 4.3

OpenGL 4.3 improves the GPU efficiency by improving the shader process operation and capturing GPU tessellated geometry. The process of modifying an arbitrary subset of compress texture is also simplified. The memory management in handling shaders is more efficient as well.


AMD Catalyst Control Center™

The AMD Catalyst Control Center™ software application gives you complete control over the performance and visual quality of your SAPPHIRE AMD Radeon™ based graphics card allowing for the best experience on your PC.


Dolby® TrueHD and DTSHD Master Audio™ Support

Support for copy protected, high bandwidth, 7.1 channel surround sound over HDMI. Get a fully immersive, high definition audio experience with the latest Blu-ray movies. (Requires a DVI to HDMI dongle on some models, an HD capable monitor and a Blu-ray drive)


Anti-aliasing features

Supports advanced AA (Anti-aliasing) features to maximise your enjoyment of high definition gaming.
Multi-sample anti-aliasing (2, 4 or 8 samples per pixel)
Up to 24x Custom Filter Anti-Aliasing (CFAA) for superior quality
Adaptive super-sampling and multi-sampling
Gamma correct
Super AA (AMD CrossFireX™configurations only)
All anti-aliasing features compatible with HDR rendering



TriXX Utility

TriXX helps users to get the optimum performance from compatible SAPPHIRE graphics cards in any application by allowing them to monitor, tune and save different settings of key parameters for the card.


Enhanced Unified Video Decoder 3 (UVD 3)


Watch the hottest Blu-ray movies or other HD content at full 1080p (and beyond !) display resolution. Enjoy a feature rich video experience with enhanced Unified Video Decoder 3 (UVD 3), offloading the bulk of the video decoding tasks from the CPU to the GPU allowing for a cooler, quieter and more balanced system.



Microsoft Office 2010


Take advantage of improved picture and media editing capabilities in Office 2010 as well as edit and share your content in real time.

See more, and get more done. Enhanced productivity with accelerated GPU processing for Office applications.



AMD App Acceleration

AMD App Acceleration is a set of technologies designed to improve video quality and enhance application performance. Full enablement of some features requires support for OpenCL, DirectCompute or DirectX Video Acceleration (DXVA).


AMD PowerPlay with ZeroCore Power Technology


AMD PowerPlay is a power management technology in response to the GPU loading, AMD PowerPlay automatically manages the power consumption.
AMD ZeroCore Power technology allows your AMD Radeon™ GPU to consume virtually no power when in idle state5. When used with AMD CrossFire™ technology, it shuts down additional GPUs when they’re not in use.



AMD HD Media Accelerator

AMD HD Media Accelerator has been designed to help optimize and dramatically improve video playback on your computer by taking advantage of hardware video acceleration from your AMD Radeon GPU. With full 3D stereoscopic decode you can enjoy it all in 3D. AMD HD Media Accelerator speeds up the decode of one 1080p and one 1080i HD video streams simultaneously by hardware, and the new hardware encodes/transcoder processes your media content faster than ever!


Cutting-edge Quad HD display support (4K Support)

The display resolution on AMD Radeon HD7000 series is quadrupled to the resolution of 4KX2K( 4096X2160 ) from the outputs of DisplayPort 1.2 and HDMI.


AMD PowerTune technology (with Boost)


AMD PowerTune technology (with Boost) is a breakthrough technology that sets an entirely new direction for maximum performance at TDP. It allows the GPU to be designed with higher engine clock speeds which can be applied on the broad set of applications that have thermal headroom.
In HD 7900 series, AMD PowerTune technology enables intelligent power monitoring to enable higher clock speeds and better performance in your favorite games





Windows® 8/8.1 support

WHQL (Windows Hardware Quality Labs) Certified drivers and logos are available for SAPPHIRE cards ensuring compatibility and reliability with Microsoft Windows 8/8.1.


Dual Firmware Support

This product supports both Legacy and UEFI BIOS. By factory default, the card itself is under Legacy mode.
By pressing the button with SAPPHIRE logo, UEFI mode will be easily enabled.

Pros to enable UEFI mode:



5000 Hours long life Capacitor

System Requirements
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
4X75 Watt 6-pin PCI Express power connector is required for CrossFireX™ system.
2X75 Watt 6-pin PCI Express power connector is required.
4096MBMinimum of system memory.
Installation software requires CD-ROM drive.
DVD playback requires DVD drive.
Blu-ray™ / HD DVD playback requires Blu-ray / HD DVD drive.
500 Watt Power Supply is required.
600WattPower Supply is recommended for CrossFireX™ System.
64-bit operating system highly recommended
