SYSTEM POWER 9
500W
PROVEN RELIABILITY AND GOOD EFFICIENCY
be quiet! System Power 9 500W offers renowned be quiet! reliability and quietness for price-conscious PC builders.
VERY QUIET OPERATION
Attained by using a high-quality fan
System Power 9 500W is equipped with a temperature-controlled 120mm fan. It provides you with the low noise operation that be quiet! is famous for, built into an entry-level system.
80PLUS® BRONZE CERTIFICATION
High operating efficiency
The 80PLUS® Bronze certification is convincing evidence of this PSU’s efficient and power saving operation. It is a remarkable achievement for this class of PSU, realizing an efficiency rating of up to 89%.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 9 500W provides stable and dependable power for CPU and GPU. It is equipped with two independent 12V-rails and supports several graphics cards with two PCI express connectors for multi-GPU systems.
INNOVATIVE DC-TO-DC CONVERSION
Equipped with a wealth of advanced technology
The PSU is equipped with DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions. This ensures reliable operation and makes it ready for the next generation of processors and graphics cards.
HIGH-QUALITY CABLE DESIGN
Attractive design for high performance, cost-effective systems
System Power 9 500W comes with full high-quality black sleeved cables that add a touch of class to any PC system.
COMPREHENSIVE PROTECTION
A complete range of safety features
Top component protection with a full suite of safety functions, including OCP, OVP, OPP, OTP UVP and SCP, which provide the ultimate in secure operation.
Model |
System Power 9 | 500W |
Continuous power (W) |
500 |
Peak power (W) |
- |
Form factor ATX 12V |
Version 2.4 |
Form factor EPS 12V |
- |
Modular cable management |
- |
Topology |
DC-DC |
Wire-free design (DC-side) |
- |
Voltage (Vac) |
200-240 |
Frequency (Hz) |
50 |
Input current (A) |
4 |
PFC |
active |
Power factor at 100% load |
>0.95 |
Compliant to Intel C6/C7 |
✓ |
Power consumption in standby (W) |
<0.15 |
Average life time (h / 25°C) |
100.000 |
Operating temperature up to (°C) |
40 |
Output
12V rails (multi-rail operation) |
2 |
12V single rail operation |
- |
Overclocking key |
- |
+3.3V (A) |
24 |
+5V (A) |
15 |
+12V1 (A) |
24 |
+12V2 (A) |
20 |
+12V3 (A) |
- |
+12V4 (A) |
- |
+12V5 (A) |
- |
+12V6 (A) |
- |
-12V (A) |
0.3 |
+5Vsb (A) |
3 |
Max. combined power 12V (W) |
456 |
Max. combined power 3.3V + 5V (W) |
110 |
Hold-up time (ms @ 100%) |
17 @ 75% load |
Fan / Cooling technology
Fan type |
high-quality fan |
+SilentWings |
- |
Motor technology |
4-pole fan motor |
Bearing technology |
Sleeve |
Fan size (mm) |
120 |
Max. fan speed (rpm), temperature-dependent |
2,100 |
Temperature control for case fans |
- |

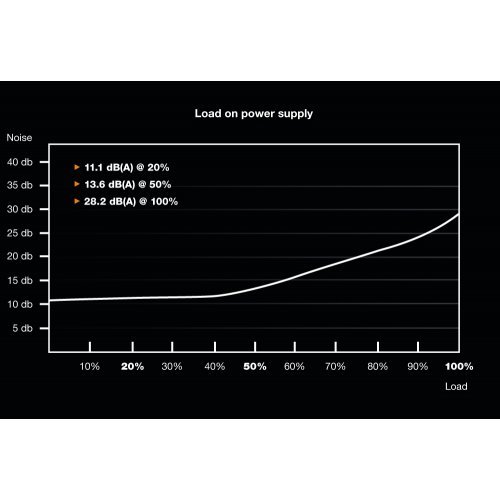

dB(A) at 20% load |
11.1 |
dB(A) at 50% load |
13.6 |
dB(A) at 100% load |
28.2 |
Protection
OCP (over current protection) |
✓ |
OVP (over voltage protection) |
✓ |
UVP (under voltage protection) |
✓ |
SCP (short circuit protection) |
✓ |
OTP (over temperature protection) |
✓ |
OPP (over power protection) |
✓ |
Safety certification
CE |
✓ |
CB |
✓ |
TÜV |
✓ |
Nemko (N) |
- |
Semko (S) |
- |
Fimko (FI) |
- |
Demko (D) |
- |
FCC |
- |
cRUus |
- |
cTUVus |
- |
RCM (Australia) |
✓ |
BSMI |
- |
CU (Russia) |
✓ |
Eco / Efficiency
80PLUS certification |
Bronze (230V EU internal) |
Efficiency (%) at 230V, 20% load |
87 |
Efficiency (%) at 230V, 50% load |
89 |
Efficiency (%) at 230V, 100% load |
86 |
Environmental directives
ENERGY STAR |
6.1 |
ErP |
✓ |
WEEE |
✓ |
RoHS |
✓ |
Cable management / Connectors
Multi-GPU ready |
✓ |
Modular cable management |
- |
Fully modular |
- |
Sleeved cables |
✓ |
Flat cables |
- |
Cable length to mainboard (cm) |
55 |
Cable length to first connector (cm) |
35 |
Maximum cable length (cm) |
91 |
All-in-one cable (SATA/PATA/FDD) |
- |
No. of cables |
5 |
ATX-Motherboard (20+4-pin) |
1 |
P8 (CPU) |
- |
P4+4 (CPU) |
1 |
P4 (CPU) |
- |
PCI-E 6-pin (GPU) |
- |
PCI-E 6+2-pin (GPU) |
2 |
PATA 4 pin |
2 |
SATA 15-pin (HDD, Drives) |
6 |
FDD (Floppy) |
- |
Mainboard connector (PATA 4-pin) |
2 |
External fan connectors |
- |
Casing
Dimensions without cable (L x W x D), (mm) |
140 x 150 x 86 |
Weight (kg) |
1.92 |
Color |
black |
Accessories
Thumb screws |
- |
Screws |
✓ |
Cable ties |
- |
Velcro cable ties |
- |
AC power cord (mm) |
1.500 |
Box/Bag for PSU/Cables |
- |
User manual languages |
EN, DE, FR, PL, ES, RU |
OCK slot bracket with switch / OCK jumper |
- |
SFX-to-ATX adapter bracket |
- |
Service
Warranty (Years) |
3 |
Express replacement service in first year |
- |
International hotline / free of charge |
✓ / DE, FR |
Logistics data, RRP
Range |
System Power |
Article number |
BN246 |
EAN code |
4260052186053 |
Dimensions, package (L x W x H), (mm) |
268 x 97 x 195 |
Gross weight, package (kg) |
2.16 |
Pieces per packaging unit |
6 |
Dimensions, shipping box (L x W x H), (mm) |
215 x 311 x 556 |
Gross weight, shipping box (kg) |
13.5 |
RRP (€) |
61.90 |
