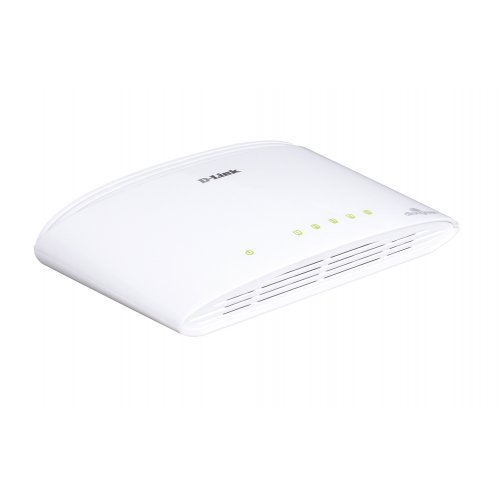

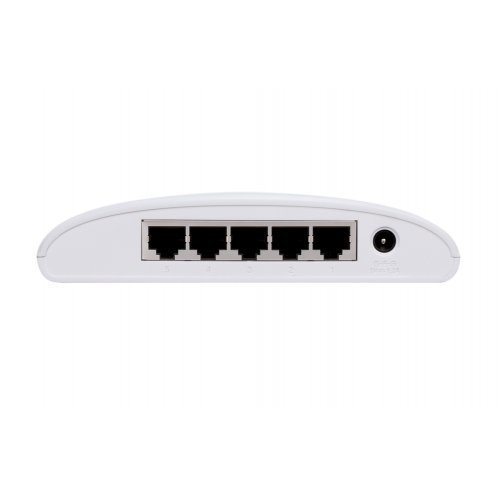

D-Link DGS-1005D, 5-Port Gigabit Unmanaged Desktop Switch

The DGS-1005D 5-Port Gigabit Switch offers an economical way for SOHO and small to medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.

Fast Gigabit Networking

With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the switch is ideal for transferring files quickly and online gaming. The switch features QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming.

Think Green

The D-Link 5-Port Gigabit Switch is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, in which the switch will proceed to power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and only using as much power as is necessary. Both of these features work together to help you save power automatically.

Environmentally Friendly

The switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. The switch is built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmentally friendly.

IEEE 802.1p QoS

QoS prioritizes network traffic so that time sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media, VoIP calls, and online gaming.

Cable Diagnostics Function

The D-Link Cable Diagnostics Function enables users to efficiently detect cable conditions through the LED display on the front-panel. Users can determine whether the pin connections of their cables’ connectors are correct, facilitating network troubleshooting.

Key Features

• ƒƒBuilt-in D-Link Green Technology
• ƒƒInexpensive Gigabit solution for Home/SOHO
• ƒƒFive 10/100/1000 Mbps Gigabit ports
• ƒƒ10 Gbps switching fabric
• ƒƒAuto MDI/MDIX crossover for all ports
• ƒƒSecure store-and-forward switching scheme
• ƒƒFull/half-duplex for Ethernet/Fast Ethernet speeds
• ƒƒIEEE 802.3x Flow Control
• ƒƒSupports 9,000 Byte Jumbo Frames
• ƒƒSupports IEEE 802.1p QoS (4 Queues, Strict Mode)
• ƒƒSupports Cable Diagnostics Function
• ƒƒRoHS compliant
• ƒƒPlug-and-play installation

Standards

• ƒƒIEEE 802.3 10BASE-T Ethernet (twistedpair copper)
• ƒƒIEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• ƒƒIEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
• ƒƒANSI/IEEE 802.3 NWay auto-negotiation
• ƒƒIEEE 802.3x Flow Control
• ƒƒIEEE 802.1p QoS
• ƒƒIEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol

• ƒƒCSMA/CD

Data Transfer Rates

• ƒƒEthernet:
  • ƒƒ10 Mbps (half duplex)
  • ƒƒ20 Mbps (full duplex)
• ƒƒFast Ethernet:
  • ƒƒ100 Mbps (half duplex)
  • ƒƒ200 Mbps (full duplex)
• ƒƒGigabit Ethernet:
  • ƒƒ2000 Mbps (full duplex)

Topology

• ƒƒStar

Network Cables

• ƒƒ10BASE-T:
  • ƒƒUTP CAT 3, 4, 5/5e (100 m max.)
  • ƒƒEIA/TIA-586 100-ohm STP (100 m max.)
• ƒƒ100BASE-TX, 1000BASE-T:
  • ƒƒUTP CAT 5/5e (100 m max.)
  • ƒƒEIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

• ƒƒAuto MDI/MDIX adjustment for all ports

LED Indicators

• ƒƒPer port: Link/Activity/Speed
• ƒƒPer device: Power

Transmission Method

• ƒƒStore-and-forward

MAC Address Table

• ƒƒ8K entries per device

MAC Address Learning

• ƒƒAutomatic update

Packet Filtering/Forwarding Rates

• ƒƒEthernet: 14,880 pps per port
• ƒƒFast Ethernet: 148,800 pps per port
• ƒƒGigabit Ethernet: 1,488,000 pps per port

RAM Buffer

• ƒƒ128 KBytes per device

DC Input

• ƒƒExternal 5 V/1 A Power Adapter

Power Consumption

• ƒƒPower On (Standby):
  • ƒƒDC input: 0.86 watts
  • ƒƒAC input: 1.7 watts
• ƒƒMaximum:
  • ƒƒDC input: 2.67 watts
  • ƒƒAC input: 4.3 watts

Heat Dissipation

• ƒƒPower On (Standby): 5.8 BTU/h
• ƒƒMaximum: 14.67 BTU/h

MTBF

• ƒƒ748,420 hours

Operating Temperature

• ƒƒ0 to 40 ˚C (32 to 104 ˚F)

Storage Temperature

• ƒƒ-10 to 70 ˚C (14 to 158 ˚F)

Operating Humidity

• ƒƒ10% to 90% RH non-condensing

Storage Humidity

• ƒƒ5% to 90% RH non-condensing

Device Dimensions (W x D x H)

• ƒƒ144.2 x 100.2 x 32.6 mm (5.7 x 4.0 x 1.3 inches)

Certifications

• ƒƒFCC Class B
• ƒƒICES-003 Class B
• ƒƒCE Class B
• ƒƒC-Tick Class B
• ƒƒVCCI Class B
• ƒƒcUL
• ƒƒCB
