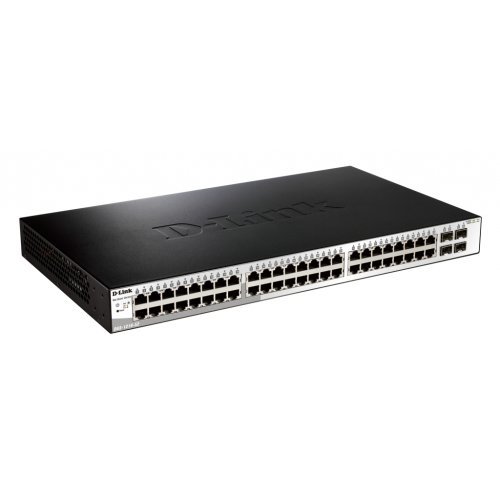

D-Link DGS-1210-52, Gigabit Smart+ Managed Switche

Product Comparison

	No. of ports	No. of PoE ports	PoE Power Budget
DGS-1210-10	10
DGS-1210-10P	10	8	78 W
DGS-1210-20	20
DGS-1210-28	28
DGS-1210-28P	28	24	193 W
DGS-1210-52	52
DGS-1210-52P	52	24	193 W
DGS-1210-52MP	52	48	370W

Features

Green Technology

• Power saving via the following features:
  • Link Status detection
  • LED Shut-Off
  • Port Shut-Off
  • System Hibernation
  • Time-based PoE (DGS-1210-10P/28P/52P/52MP only)

Security Features

• Access Control List secures network
• D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding
• Port Security supports 64 MACs per port
• ARP Spoofing Prevention

Intuitive Management

• D-Link Network Assistant Utility or Web-based GUI
• Built-in SNMP MIB for remote NMS (D-View 6.0)
• Compact CLI through Telnet

Advanced Features

• Auto Surveillance VLAN
• Loopback Detection automatically disables a port when a loop is detected
• Cable Diagnostics allows administrators to determine cable status
• SFP ports for flexibility
• Auto MDI/MDIX

Interface

Number of 10/100/1000BASE-TX ports

• DGS-1210-10/10P - 8 ports
• DGS-1210-20 - 16 ports
• DGS-1210-28/28P - 24 ports
• DGS-1210-52/52P/52MP - 48 ports

Number of SFP ports

• DGS-1210-10/10P - 2 ports
• DGS-1210-20/28/28P/52/52P/52MP - 4 ports

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)

• DGS-1210-10P (802.3af/802.3at/8 ports/78W)
• DGS-1210-28P (802.3af/802.3at/24 ports/193W)
• DGS-1210-52P (802.3af/802.3at/24 ports/193W)
• DGS-1210-52MP (802.3af/802.3at/52 ports/370W)

Performance

Switch Capacity

• DGS-1210-10/10P - 20 Gbps
• DGS-1210-20 - 40 Gbps
• DGS-1210-28/28P - 56 Gbps
• DGS-1210-52/52P/52MP - 104 Gbps

64-Byte Packet Forwarding Rate

• DGS-1210-10/10P - 14.88 Mpps
• DGS-1210-20 - 29.8 Mpps
• DGS-1210-28/28P - 41.7 Mpps
• DGS-1210-52/52P/52MP - 77.4 Mpps

MAC Address Table Size

• 16K

Packet Buffer

• DGS-1210-10P - 1 MB per device
• DGS-1210-10/20/28/28P - 1.5 MB per device
• DGS-1210-52/52P/52MP - 3 MB per device

Jumbo Frame

• Up to 9,216 Bytes

Physical & Environmental

Power Consumption (Standby/Maximum)

• DGS-1210-10 - 9.4W / 13.59W
• DGS-1210-10P - 17.9W / 103.4W (PoE on)
• DGS-1210-20 - 8.8W / 16.9W
• DGS-1210-28 - 17.84W / 22.45W
• DGS-1210-28P - 26.3W / 251.3W (PoE)
• DGS-1210-52 - 29.49W / 38.27W
• DGS-1210-52P - 46.50W / 270.2W (PoE)
• DGS-1210-52MP - 48.9W / 483.1W (PoE)

Power Input

• 10 to 240 VAC, 50/60HZ internal universal power supply

Dimensions (W x D x H)

• DGS-1210-10 - 280 x 126 x 44 mm
• DGS-1210-10P - 280 x 180 x 44 mm
• DGS-1210-20 - 280 x 180 x 44 mm
• DGS-1210-28 - 440 x 140 x 44 mm
• DGS-1210-28P - 440 x 210 x 44 mm
• DGS-1210-52 - 440 x 210 x 44 mm
• DGS-1210-52P - 440 x 430 x 44 mm
• DGS-1210-52MP - 440 x 430 x 44 mm

Weight

• DGS-1210-10 - 1.54 kg
• DGS-1210-10P - 1.86 kg
• DGS-1210-20 - 1.28 kg
• DGS-1210-28 - 1.67 kg
• DGS-1210-28P - 2.54 kg
• DGS-1210-52 - 2.58 kg
• DGS-1210-52P - 5.66 kg
• DGS-1210-52MP - 5.78 kg

Ventilation

• DGS-1210-10 - faneless
• DGS-1210-10P - fanless
• DGS-1210-20 - fanless
• DGS-1210-28 - fanless
• DGS-1210-28P - smart fans
• DGS-1210-52 - smart fans
• DGS-1210-52P - smart fans
• DGS-1210-52MP - smart fans

Heat Dissipation

• DGS-1210-10 - 46.37 BTU per hour
• DGS-1210-10P - 330.96 BTU per hour
• DGS-1210-20 - 54.91 BTU per hour
• DGS-1210-28 - 76.56 BTU per hour
• DGS-1210-28P - 840.89 BTU per hour
• DGS-1210-52 - 130.58 BTU per hour
• DGS-1210-52P - 912.96 BTU per hour
• DGS-1210-52MP - 1648.23 BTU per hour

Temperature

• Operating: -5° to 50°C (23° to 112°F)
• Storage: -20° to 70°C (-4° to 158°F )

Humidity

• Operating: 0% ~ 95% non-condensing
• Storage: 0% ~ 95% non-condensing

Certification

• CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick

Software Feature

L2 Features

• MAC Address Table
  • 16K entries
• IGMP Snooping
  • IGMP v1/v2 Snooping
  • Supports 256 IGMP groups
  • Supports at least 64 static multicast addresses
  • IGMP per VLAN
  • Supports IGMP Snooping Querier
• Loopback Detection
• 802.3ad Link Aggregation:
  • DGS-1210 28/28P:  Maximum of 14 groups/8 ports per group
  • DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group
  • DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
• LLDP
• LLDP-MED
• Jumbo Frame
  • Up to 9,216 bytes
• Spanning Tree Protocol
  • 802.1D STP
  • 802.1w RSTP
• Flow Control
  • 802.3x Flow Control
  • HOL Blocking Prevention
• Port Mirroring
  • One-to-One
  • Many-to-One
  • Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
  • Forwards all unregistered groups
  • Filters all unregistered groups
• Configurable MDI/MDIX
  • MLD snooping v1/v2 (256 groups)

VLAN

• 802.1Q
• VLAN Group
  • Max. 256 static VLAN groups
• Configurable VID from 1 - 4094
• Asymmetric VLAN
• Auto Voice VLAN
  • Max. 10 user-defined OUI
  • Max. 8 default OUI
• Auto Surveillance VLAN

Quality of Service (QoS)

• 802.1p Quality of Service
• 8 queues per port
• Queue Handling
  • Strict
  • Weighted Round Robin (WRR)
• Bandwidth Control
  • Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
• QoS based on:
  • 802.1p Priority Queues
  • DSCP
  • ToS
  • IPv6 Traffic Class
  • TCP/UDP port

L3 Features

• IP Interface
  • Supports 1 interface
• IPv6 Neighbor Discovery (ND)

Access Control List (ACL)

• Max. 50 access list
• Max. 768 rules shared by IPv4, MAC and IPv6
• Each rule can only be associated with a single port
• ACL based on
  • 802.1p priority
  • VLAN
  • MAC address
• Ether type
• IP address
• DSCP
• Protocol type
• TCP/UDP port number
• IPv6 Traffic Class

Security

• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• DHCP Server Screening
• IP-MAC-Port Binding (Smart Binding)
  • Supports 512 address binding entries
  • ARP Inspection
  • ARP + IP Inspection
  • Supports DHCP Snooping
• 802.1X Port-based Access Control
• ARP Spoofing Prevention
  • Max. 64 entries
• Traffic Segmentation
• SSH v2
• SSL
  • Supports v1/v2/v3
• Port Security
  • Supports up to 64 MAC addresses per port
• Duplicate address detection

AAA

• 802.1X Authentication
  • Supports local/RADIUS database
  • Supports port-based access control
  • Supports EAP, OTP, TLS, TTLS, PEAP
• IPv6 RADIUS Server
• Support MD5 authentication

MIB/RFC Standards

• RFC 783 TFTP
• RFC 951 BootP/DHCP Client
• RFC 1157 SNMP v1, v2, v3
• RFC 1213 MIB II
• RFC 1215 MIB Traps Convention
• RFC 1350 TFTP
• RFC 1493 Bridge MIB
• RFC 1769 SNTP
• RFC 1542 BootP/DHCP Client
• RFC 1901 SNMP v1, v2, v3
• RFC 1907 SNMP v2 MIB
• RFC 1908 SNMP v1, v2, v3
• RFC 2131 BootP/DHCP Client
• RFC 2138 RADIUS Authentication
• RFC 2139 RADIUS Authentication
• RFC 2233 Interface Group MIB
• RFC-2246 SSL
• RFC 2475
• RFC 2570 SNMP v1, v2, v3
• RFC 2575 SNMP v1, v2, v3
• RFC 2598 CoS
• RFC 2618 RADIUS Authentication
• RFC 2819 RMON v1
• RFC 2865 RADIUS Authentication
• RFC 3164 System Log
• RFC 3195 System Log
• RFC 3411-17 SNMP
• D-Link Private MIB
• LLDP MIB
• Zone Defense MIB
• 2233 Interface Group MIB

OAM

• Cable Diagnostics
• Factory Reset

Management

• Web-based GUI
• D-Link Network Assistant Utility
• Compact CLI
• Telnet Server
• TFTP Client
• Configurable MDI/MDIX
• SNMP
  • Supports v1/v2c/v3
• SNMP Trap
• Backup/Upgrade firmware
• Smart Wizard
• Upload/Download Configuration file
• System Log
  • Max. 500 log entries
• BootP/DHCP Client
• SNTP
• ICMP v6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• Time Setting
  • SNTP
• RMONv1
• Trusted Host

Green V3.0 Technology

• Power Saving by:
  • Link Status
  • Time-based PoE: PoE ports can be turned on/off by port or system through schedule
  • LED Shutoff
  • System Hibernation
  • Port Shutoff
