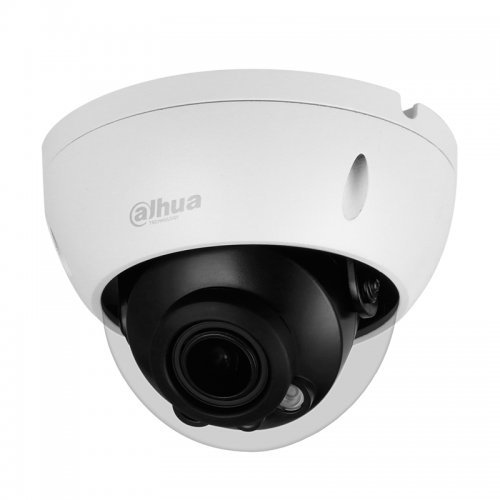

IP камера Dahua IPC-HDBW3241R-ZAS-27135

Technical information

• General
• Case Type:

  Dome

• Image Sensor:

  1/2.8” 2 Megapixel Progressive CMOS

• Effective Pixels:

  2MP

• RAM/ROM:

  256 MB/128 MB

• Resolution:

  1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.002 Lux@F1.5

• Day/Night:

  Yes

• IR Distance:

  40 m

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Camera
• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0°-355°(pan); 0°-75°(tilt); 0°-355°(rotation)

• Lens
• Lens type:

  Motorized vari-focal

• Focal Length:

  2.7 mm to 13.5 mm

• Zoom:

  16x digital

• Mount Type:

  Ф14

• Max Aperture:

  F1.5

• Angle of View:

  108° ~ 28°(H); 57° ~ 16°(V); 130° ~ 33° (D)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  0.8 m

• Video
• Frame Rate:

  2MP (1920 × 1080)@30 fps

• Record Rate:

  Main stream (1920 × 1080@1–25/30 fps); sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps); third stream (1280 × 720@1–25/30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Streaming Capability:

  3 streams

• Bit Rate:

  H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR (120dB)

• WDR:

  120dB

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D DNR

• Flip:

  0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

• Mirror:

  Yes

• Privacy Masking:

  4 areas

• Region of Interest:

  Yes

• Lowlight performance technology:

  Starlight

• Artificial Intelligence
• IVS / Intelligent Video Surveillance :

  Tripwire; intrusion (Recognition of human and vehicle)

• Smart Motion Detection Technology:

  Yes

• Certification
• Certifications:

  CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Alarm Input:

  1 channel in: 5mA 3V–5V DC

• Alarm Output:

  1 channel out: 300mA 12V DC

• Audio Compression:

  G.711a; G.711Mu; G726; AAC

• Network
• Mobile App:

  Android, iOS

• Power
• Power Supply:

  12V DC/PoE (802.3af)

• Power Consumption:

  < 8W

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 40°C to + 60°C

• Protection Grade:

  IP67

• Vandal Resistance:

  IK10

• Construction
• Casing:

  Metal

• Dimensions:

  Φ122 mm x 88.9 mm

• Net Weight:

  0.492 kg

• Gross Weight:

  0.663 kg
