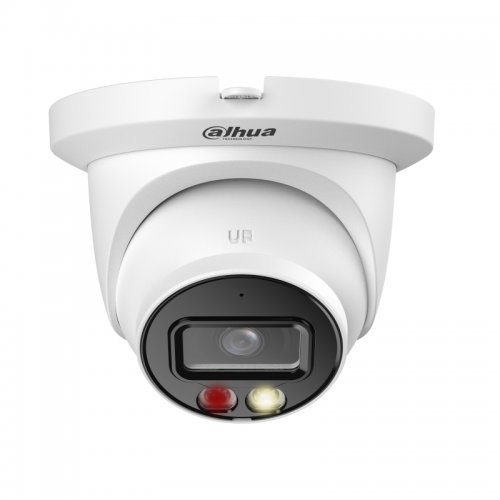

IP камера Dahua IPC-HDW2249TM-S-IL-0360B 2MP 3.6mm 12VDC/PoE WizSense

DH-IPC-HDW2249TM-S-IL 2MP

Smart Dual Light Fixed-focal Eyeball WizSense Network Camera

· 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.

· Outputs max. 2 MP (1920 × 1080)@25/30 fps. · H.265 codec, high compression rate, ultra-low bit rate.

· Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.

· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

· Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).

· Supports max. 256 G Micro SD card; built in MIC.

· 12 VDC/PoE power supply, easy for installation.

· IP67 protection.

· SMD Plus.

Technical information

• General
• Case Type:

  Eyeball

• Series:

  WizSense

• Image Sensor:

  1/2.8” 2 Megapixel Progressive CMOS

• RAM/ROM:

  128 MB/128 MB

• Resolution:

  1080p (1920 × 1080)

• Resolution_surveillance:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.002 Lux@F1.6 (Color, 30IRE) 0.0002Lux@F1.6 (B/W, 30IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  30 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  1

• Fill Light (White Light) Distance:

  30 m

• Fill Light On/Off Control:

  Auto / Manual

• Fill Light Number:

  1

• Storage:

  FTP; SFTP; Micro SD card (256 G)

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0°-360°(pan); 0°-78°(tilt); 0°-360°(rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  3.6 mm

• Mount Type:

  M12

• Max Aperture:

  F1.6

• Angle of View:

  88° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  1.3 m

• Video
• Frame Rate:

  Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  2 streams

• Bandwidth:

  36 Mbps incoming bandwidth

• Bit Rate:

  H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D NR

• Flip:

  0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

• Mirror:

  Yes

• Privacy Masking:

  4 areas

• Region of Interest:

  Yes

• Lowlight performance technology:

  Full-Color

• Full-Color:

  Yes

• Perimeter Protection
• Performance:

  Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

• AI Search:

  Intelligent Search (Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.)

• AI Functions:

  Intrusion , Perimeter protection , Privacy masking , ROI (Region of interest) , Smart Dual Illuminators , Tripwire , SMD Plus (detection of vehicle/human)

• Artificial Intelligence
• Motion Detection:

  Yes

• Full Color технология:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception; SMD

• Certification
• Certifications:

  CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B

• Port
• Audio Compression:

  G.711a; G.711Mu; PCM; G.726

• Built-in Microphone:

  Yes

• SD card:

  Micro SD up to 256 GB

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP

• Interoperability:

  ONVIF (Profile S/Profile T); CGI; P2P; Milestone

• Max. User Access:

  6

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  DSS, DMSS

• Compatible accessories:

  PFA130-E, PFB205W-E, PFA109, PFA152-E, PFB220C

• Power
• Power Supply:

  12V DC/PoE (802.3af)

• Power Consumption:

  Max 3.8 W (12 VDC); 4.4 W (PoE)

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal+Plastic

• Dimensions:

  Φ121.9 mm × 99.1 mm

• Net Weight:

  0.46 kg

• Gross Weight:

  0.65 kg

• Shipping package - DAHUA IPC-HDW2249TM-S-IL-0360B
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  23.6 x 15.6 x 15.6; Weight: 0.64 kg.;
