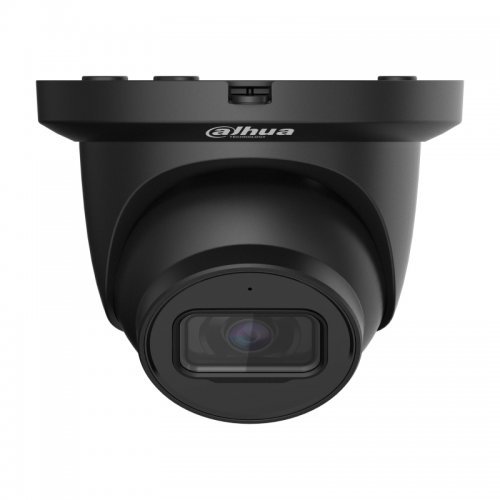

Dahua IPC-HDW5541TM-ASE-0280B-S3 - IP камерa черна

Technical information

• General
• Case Type:

  Eyeball

• Series:

  WizMind

• Image Sensor:

  1/2.7” 5 Megapixel Progressive CMOS

• RAM/ROM:

  1 GB/4 GB

• Resolution:

  5M (2960 × 1668)

• Resolution_surveillance:

  5 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6( B/W, 30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  50 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Storage:

  FTP; SFTP; Micro SD card (512 GB); NAS

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0°-360°(pan); 0°-78°(tilt); 0°-360°(rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M12

• Max Aperture:

  F1.6

• Angle of View:

  111° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  1.1 m

• Video
• Frame Rate:

  Main stream: 2960 × 1668@(1–25/30 fps) Sub stream: D@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  AI H.265; AI H.264 , Smart H.265+/ Smart H.264+

• Streaming Capability:

  4 streams

• Bandwidth:

  80 Mbps incoming bandwidth

• Bit Rate:

  H.264: 32 kbps–16384 kbps H.265: 12 kbps–11776 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto

• Scene Self-adaptation:

  Yes

• Noise Reduction:

  3D NR

• Flip:

  0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution and lower.)

• Mirror:

  Yes

• Privacy Masking:

  8 areas

• Region of Interest:

  Yes

• Electronic Defog:

  Yes

• Perimeter Protection
• Performance:

  Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.

• AI Functions:

  Abandoned/missing object , Defog , Face detection , Heat map , Intrusion , Metadata , People counting , Perimeter protection , Privacy masking , ROI (Region of interest) , SMD Plus (detection of vehicle/human) , Tripwire

• Metadata
• Face:

  Gender, age, expressions, glasses, face mask and beard.

• Vehicle:

  Vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling

• Human Body:

  Gender, top/bottom type and color, bag, hat and umbrella

• Non-motor Vehicle:

  Type, color, number of people, top type and color, hat.

• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire; Intrusion; Abandoned/Missing objects

• Smart Motion Detection Technology:

  Yes

• Advanced Intelligent Functions:

  Face Detection

• People counting:

  Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

• Alarm Prompt:

  No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

• Certification
• Certifications:

  CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Alarm Input:

  1 channel in: 5mA 3V–5V DC

• Alarm Output:

  1 channel out: 300mA 12V DC

• Audio Compression:

  G.711a; G.711Mu; PCM; G.726; G.723

• Built-in Microphone:

  Yes

• SD card:

  Micro SD up to 512GB

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

• Interoperability:

  ONVIF (Profile S/Profile G/Profile T); CGI

• Max. User Access:

  20

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS Lite; DSS; DMSS

• Compatible accessories:

  PFA130-E, PF205W-E, PFA109, PFA152-E, PFB220C

• Power
• Power Supply:

  12 VDC/PoE (802.3af)/ePoE

• Power Consumption:

  Max 6.2 W (12 VDC); 8.3 W (PoE)

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal+Plastic

• Dimensions:

  Φ121.9 mm × 99.1 mm

• Net Weight:

  0.5 kg

• Gross Weight:

  0.77 kg

• Shipping package - DAHUA IPC-HDW5541TM-ASE-0280B-S3-BLACK
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.36 x 10.6 x 10.6; Weight: 0.71 kg.;
