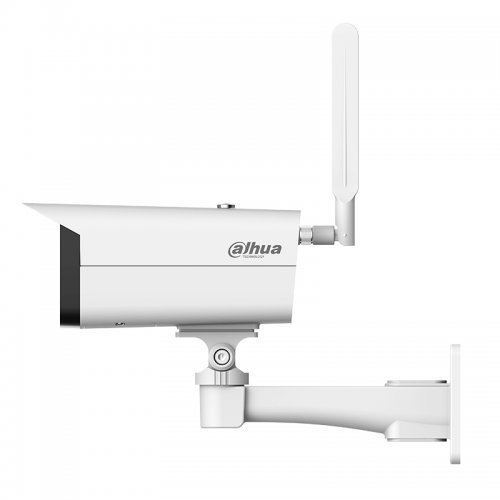

IP камера Dahua IPC-HFW3241DF-AS-4G-NL668-0280B

Technical information

• General
• Case Type:

  Bullet

• Серия:

  Wireless

• Image Sensor:

  1/2.8” 2 Megapixel Progressive CMOS

• RAM/ROM:

  512 MB/128 MB

• Resolution:

  1080p (1920 × 1080)

• Резолюция_видеонаблюдение:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.002 Lux@F1.6(Color,30IRE) 0.0002 Lux@F1.6(B/W,30IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  50 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Storage:

  FTP; Micro SD card (support max. 256 G); NAS; SFTP

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0°–360° (pan); -60°–0° (tilt); 0°–360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M12

• Max Aperture:

  F1.6

• Angle of View:

  107° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  0.7 m

• Video
• Frame Rate:

  Main stream: 1920 × 1080@(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream:1920 × 1080@(1 fps–30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  3 streams

• Bandwidth:

  64 Mbps incoming bandwidth

• Bit Rate:

  H.264:512kbps -8192kbps H.265:256kbps -7424kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D NR

• Flip:

  0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

• Mirror:

  Yes

• Privacy Masking:

  8 areas

• Region of Interest:

  Yes

• Perimeter Protection
• Performance:

  Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

• AI Search:

  Intelligent Search (Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.)

• AI Функции:

  Privacy masking , ROI (Region of interest) , SMD Plus (детекция на човек/превозно средство) , Навлизане в зона , Пресичане на линия

• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception

• Certification
• Certifications:

  CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Alarm Input:

  2 channel in: 5mA 3V–5V DC

• Alarm Output:

  2 channel out: 300mA 12V DC

• RS485:

  1

• Audio Compression:

  PCM; G.711a; G.711Mu; G.726; G.723

• Built-in Microphone:

  Yes

• SD card:

  Micro SD up to 256 GB

• Network
• Ethernet:

  RJ-45 (10/100 Base-T)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

• Interoperability:

  ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

• Max. User Access:

  20

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS, DSS, DMSS

• Съвместими аксесоари:

  PFA121, PFB110W, PFB121W

• Power
• Power Supply:

  12V DC

• Power Consumption:

  < 5.9W

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 30°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal+Plastic

• Dimensions:

  227.6 mm × 204.2 mm × 87.2 mm

• Net Weight:

  0.945 kg

• Gross Weight:

  1.440 kg

• Shipping package
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  10 x 25 x 25; Weight: 1.44 kg.;
