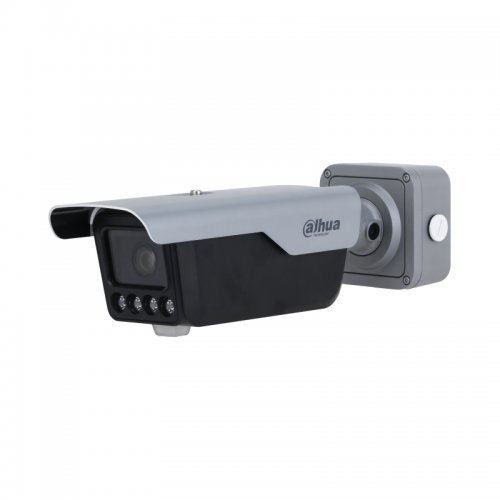

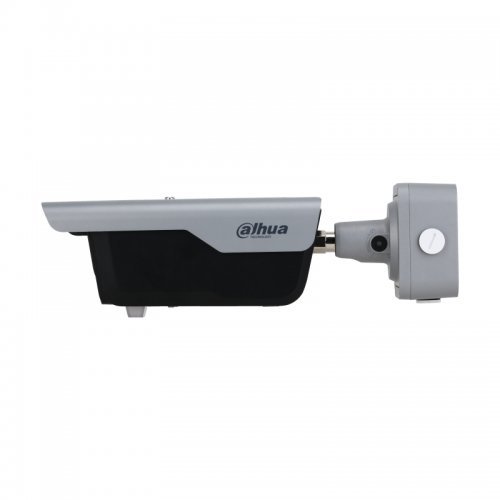

Dahua Intelligent Traffic Camera ITC413-PW4D-IZ1 IP камерa

Dahua Intelligent Traffic Camera

Камера за паркинг решения с автоматично разпознаване на регистрационни табели

Technical information

• General
• Series:

  Special

• Image Sensor:

  1/1.8” 4 Megapixel Progressive CMOS

• RAM/ROM:

  4 GB/1 GB

• Resolution:

  4M (2688 × 1520)

• Resolution_surveillance:

  4 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/25 s–1/100000 s

• Minimum Illumination:

  0.001 Lux@F1.4 (Color, 30 IRE) 0.0002 Lux@F1.4 (B/W, 30 IRE) 0 Lux (Illuminator on)

• IR backlight to:

  Video monitoring: 30, ANPR: 10 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  4

• Storage:

  TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 56dB

• Details:

  Camera for parking/traffic solutions with automatic number plate recognition. Detection range 3m - 8m, speed up to 80km/h.

• Lens
• Lens type:

  Motorized vari-focal

• Focal Length:

  2.7 mm to 12 mm

• Max Aperture:

  F1.4

• Angle of View:

  92° - 46.1° (H)

• Iris Type:

  DC-Iris

• Focus Control:

  Auto, area focus, manual

• Video
• Frame Rate:

  PAL: Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream (1280 × 720@25 fps, 960 × 576@25 fps, 704 × 576@25 fps, 352 × 288@25 fps); NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080@30 fps, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 960 × 480@30 fps, 704 × 408@30 fps, 352 × 240@30 fps)

• Video Compression:

  H.264H; H.264B; H.264M; H.265; MJPEG; H.264M

• Bit Rate:

  H.264B: 2,179 kbps–13,074 kbps H.264M: 2,179 kbps–13,074 kbps H.264H: 2,179 kbps–13,074 kbps H.265: 2,179 kbps–13,074 kbps MJPEG: 6,537 kbps–39,223 kbps

• Bit Rate Control:

  CBR/VBR

• OSD Menu:

  Time; address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)

• BLC:

  BLC / HLC / WDR

• WDR:

  140dB

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto / Manual

• Scene Self-adaptation:

  Yes

• Noise Reduction:

  3D NR

• Smart light (IR/white):

  Yes

• Region of Interest:

  Yes

• Perimeter Protection
• AI Functions:

  Intrusion , License plate recognition , Metadata

• Metadata
• Vehicle:

  License plate, color, brand, country and region.

• Certification
• Certifications:

  CE-EMC; CE-LVD; CE-RED; FCC; FCC-ID

• Port
• Audio Output:

  1-channel (RCA port)

• RS485:

  2

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Micro SD up to 256 GB

• Alarm I/O:

  2/2

• Network
• Ethernet:

  1 RJ-45 Port (10/100/1000Mbps)

• Network Function:

  HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE

• Interoperability:

  ONVIF (Profile S/Profile G/Profile T); CGI; ITSAPI; P2P

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  DSS Pro; DSS Express; Cybercity; Smart PSS

• Compatible accessories:

  PFA150

• Power
• Power Supply:

  12 VDC, 2 A, POE:802.3at,Type 2,Class 4,(44V ~ 57V), 0.455A ~ 0.351A, 20W

• Power Consumption:

  < 17W

• Environment
• Operating Temperature:

  -40°C to +70°C

• Operating RH:

  < 95% RH (non-condensation)

• Storage Temperature:

  -30°C to +65°C

• Protection:

  IP67

• Vandal Resistance:

  IK10

• Construction
• Casing:

  Aluminium + Plastic

• Dimensions:

  396.0 mm × 120.8 mm × 127.8 mm

• Net Weight:

  2.3 kg

• Gross Weight:

  3.2 kg

• Shipping package - DAHUA ITC413-PW4D-IZ1
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  22.9 x 23.8 x 44.5; Weight: 3.2 kg.;
