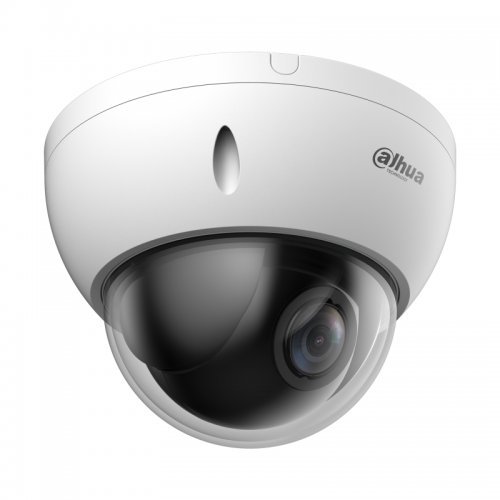

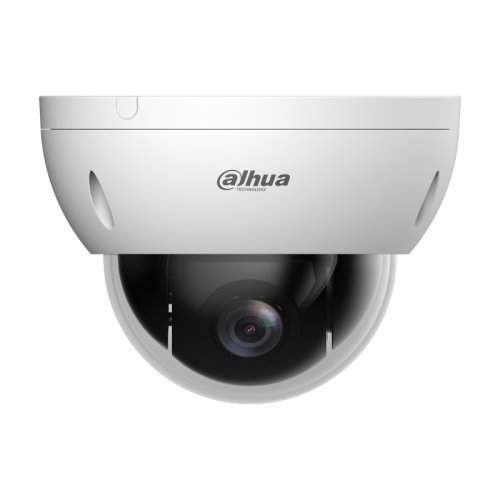

PTZ камера Dahua SD22204DB-GNY 2MP 2.8mm-12mm 12VDC/PoE WizSense

Technical information

• General
• Series:

  WizSense

• Image Sensor:

  1/2.8” 2 Megapixel Progressive CMOS

• RAM/ROM:

  256 MB/128 MB

• Resolution:

  1080p (1920 × 1080)

• Resolution_surveillance:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  1/1 s–1/30,000 s

• Minimum Illumination:

  Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6

• Day/Night:

  Auto (ICR)/Color/B/W

• Storage:

  FTP; Micro SD card (512 GB); NAS

• Camera
• S/N Ratio:

  > 55dB

• Pan/Tilt/Rotation:

  0° - 355° (pan) and 0° - 90° (tilt)

• Manual Control Speed:

  0.1° ~100° /s (pan); 0.1° ~60° /s (tilt)

• Preset Speed:

  100° /s (pan); 60° /s (tilt)

• Presets:

  300

• PTZ:

  Yes

• PTZ mode:

  5 Pattern, 8 Tour

• Idle Motion:

  Preset/Tour/Pattern

• Protocol:

  DH-SD, Pelco-P/D (Auto recognition)

• Lens
• Lens type:

  Varifocal

• Focal Length:

  2.8 mm to 12 mm

• Zoom:

  4 x optical; 16x digital

• Max Aperture:

  F1.6 ~ F3.0

• Angle of View:

  99.1° - 31.9°(H)

• Iris Type:

  Fixed aperture

• Focus Control:

  Auto/Semi-Auto/Manual

• Close Focus Distance:

  1.5 m

• Video
• Frame Rate:

  Main stream: 1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  3 streams

• Bandwidth:

  64 Mbps incoming bandwidth

• Bit Rate:

  H.264: 2048 kbps–8192 kbps H.265: 768 kbps–6400 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / DWDR

• WDR:

  DWDR

• White Balance:

  Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp

• Gain Control:

  Auto / Manual

• Noise Reduction:

  2D NR/3D NR

• Flip:

  180°

• Region of Interest:

  Yes

• Electronic Image Stabilization (EIS):

  Yes

• Electronic Defog:

  Yes

• Lowlight performance technology:

  Starlight

• Perimeter Protection
• Performance:

  Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

• AI Functions:

  Defog , Face detection , EIS (Electronic image stabilization) , Abandoned/missing object , ROI (Region of interest) , SMD Plus (detection of vehicle/human) , Tripwire , Intrusion

• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire; Intrusion; Abandoned/Missing objects

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

• Certification
• Certifications:

  CE: CE-LVD: IEC 62368-1/ CE-EMC/EN 55032/EN IEC 61000-3-2/EN55024/EN55035/EN50130-4 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

• Port
• SD card:

  Micro SD up to 512GB

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS

• Interoperability:

  ONVIF(Profile S&G&T); P2P; CGI; SDK

• Max. User Access:

  20

• Streaming Method:

  Unicast / Multicast

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  DSS, DMSS

• Compatible accessories:

  PFA137, PFB203W, PFB200C, PFA152-E, PFA106, PFB220C

• Power
• Power Supply:

  12 VDC/1 A ± 10% PoE (802.3af)

• Power Consumption:

  < 6.1W

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 30°C to + 60°C

• Protection:

  IP66

• Vandal Resistance:

  IK10

• Construction
• Dimensions:

  Φ122 mm x 89 mm

• Net Weight:

  0.5 kg

• Gross Weight:

  0.7 kg

• Shipping package - DAHUA SD22204DB-GNY
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  8.9 x 12.2 x 12.2; Weight: 0.7 kg.;
