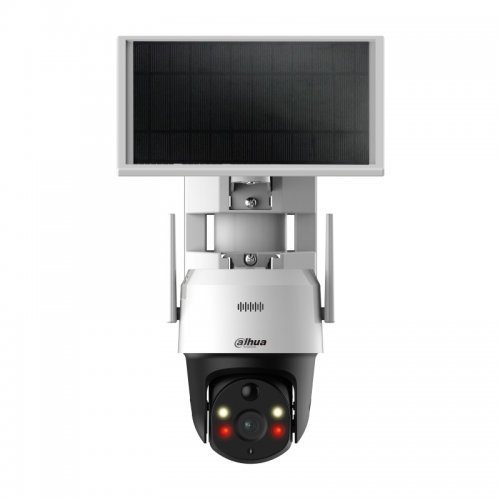

PTZ камера Dahua SD2A400HB-GN-AGQ-PV-0400-SP-EAU IP камерa

Technical information

• General
• Series:

  Wireless

• Image Sensor:

  1/2.8” 4 Megapixel Progressive CMOS

• RAM/ROM:

  256 MB/128 MB

• Resolution:

  4M (2560 × 1440)

• Resolution_surveillance:

  4 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  1/3~1/30,000s

• Minimum Illumination:

  Color: 0.05 lux@F1.6 B/W: 0.005 lux@F1.6 0 lux@F1.6 (Illuminator on)

• Day/Night:

  Auto (ICR)

• IR backlight to:

  30 meters

• IR On/Off Control:

  Manual/SmartIR/Off

• IR LEDs:

  2

• Fill Light (White Light) Distance:

  30 m

• Fill Light On/Off Control:

  Manual/SmartIR/Off

• Fill Light Number:

  2

• Storage:

  FTP; Micro SD card (512 GB); NAS

• Camera
• S/N Ratio:

  > 55dB

• Pan/Tilt/Rotation:

  0° - 345°(pan) and 0° - 80°(tilt)

• Manual Control Speed:

  0.1° ~74° /s (pan); 0.1° ~36.4° /s (tilt)

• Preset Speed:

  62.0° /s (pan); 36.3° /s (tilt)

• Presets:

  300

• PTZ:

  Yes

• Power up Action:

  Support

• Idle Motion:

  Preset

• Details:

  Solar Module: Maximum Power 5.5W, Dimensions: 224 mm × 195 mm × 44 mm

• Lens
• Lens type:

  Fixed

• Focal Length:

  4.0 mm

• Max Aperture:

  F1.6

• Angle of View:

  84° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  2 m

• Video
• Frame Rate:

  Main stream: 4M/1080p/1.3M/720p @ (1–25/30 fps) Sub stream 1: D1/CIF/VGA@ (1–25/30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Streaming Capability:

  2 streams

• Bandwidth:

  64 Mbps incoming bandwidth

• Bit Rate:

  H.264: 32 kbps–8192 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  DWDR

• White Balance:

  Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp

• Gain Control:

  Auto / Manual

• Noise Reduction:

  2D NR/3D NR

• Smart light (IR/white):

  Yes

• Flip:

  180°

• Region of Interest:

  Yes

• Electronic Defog:

  Yes

• Lowlight performance technology:

  Starlight

• Perimeter Protection
• AI Functions:

  Defog , ROI (Region of interest) , Smart Dual Illuminators

• Artificial Intelligence
• Motion Detection:

  Yes

• Alarm Prompt:

  Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; passive infrared detection

• Certification
• Certifications:

  CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15; Subpart B

• Port
• Audio Input:

  1 channel: built-in mic

• Audio Output:

  1 channel (built-in speaker)

• Two-way Talk:

  Yes

• Audio Compression:

  G.711a; G.711Mu; G.726; PCM

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Micro SD up to 512GB

• PIR Detection:

  Yes

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SMB; NFS

• Interoperability:

  ONVIF (Profile S&G&T);CGI;SDK;P2P

• Max. User Access:

  20

• Streaming Method:

  Unicast / Multicast

• Web Viewer:

  IE, Chrome, Firefox, Safari

• Management Software:

  DMSS

• Power
• Power Supply:

  5.4 VDC, 3A, Rechargeable Battery

• Power Consumption:

  Max 10W

• Environment
• Operating Temperature:

  0°C to + 50°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  0°C to +50°C

• Protection:

  IP66

• Construction
• Dimensions:

  336 mm × 247 mm × 223 mm

• Net Weight:

  1.4 kg

• Gross Weight:

  2.14 kg

• Shipping package - DAHUA SD2A400HB-GN-AGQ-PV-0400-SP-EAU
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  30 x 27 x 35; Weight: 2.14 kg.;
