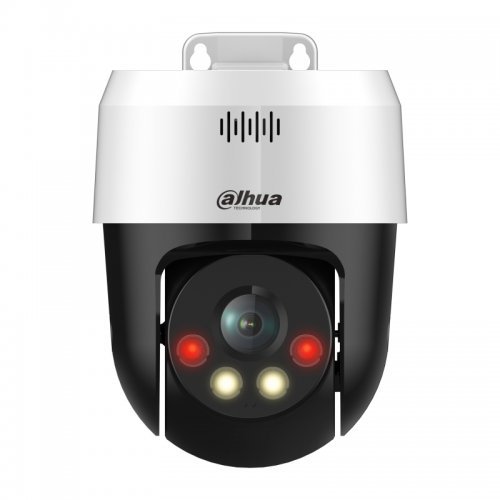

PTZ камера Dahua SD2A500HB-GN-A-PV-0400-S2 5MP 4mm 12VDC PoE SD card

Technical information

• General
• Series:

  Lite

• Image Sensor:

  1/2.8” 5 Megapixel Progressive CMOS

• RAM/ROM:

  128 MB/128 MB

• Resolution:

  5M (2560 × 1920)

• Resolution_surveillance:

  5 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  1/3 s–1/100000 s

• Minimum Illumination:

  Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  30 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Fill Light (White Light) Distance:

  30 m

• Fill Light On/Off Control:

  Auto / Manual

• Fill Light Number:

  2

• Storage:

  FTP; Micro SD card (512 GB)

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 55dB

• Pan/Tilt/Rotation:

  0° - 345°(pan) and 0° - 80°(tilt)

• Manual Control Speed:

  0.1° ~74° /s (pan); 0.1° ~36.4° /s (tilt)

• Preset Speed:

  62.0° /s (pan); 36.3° /s (tilt)

• Presets:

  300

• PTZ:

  Yes

• Power up Action:

  Yes

• Idle Motion:

  Preset

• Lens
• Lens type:

  Fixed

• Focal Length:

  4.0 mm

• Max Aperture:

  F1.6

• Angle of View:

  80.4°(H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  0.3 m

• Video
• Frame Rate:

  Main stream: 5M(1–20 fps), 4M/1080p/1.3M/720p (1–25/30 fps) Sub stream: D1/CIF (1–25/30 fps)

• Video Compression:

  H.264B; H.264; H.265; MJPEG(Sub Stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  2 streams

• Bit Rate:

  H264: 512–8192 kbps H265: 233–7680 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  DWDR

• White Balance:

  Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp

• Gain Control:

  Auto / Manual

• Noise Reduction:

  2D NR/3D NR

• Flip:

  180°

• Perimeter Protection
• AI Functions:

  SMD (Human detection) , Intrusion , Tripwire , Smart Dual Illuminators , TiOC

• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Smart Motion Detection Technology:

  Yes

• Video Detection:

  Human Detection

• Alarm Prompt:

  Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

• Certification
• Certifications:

  CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

• Port
• Audio Input:

  1

• Audio Output:

  1

• Audio Compression:

  PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Micro SD up to 512GB

• Alarm I/O:

  1/1

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  UDP; FTP; RTMP; IPv6; IPv4; IP Filter; DNS; RTCP; HTTP; NTP; SSL; DHCP; RTP; SMTP; HTTPS; TCP/IP; RTSP; DDNS; ARP

• Interoperability:

  RTMP;CGI;SDK;ONVIF (Profile S&T);P2P

• Max. User Access:

  20

• Streaming Method:

  Unicast / Multicast

• Web Viewer:

  IE, Chrome, Firefox, Safari

• Management Software:

  Player; Smart Player; Imou; DMSS; ConfigTool; NVR; Smart PSS

• Power
• Power Supply:

  12 VDC/1.5 A ± 10% PoE (802.3af)

• Power Consumption:

  Max 12.95W

• Environment
• Operating Temperature:

  - 30°C to + 55°C

• Operating RH:

  < 95% RH

• Protection:

  IP66

• Construction
• Dimensions:

  Φ111 mm x 140.5 mm

• Net Weight:

  0.5 kg

• Gross Weight:

  1 kg

• Shipping package - DAHUA SD2A500HB-GN-A-PV-0400-S2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  11.1 x 11.1 x 14.05; Weight: 1 kg.;
