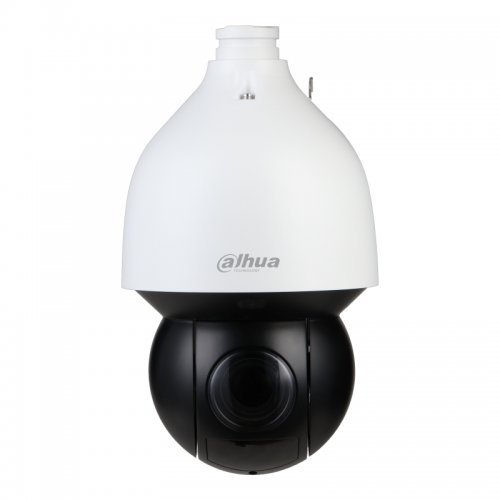

PTZ камера Dahua SD5A432GB-HNRDahua SD5A432GB-HNR IP камерa

Technical information

• General
• Series:

  WizSense

• Image Sensor:

  1/2.8” 4 Megapixel Progressive CMOS

• RAM/ROM:

  1 GB/4 GB

• Resolution:

  4M (2560 × 1440)

• Resolution_surveillance:

  4 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  150 meters

• IR On/Off Control:

  Zoom Prio/Manual/SmartIR

• IR LEDs:

  4

• Storage:

  FTP; Micro SD card (512 GB); NAS

• Camera
• S/N Ratio:

  > 55dB

• Pan/Tilt/Rotation:

  Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°; auto flip 180°

• Manual Control Speed:

  0.1° ~300° /s (pan); 0.1° ~200° /s (tilt)

• Preset Speed:

  400° /s (pan); 300° /s (tilt)

• Presets:

  300

• PTZ:

  Yes

• PTZ mode:

  5 Pattern, 8 Tour, 5 Scan

• Power up Action:

  Yes

• Idle Motion:

  Preset/Tour/Pattern/Scanning

• Protocol:

  DH-SD, Pelco-P/D (Auto recognition)

• Lens
• Lens type:

  Varifocal

• Focal Length:

  4.8 mm to 154 mm

• Zoom:

  32 x optical; 16x digital

• Max Aperture:

  F1.6 ~ F4.0

• Angle of View:

  55.8°–2.4° (H)

• Iris Type:

  Auto/Manual

• Focus Control:

  Auto/Semi-Auto/Manual

• Close Focus Distance:

  0.8 m – 5 m

• Video
• Frame Rate:

  Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)

• Video Compression:

  Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1)

• Streaming Capability:

  3 streams

• Bandwidth:

  64 Mbps incoming bandwidth

• Bit Rate:

  H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / WDR

• WDR:

  120dB

• White Balance:

  Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp

• Gain Control:

  Auto / Manual

• Flip:

  180°

• Privacy Masking:

  Up to 24 areas

• Region of Interest:

  Yes

• Electronic Image Stabilization (EIS):

  Yes

• Electronic Defog:

  Yes

• Lowlight performance technology:

  Starlight

• Perimeter Protection
• Performance:

  Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

• AI Functions:

  Defog , EIS (Electronic image stabilization) , Privacy masking , Acu Pick , ROI (Region of interest) , SMD Plus (detection of vehicle/human) , Auto tracking , Abandoned/missing object , Perimeter protection , Intrusion , Tripwire , Face detection

• Artificial Intelligence
• Motion Detection:

  Yes

• Auto Tracking:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire; Intrusion; Abandoned/Missing objects

• Smart Motion Detection Technology:

  Yes

• Detection:

  Face Detection

• Alarm Prompt:

  Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

• Certification
• Certifications:

  CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1

• Port
• Audio Input:

  2

• Audio Output:

  1

• Two-way Talk:

  Yes

• Audio Compression:

  PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

• SD card:

  Micro SD up to 512GB

• Alarm I/O:

  1/1

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP

• Interoperability:

  ONVIF (Profile T/Profile S/Profile G); CGI

• Max. User Access:

  20

• Streaming Method:

  Unicast / Multicast

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS; DSS; DMSS; Easy4ip; IVSS

• Compatible accessories:

  PFA120, PFB301C, PFB305W, PFA150, PFA140, PFA151, PFB300C, PFA111

• Power
• Power Supply:

  DC 24V/2.5A(±25%), PoE+(802.3at)

• Power Consumption:

  Max 22 W (illuminator + PTZ working)

• Environment
• Operating Temperature:

  -40°C to +70°C

• Operating RH:

  < 95% RH

• Protection:

  IP67

• Vandal Resistance:

  IK10

• Construction
• Dimensions:

  Φ190 mm × 332 mm

• Net Weight:

  4.7 kg

• Gross Weight:

  8 kg

• Shipping package - DAHUA SD5A432GB-HNR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  33.2 x 19 x 19; Weight: 8 kg.
