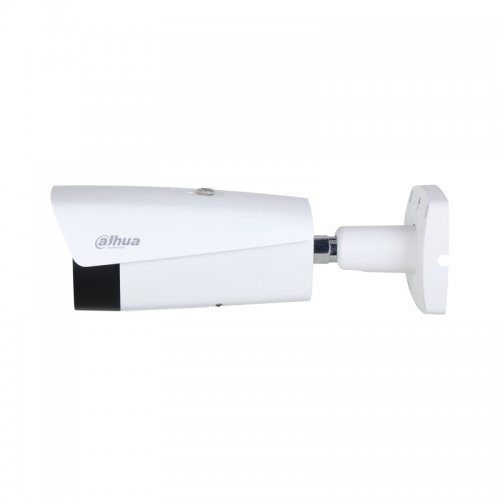

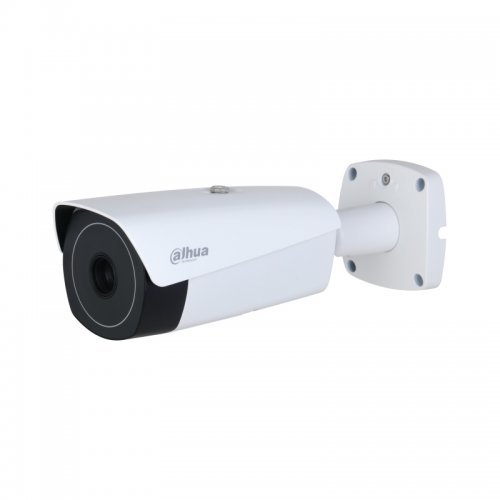

Термовизионна камера Dahua TPC-BF5601-TB13

Technical information

• General
• Case Type:

  Bullet

• Series:

  Thermal

• Image Sensor:

  Thermal Camera: VOx uncooled thermal sensor technology

• Resolution:

  Thermal Camera 640 × 512

• Storage:

  FTP; Micro SD card (512 GB)

• Camera
• Thermal Camera Specific Characteristics:

  Pixel size 12 μm; Thermal Sensitivity (NETD) <35mK@f/1.0; Spectral Range 8~14 μm; Thermal imaging lens: 13mm; Color Palettes 18 Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2 .etc); Temperature measurement range: Low temperature mode: –20 °C to +150 °C, High temperature mode: 0 °C to +550 °C, Auto mode; Temperature measurement accuracy: Max. (±2 °C, ±2%); Temperature Mode: Spot: 12, Line: 12, Area: 12, Support 12 rules simultaneously

• Lens
• Focal Length:

  13 mm

• Max Aperture:

  F1.0

• Angle of View:

  37° (H)

• Close Focus Distance:

  4 m

• Video
• Frame Rate:

  Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps,30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG

• Bandwidth:

  64 Mbps incoming bandwidth

• Gain Control:

  Auto / Manual

• Noise Reduction:

  2D NR/3D NR

• Flip:

  180°

• Perimeter Protection
• AI Functions:

  Heat detection , Digital Detail Enhancement (DDE) , Thermal/Hot Trace , SMD Plus (detection of vehicle/human) , Perimeter protection , Intrusion , Tripwire

• Artificial Intelligence
• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Smart Motion Detection Technology:

  Yes

• Certification
• Certifications:

  CE, FCC

• Port
• Audio Input:

  1

• Audio Output:

  1

• Video Port:

  1-channel BNC output / CVBS video output

• RS485:

  1

• Audio Compression:

  G.711a; G.711mu; AAC; PCM

• SD card:

  Micro SD up to 512GB

• Alarm I/O:

  2/2

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Network Function:

  HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP;Multicast; SFTP; 802.1x;

• Interoperability:

  ONVIF; CGI; DAHUA SDK

• Max. User Access:

  20

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Compatible accessories:

  PFA121, PFA152-E, PFA151

• Power
• Power Supply:

  12 VDC ± 20%, PoE (802.3af), ePoE

• Power Consumption:

  < 14W

• Environment
• Operating Temperature:

  -30°C to +70°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 30°C to + 70°C

• Protection:

  IP67

• Construction
• Dimensions:

  291 mm × 103 mm × 97 mm

• Net Weight:

  1.4 kg

• Gross Weight:

  1.9 kg

• Shipping package - DAHUA TPC-BF5601-TB13
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  12 x 20 x 30; Weight: 1.9 kg.;
