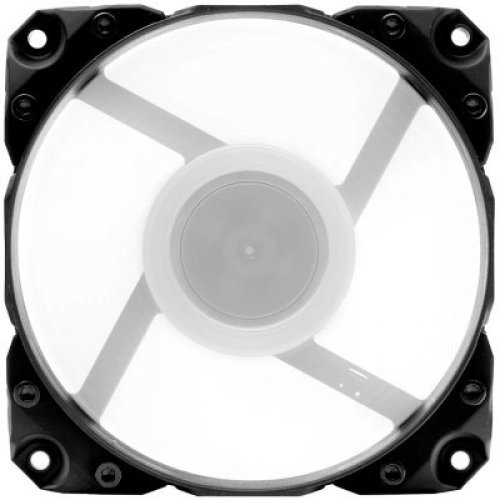

Вентилатор EK-Vardar X3M 120ER D-RGB ARGB 500-2200rpm 120mm 34.2dBA Black

The EK-Vardar X3M 120ER D-RGB is a high-static pressure computer cooling fan with added aesthetical interchangeable rubber dampers. Developed in-house and first introduced in 2014, the EK-Vardar fan is now also available as the X3M 120ER model with addressable D-RGB LEDs and optional daisy-chaining feature. The rubber details on the corners of the fan are also there to reduce vibration and noise. These rubber dampers come pre-installed for use in push orientation but can be removed and mounted the other way around, for a pull flow orientation. To further make the sound profile more pleasant, airflow optimizations were made to the rotor as well. Under the motor hub, there is a total of 9 addressable D-RGB LEDs ensuring perfect light diffusion at broad daylight as well.

The addressable D-RGB LEDs use standard 3-pin 5V D-RGB connectors with optional daisy-chaining. Meaning it can be used with any standard 3-pin 5V D-RGB controller or any of popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D-RGB (A_RGB) header.

The Vardar family of cooling fans carries the notorious name of a type of the cold northwesterly wind blowing from the mountains down to the valleys of Macedonia. It is a type of ravine wind, enhanced by a channeling effect while blowing down through the Moravia-Vardar gap, bringing cold conditions from the north to the Thessaloniki area of Greece. Most frequent during winter, it is blowing in the rear of a depression when atmospheric pressure over eastern Europe is higher than over the Aegean Sea.

Other key characteristics of the EK-Vardar X3M 120ER  fans are:

• High-static pressure / low noise profile – unlike other general-purpose computer cooling fans, the EK-Vardar X3M 120ER fan is built for high-powered PC systems. The Vardar’s design is also suitable for restrictive cases with dust filters.
• High-quality motor and bearing assembly - New electrical design, actively cooled motor windings and the Dual-Ball bearing with 50.000 hours of lifespan (MTBF) ensures uninterrupted operation for years to come. Precise Pulse Width Modulation (PWM) for fan speed adjustment allows performance on demand.
• Standard D-RGB connection - The Vardar X3M 120ER D-RGB features a standard 3-pin 5V D-RGB connection that is compatible with any popular RGB sync technology from major motherboard manufacturers.
• 0db regime - The Vardar X3M 120ER has a 0db mode where the fan turns off when the PWM curve is set below 25%.
• Colored Dampers - Interchangeable rubber dampers in multiple color options to boost aesthetics and to reduce vibration transfer.

• Enclosed in the package:

  - EK-Vardar X3M 120ER D-RGB - Black
  - UNC 6-32 (l=10mm) screw set for radiators with optional nuts for case mounting
  - Allen Key 3mm

  Performance characteristics:

  - Max air flow: 67 CFM = 114 m³/h
  - Static pressure: 2.75 mm H2O = 27 Pa
  - Noise level: 34.2 dBA

  Mechanical and electrical specifications:

  - Maximum speed: 2200 rpm (+/- 10%)
  - Rated Voltage: 12V DC
  - Power Draw: ~2.16W (0.18A)
  - LED Power Draw: ~0.85W (0.17A)
  - PWM Duty Cycle: 25-100% - ER (Extended Range)
  - Connector: 4-pin PWM header
  - Bearing Type: Dual-Ball bearing
  - Bearing durability: 50.000 hrs @ 40°C (MTBF)
  - Dimensions: 120 x 120 x 27.5 mm
  - Black cable length: 50cm
  - RGB cable length: 50cm
  - RGB connector classic 3-pin (+5V, D, Empty, G)
