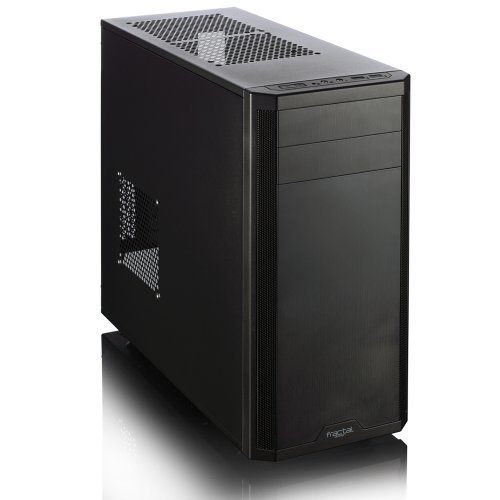

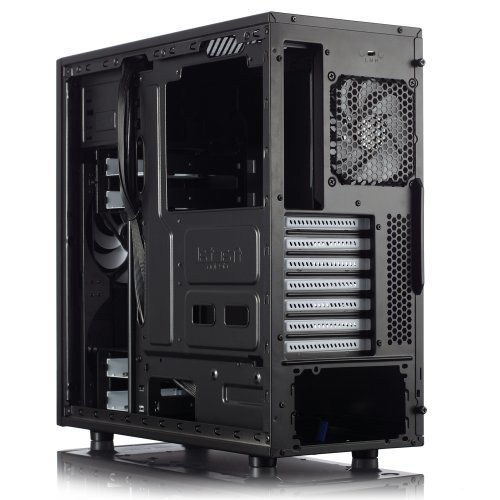

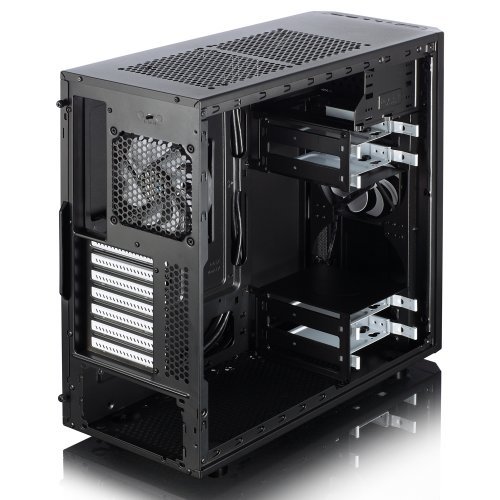

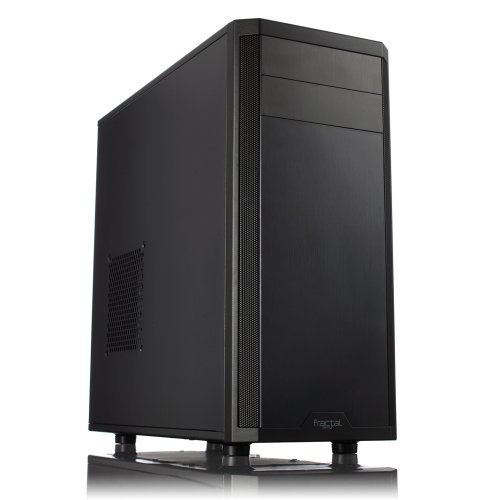

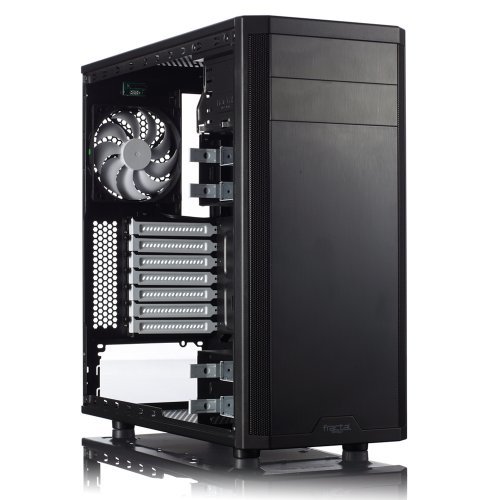

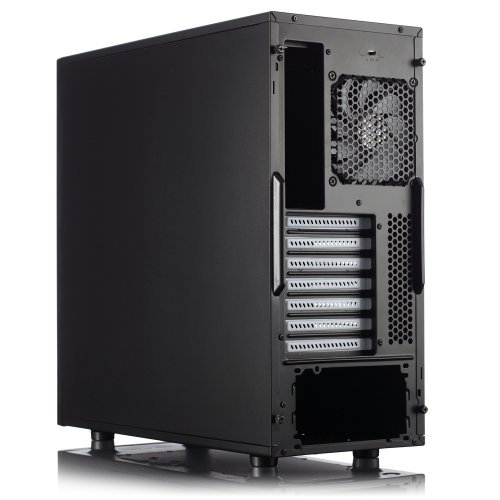

Fractal Design Core 2500, MID TWR BLACK

Fractal Design Core 2500

• Key features
A compact ATX Mid Tower case with bottom-mounted PSU, designed for exceptional airflow and cooling
Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
Superior water cooling support for its size, supporting one 240/280mm radiator in the front and a 240mm radiator in the top
Featuring a 120mm rear exhaust fan for great cooling
Total 7 fan slots with two 120mm fans included
Extruded motherboard plate allowing space for additional cable routing; 18.5mm around the motherboard and 13.5mm directly behind it
Supports tall CPU cooler towers, up to circa 162mm in height
Featuring an integrated three-speed fan controller
Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior
Four vibration dampening hard drive trays for up to four 3.5" HDDs, all compatible with 2.5" drives
HDD trays split into two cages and strategically positioned with a large space in between to support all long graphics cards up to a maximum length of 380mm, with all hard drive trays in place
One additional SSD position behind the PSU area with easy installation and access

• Specifications
Mini ITX, Micro ATX ATX motherboard compatibility
2 drive bays of 5,25" or 4 bays 3.5"- all compatible with SSDs
1 -2.5" dedicated SSD unit position
7 expansion slots
Supports graphic card up to 380mm without any HDD removal
Support cooling system: 7 Fan positions (2 fans included)
Filtered fan slots in front and bottom
CPU coolers up to 162 mm in height
Integrated fan controller
Supports ATX PSUs up to 155 mm deep when using the primary bottom fan location; when not using this fan location longer PSUs can be used
13.5-18.5 mm of space for cable routing behind the motherboard plate
Extra cable routing holes for usage with mATX motherboards
Available in Black
Case dimensions (WxHxD):195 x 431 x 450mm
Net weight: 5.7 kg
Package dimensions (WxHxD): 270 x 547 x 492mm
Package weight: 6.9kg

• Cooling system
Front: 2 - 120/140mm fans (included is 1 Fractal Design silent 120mm fan, 1200 RPM speed)
Rear: 1 - 120mm fan (included is 1 Fractal Design silent 120mm fan, 1200 RPM speed)
Top: 2 - 120/140mm fan (not included)
Bottom: 1 - 120mm fan (not included, PSU length limits apply) OR 1 - 120mm fan (not included, requires removal of lower HDD cage) OR 1 - 140mm fan (not included, requires removal of lower HDD cage)
Side: 1 -140mm fan (not included)
1 - integrated fan controller on the backside for up to 3 fans

• Water Cooling compatibility
Front - 240mm radiator, up to 45mm in thickness (with lower HDD cage repositioned in case, upper HDD cage removed)
Front - 240mm radiator, any thickness, push/pull supported (with both lower and upper HDD cages removed)
Front –Slim 280mm radiator: 15mm fan spacing required for full fastening, radiators with 20mm fan spacing can be used with only the top half fastened to the case (with lower HDD cage repositioned in case, upper HDD cage removed, lower ODD slot may need to be unused depending on tube end chamber size)
Top – Slim 240mm radiator (with upper ODD slot occupied by a device no longer than 150mm and with no components on the upper 23 mm on the motherboard that are taller than 34mm)
Rear – 120 mm radiator

• Front interface
2 - USB 3.0
Audio in/out
Power button with LED (white)
HDD activity LED (white)
Reset button

• Package contents
Core 2500 computer case
Accessory box
User manual
