GeoVision GVIP-PTZ010D IP камера, PAN-TILT-ZOOM, 10x оптично + 10x цифрово увеличение, H.264, 4.2 - 42 мм обектив, 1/4" CCD, PoE

Camera

Model Name

GV-PTZ010D-N

GV-PTZ010D-P

Image Sensor

1/4" CCD image sensor

Picture Elements

704 (H) x 480 (V)

704 (H) x 576 (V)

Minimum Illumination

Color

2.5 Lux (F/1.8)

B/W

0.07 Lux (F/1.8)

Shutter Speed

Automatic, (1/60 ~ 1/120,000 sec)

Automatic, (1/50 ~ 1/120,000 sec)

White Balance

Manual (3200K ~ 9600K)

Lens

Day/Night support

Yes

Iris

Fixed Iris

Focal Length

4.2 ~ 42 mm

Aperture

F/1.8 ~ F/2.9

Angle of view

Diagonal

56.4°

Horizontal

46.4°

Vertical

35.6°

Operation

Focus

Yes

Zoom

100x (10x Optical, 10x Digital)

Iris

Fixed

Operation

Video Format

NTSC

PAL

Video Codec

H.264, MPEG4, MJPEG

Video Stream

Dual Streams from two of H.264, MPEG4 and MJPEG

Video Resolution

Main Stream

704 x 480, 704 x 240, 352 x 240

704 x 576, 704 x 288, 352 x 288

Sub Stream

704 x 480, 704 x 240, 352 x 240

704 x 576, 704 x 288, 352 x 288

Frame Rate

30 fps

25 fps

* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).

Image Setting

Exposure Control, White Balance, Image Orientation, Light Compensation, Gamma

Audio Codec

G.711

Digital Input

1 Input (Dry Contact)

Digital Output

1 Output

Network

Interface

10/100 Ethernet

Protocol

HTTP, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA

Mechanical

Connectors

Power

2-pin terminal block

Ethernet

RJ-45

Audio

1 In (Using a built-in or an externally connected microphone)
1 Out (Stereo phone jack, 3.5 mm / 0.14 in)

Local Storage

Micro SD / SDHC memory card slot

Digital I/O

3-pin terminal block

LED Indicator

2 LEDs: Power and Status

Camera Angle Adjustment

Pan -175° ~ 175°, Tilt -45° ~ 90°

General

Operating Temperature

-10 °C ~ 50 °C / 14 °F ~ 122 °F

Humidity

10% to 90% (no condensation)

Power Source

12V DC / 24V AC / PoE

Power Consumption

15 W (max. 1.25A at 12V DC)

Regulatory

CE, FCC, C-Tick, RoHS compliant

Dimensions
(L X W X H)

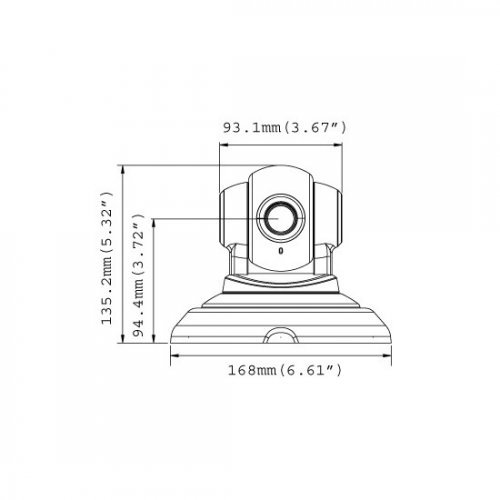

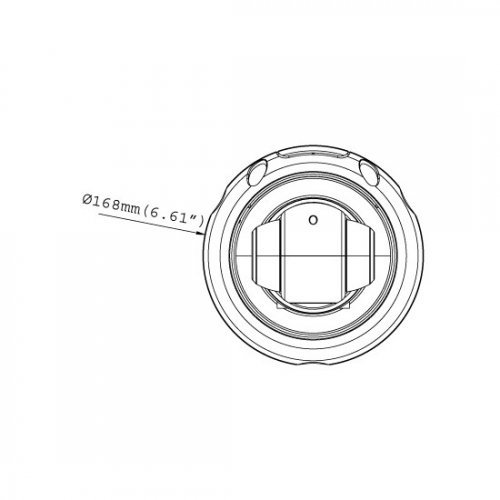

With mounting base and cover

167.75 x 166.78 x 135.2 mm / 6.6 x 6.57 x 5.32 in

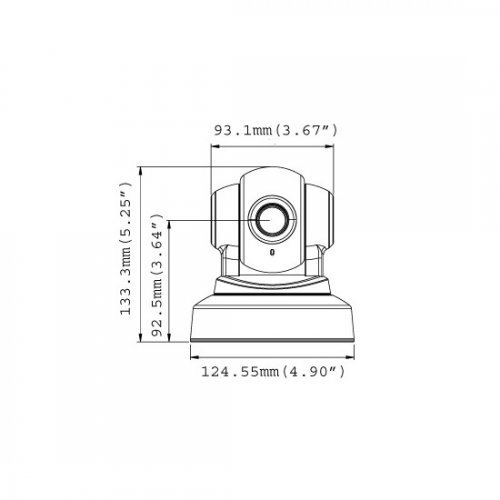

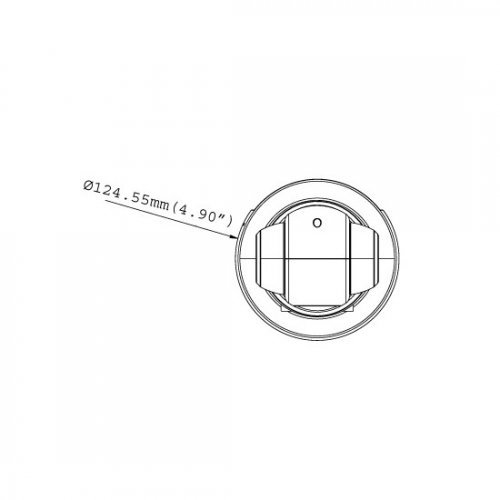

Without mounting base and cover

124.55 x 122.73 x 133.3 mm / 4.9 x 4.83 x 5.25 in

Weight

490 g / 1.08 lb

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet / PSE

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface

Installation Management

Web-based configuration

Maintenance

Firmware upgrade through Web Browser or Utility

Access from Web Browser

Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask

Language

Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese

Applications

Network Storage

GV-NVR, GV-System

3G Mobile Phone

Built-in player for 3GPP / ISMA

Live Viewing

IE , Mobile Phone

CMS Server support

GV-Center V2, GV-VSM, GV-Dispatch Server, GV-Control Center
