Gigabyte
Дънна платка Gigabyte GA-B250-FinTech (rev. 1.0) Mining Edition

Дънна платка Gigabyte GA-B250-FinTech (rev. 1.0) Mining Edition

Name: Дънна платка Gigabyte GA-B250-FinTech (rev. 1.0) Mining Edition
Brand: Gigabyte
SKU: GA-B250-FinTech (rev. 1.0) Mining Edition
Availability: OutOfStock

Продуктов код: 27090

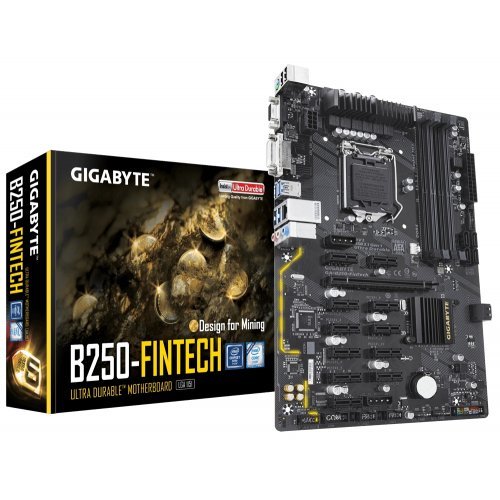

Дънна платка Gigabyte GA-B250-FinTech (rev. 1.0) Mining Edition (снимка 1)

Дънна платка Gigabyte GA-B250-FinTech (rev. 1.0) Mining Edition

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Gigabyte

Модел:

GA-B250-FinTech (rev. 1.0) Mining Edition

Партиден номер:

Гаранция:

36 месеца

Предназначение:

Десктоп

Чипсет:

Intel B250

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1151

Form Factor:

ATX

Видео изходи:

D-Sub(VGA), DVI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Gigabyte GA-B250-FinTech (rev. 1.0) Mining Edition

12 PCIe Slots Perfect for Mining
Dual 12V AUX power connector for PCIe slot
Supports 7^th/ 6^th Generation Intel^® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
8-channel HD Audio with High Quality Audio Capacitors
Audio Noise Guard with LED Trace Path Lighting
Realtek GbE LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
APP Center Including EasyTune™ and Cloud Station™ Utilities

CPU
1. Support for 7^thand 6^th generation Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/ Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® B250 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
  * To support 2400 MHz or XMP memory, you must install a 7^th Generation processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor- Intel^® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1 GB
Audio
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
2. 11 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface
Chipset:
1. 6 x SATA 6Gb/s connectors
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
Chipset:
1. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x PCIe power connectors
4. 1 x CPU fan header
5. 3 x system fan headers
6. 6 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x USB 3.1 Gen 1 header
11. 2 x USB 2.0/1.1 headers
12. 1 x serial port header
13. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 4 x USB 3.1 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  Ambient LED
  AutoGreen
  BIOS Setup
  Color Temperature
  Cloud Station
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  Platform Power Management
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  System Information Viewer
  USB Blocker
  V-Tuner
  Support for Q-Flash
  Support for Xpress Install
Bundle Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Windows^® 10 64-bit (for 7^th Generation Intel^® Processors)
2. Windows^® 10 64-bit / Windows^® 8.1 64-bit / Windows^® 7 32-bit / 64-bits (for 6^th Generation Intel^® Processors)
  * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
1. ATX Form Factor; 30.5cm x 20.0cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
