Комуникационен шкаф LANDE, 4U 19“ FLATшкаф 540x400mm

19” STB Security Box Series Wall Mounting Cabinets

LN-STB04U5440-LG, LANDE, 4U 19“ FLATшкаф 540x400mm.

STB Security Box wall mounting cabinets are designed for
network distribution, where a fast efficient installation is
required, providing a cost-effective solution.

• With the EN 12150-1 standard antistatic, transparent safety glass 4,0 mm front glass door. • Round quarter turn lock which is compatible with DIN 1743, DIN 53571, RoHS. • EN IEC 60297- Mechanical constructions for electronical devices. mechanical constructions (19 inch series) with standard universal 482,6 mm profiles • EN IEC 60917- Modular layout for development of mechanical constructions in electronic equipment applications. • EIA/ ECA-310 ( D/E) 19'' 482,6 mm and U 44,45 mm Height Sizing • EN 61587-1 For electronic devices inner usage mechanic construction cabinets, bottom shelves, cases, IEC 60917 and IEC 60297 series tests, Chapter 1, environmental conditions, test setup and security rules. • Climatic and environment: EN 61587-1/4.2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-30 • Static Mechanical Load Lifting: EN 61587-1/5.2.1 • Static Mechanical Load Stiffness: EN 61587-1/5.2.2 • Dynamic mechanical load vibration and shock, impact: EN 61587-1/5.3.1, EN 61587-1/5.3.3, IEC 60068-2-6, IEC 60068-2-27 • Grounding: EN 61587-1/6.2 • Fireproofing: EN 61587-1/6.3 • IP protection class (IP code): IP20, EN 61587-1/6.4 • The powder paint used is non-flammable and has a flame-retardant resistant according to TS EN 13501-1 + A1 standard • TS EN ISO 9227 corrosion tests, salt spraying tests, TS EN ISO 2409 paints and varnishes, cross cutting test, TS 2311 EN ISO2178 above magnetic metals non-magnetic covering, measuring covering thickness, magnetic method • 2011/65/EU- regulation of hazardous material restriction/ RoHS suitability • TS EN 60950-1 information technology devices, Security- Chapter 1 • General rules- CE conformity • Sheet steel: DIN 934, DIN 985, DIN 933 - EN ISO 2081 metallic and other inorganic coverings covered above iron or steel with the additional process electrolytic zinc covering standards Production Facility Standards • ISO 9001- Quality Control System • ISO 14001- Environmental Management System • ISO 45001- Occupational Health and Safety Management System 19” STB Security Box Series Wall Mounting Cabinets 4 STB Security Box wall mounting cabinets are designed for network distribution, where a fast efficient installation is required, providing a cost-effective solution. Whilst the product provides maximum performance on cabling and networking installations, the unique design provides an economic solution compared to its quality which is based on high technology, fully automated production techniques.

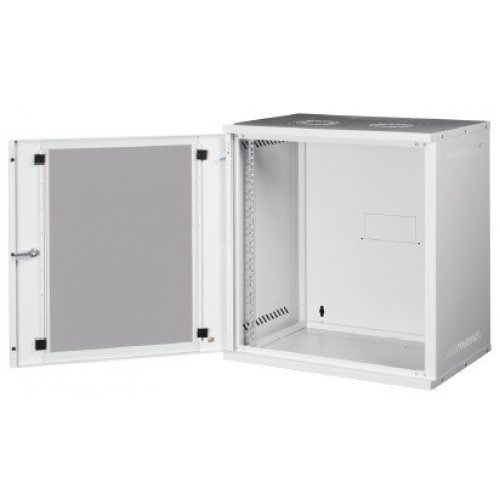

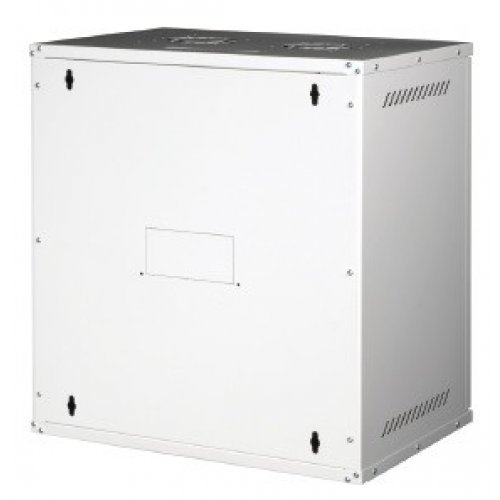

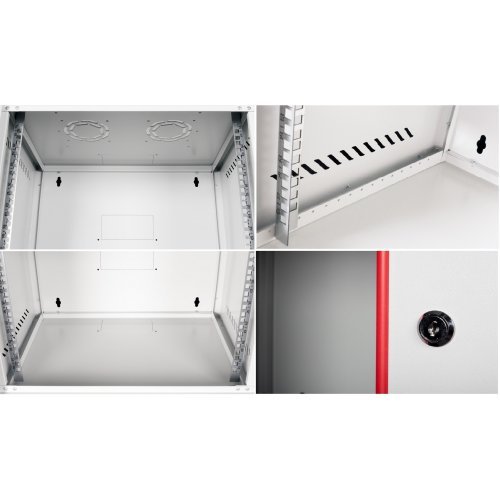

Framework- Top/Bottom Cases: Multi folded automated bending technology design for framework and top/bottom cases, this provides a heavy-duty structure which results in, a high load capacity of 50 kg’s. A optional fan module can be integrated or just single fan could be assembled directly. Cable entry available on top, bottom and rear panel with sizes W: 145 mm x D: 70 mm are available. Cable entry locations can be opened with knock-out. Options for Plastic Cable entry cover plates or brushed cable entries and sliding rubber edge cable entry module can be added. The shatterproof, antistatic, transparent, 4,0 mm thickness safety glass door with single point keyed locking barrel lock system integrated with “O” type locker. Flexible front door opening direction is set right to left, but reversible to left to right at site, by changing the hinge pin location. Available/stocked colour of STB Security Box wall mounting cabinets are in RAL 7035 Light Grey

LN-STB04U5440-LG STB Security Box Series 4U 19" STB Security Box Wall Mounting Cabinet W=542 mm D=400 mm 542x400x237

Gross Weight (kg) 7.1
