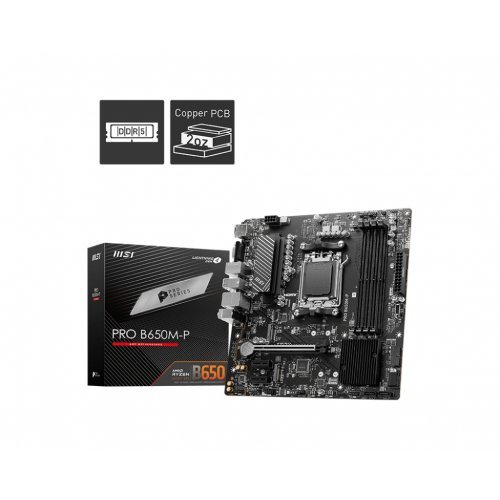

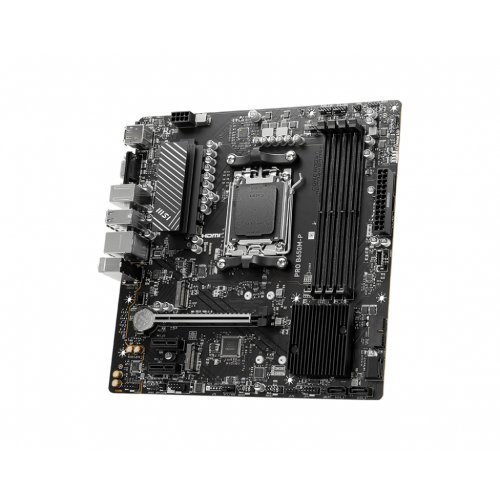

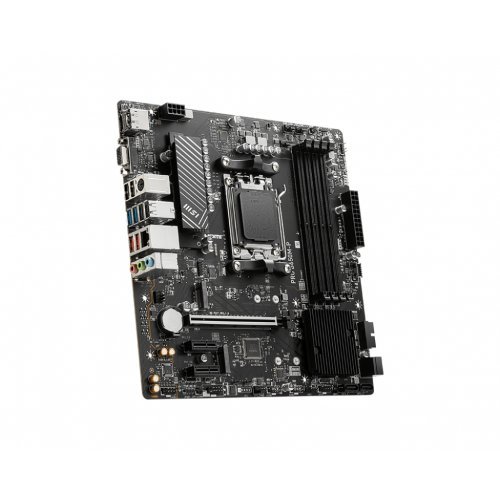

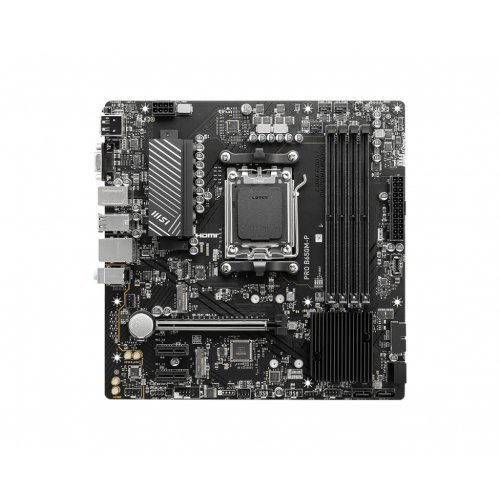

MSI B650M-P
Характеристики
CPU's supported:
Supports AMD Ryzen™ 7000 Series Desktop Processors;
Socket AM5
Memory type:
4x DDR5, Maximum Memory Capacity 192GB;
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz;
Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz;
1DPC 2R Max speed up to 6000+ MHz;
2DPC 1R Max speed up to 6000+ MHz;
2DPC 2R Max speed up to 5400+ MHz;
Supports Dual-Channel mode;
Supports non-ECC, un-buffered memory;
Supports AMD EXPO
Chipset: AMD B650
Graphics:
1x HDMI™;
Support HDMITM 2.1, maximum resolution of 4K 60Hz*;
1x DisplayPort;
Supports DP 1.4, maximum resolution of 4K 60Hz*;
1x VGA;
Support VGA, maximum resolution of 1920x1200 60Hz*
Expansion Slots: 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage:
2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
4x SATA 6G

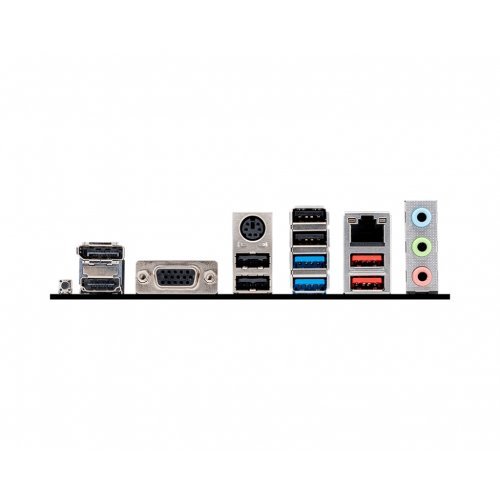

I/O: DisplayPort VGA Keyboard / Mouse USB 2.0 2.5G LAN Audio connectors Flash BIOS Button HDMI™ USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A)
Connectors:
1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
1x Pump Fan;
3x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
2x Addressable V2 RGB LED connector (JARGB_V2);
2x RGB LED connector(JRGB);
1x TPM pin header(Support TPM 2.0);
4x USB 2.0 ports;
2x USB 3.2 Gen1 Type A ports;
1x USB 3.2 Gen2 Type C ports
Audio:
Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
LAN: Realtek® 8125BG 2.5G LAN
Form Factor: mATX 243.84mmx243.84mm
OS: Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty: 36 Months
