Noctua NH-D15, LGA115x/1700/2011/AMD

Продуктов код: 10908
Охлаждане за компютри Noctua
Охлаждане за компютри > Noctua NH-D15 Охлаждане за компютри > Noctua NH-D15 Охлаждане за компютри > Noctua NH-D15 Охлаждане за компютри > Noctua NH-D15 Охлаждане за компютри > Noctua NH-D15
Охлаждане за компютри Noctua
(1) Напиши ревю | Задай въпрос
Производител:
Noctua
Модел:
NH-D15
Партиден номер:
-
Гаранция:
72 месеца
Размер на вентилатора:
120 mm
Цена с включен ДДС:
206.11 лв.
Гаранционен срок 72 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА
  • Описание
  • Ревюта (1)
  • Въпроси и отговори

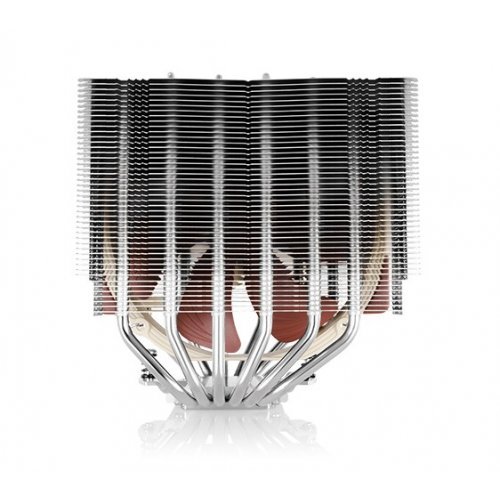

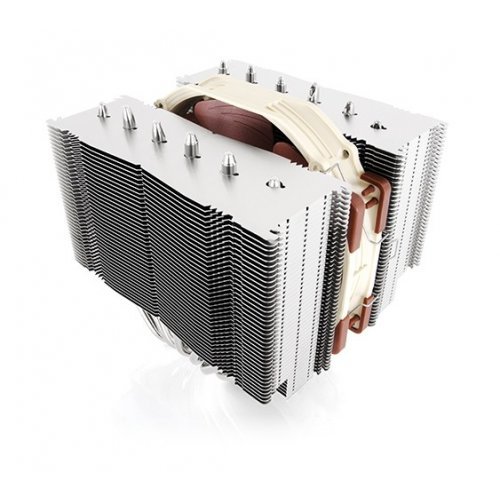

Noctua NH-D15

СЪВМЕСТИМОСТ - Intel    LGA 2066
LGA 2011-3
LGA 2011-0
LGA 1700
LGA 1200
LGA 1156
LGA 1155
LGA 1151
LGA 1150
СЪВМЕСТИМОСТ - AMD    AM5
AM4
AM3+
AM3
AM2+
AM2
FM2+
FM2
FM1

Specifications

Tailored to provide superior RAM and PCIe compatibility, the NH-D15S is an asymmetrical single fan version of Noctua’s award-winning flagship model, the NH-D15. Thanks to its asymmetrical design, the NH-D15S clears the top PCIe slot on most µATX and ATX motherboards. At the same time, the single fan setup and recessed lower fins guarantee 100% RAM compatibility with memory modules of up to 65mm height. Users who have sufficient room can also upgrade the cooler with either a 120mm or round 140mm fan on the front fin stack for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D15S forms a complete premium quality solution that combines dual tower efficiency with excellent compatibility and flexible upgrade options.



Socket compatibility   Intel LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)



Height (without fan)   160 mm



Width (without fan)   150 mm



Depth (without fan)   135 mm



Height (with fan)   165 mm



Width (with fan)   150 mm



Depth (with fan)   135 mm



Weight (without fan)   980 g



Weight (with fan)   1150 g



Material   Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Max. TDP   see TDP guide



Fan compatibility   140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

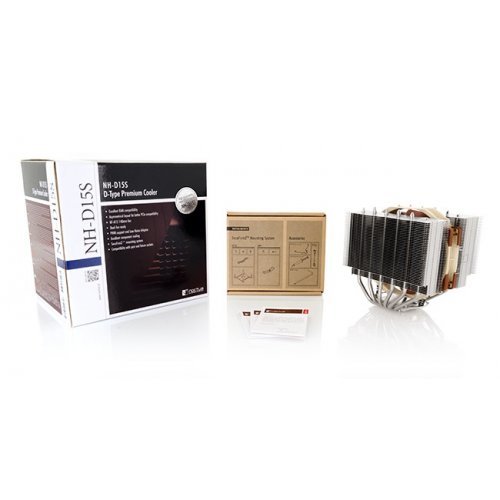

Scope of Delivery
  • 1x NF-A15 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • Fan clips for second fan
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ Mounting Kit
  • Noctua Metal Case-Badge



Warranty   6 Years





Fan specifications



Model   1x Noctua NF-A15 PWM



Bearing   SSO2



Max. Rotational Speed (+/- 10%)   1500 RPM



Max. Rotational Speed with L.N.A. (+/- 10%)   1200 RPM



Min. Rotational Speed (PWM, +/-20%)   300 RPM



Max. Airflow   140,2 m³/h



Max. Airflow with L.N.A.   115,5 m³/h



Max. Acoustical Noise   24,6 dB(A)



Max. Acoustical Noise with L.N.A.   19,2 dB(A)



Input Power   1,56 W



Voltage Range   12 V



MTBF   > 150.000 h




Details

Tailored to provide superior RAM and PCIe compatibility, the NH-D15S is an asymmetrical single fan version of Noctua’s award-winning flagship model, the NH-D15. Thanks to its asymmetrical design, the NH-D15S clears the top PCIe slot on most µATX and ATX motherboards. At the same time, the single fan setup and recessed lower fins guarantee 100% RAM compatibility with memory modules of up to 65mm height. Users who have sufficient room can also upgrade the cooler with either a 120mm or round 140mm fan on the front fin stack for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D15S forms a complete premium quality solution that combines dual tower efficiency with excellent compatibility and flexible upgrade options.

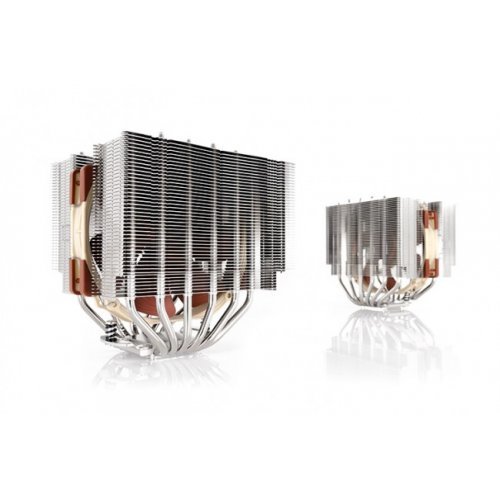

NH-D15S Features High-compatibility version of NH-D15
Compared to the award-winning NH-D15, the S-version uses an off-set, asymmetrical layout and a single instead of dual NF-A15 fans. This allows the NH-D15S to provide state-of-the-art heatsink performance while maintaining superior RAM and PCIe compatibility.
NH-D15S Features Excellent RAM compatibility
Thanks to its recessed lower fins, the NH-D15S provides 65mm clearance for tall memory heatsinks, making it compatible with most high end modules on the market. As the lower fins are recessed on both sides of the heatsink, compatibility is excellent not only on LGA115x and AMD, but also on LGA2011 where there are RAM slots on both sides of the socket.
NH-D15S Features Asymmetrical layout for better PCIe compatibility
As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-D15S is off-set towards the upper edge of the motherboard when installed in standard orientation. This allows it to clear the top PCIe x16 slot on most current µATX and ATX motherboard.*
NF-A15 NF-A15 140mm fan
Complying with Noctua’s AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market. button
NH-D15S Features Dual-fan ready
Using the supplied extra fan clips, the NH-D15S can be upgraded with either a second round-frame 140mm fan with 120mm mounting holes (such as the NF-A15) for maximum performance or a common 120mm fan (such as the NF-F12) for improving performance while maintaining compatibility with RAM modules of up to 45mm height.
NH-D15S Features PWM support and Low-Noise Adaptor
The NF-A15 premium fan supplied with the NH-D15S supports PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.
NH-D15S Features Excellent component cooling
Extending below the fin-stacks, the large NF-A15 fan not only contributes to the superb CPU cooling capabilities of the NH-D15S but also provides massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.
NH-D15S Features SecuFirm2™ mounting system
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011 (LGA2011-0 & LGA2011-3) and AMD (AM3(+), AM2(+), FM1, FM2(+)), the SecuFirm2™ mounting included with the NH-D15S guarantees perfect contact pressure and maximum convenience on all current sockets.
NH-D15S Features Compatibility with past and future sockets
Complying with the open SecuFirm™ standard, the NH-D15S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.
NF-A15 NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. button
NH-D15S Features 6 years warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15 features an MTBF rating of more than 150.000 hours and the entire NH-D15S package comes with a full 6 years manufacturer’s warranty.
*Please refer to our motherboard compatibility list for detailed information.

Деян Добромиров21-01-2020 14:59:20

Оценка:

Охладителя работи страхотно. Много е тих и идва със скоби за монтиране за Intel и AMD, които са изключително лесни за монтиране и демонтиране. Не е нужно да се доплаща за кит поддържащ AM4 сокет. Съвсем лесно се побира в CoolerMaster 693 кутия с Kingston HyperX Predator вископрофини памети. След поставяне на Phenom II x6 1090T овърклокнат на 3.5 гигахерца, темературата в готовност е 40 градуса целзии, като при тест с Prime 95 и 100 процента продължително натоварване се вдига до 50 градуса, което е с приблизително 8 градуса надолу спрямо CoolerMaster Hyper 212 Plus. Страхотем продукт!
