Noctua NH-U12DX i4, LGA 2011(square/narrow)/1356/1366

Продуктов код: 16189
Охлаждане за компютри Noctua
Охлаждане за компютри > Noctua NH-U12DX i4 NH-U12DX-i4 Охлаждане за компютри > Noctua NH-U12DX i4 NH-U12DX-i4 Охлаждане за компютри > Noctua NH-U12DX i4 NH-U12DX-i4
Охлаждане за компютри Noctua
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Noctua
Модел:
NH-U12DX i4
Партиден номер:
NH-U12DX-i4
Гаранция:
72 месеца
Размер на вентилатора:
120 mm
Цена с включен ДДС:
153.18 лв.
Гаранционен срок 72 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА
  • Описание
  • Ревюта
  • Въпроси и отговори

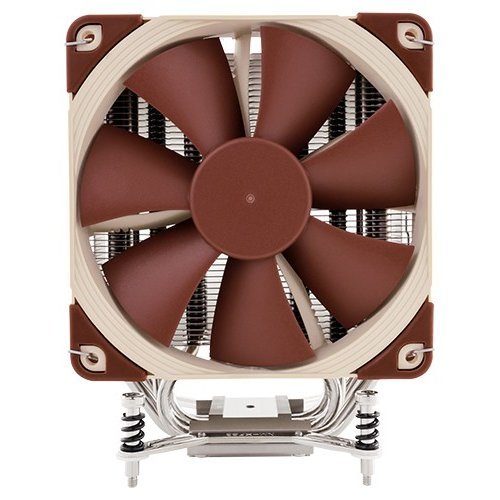

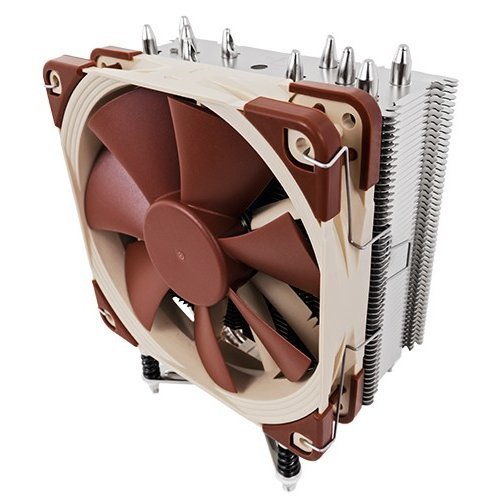

Noctua NH-U12DX i4


Noctua - Bild

Noctua's DX line of coolers has become a default choice in high performance quiet cooling solutions for Intel Xeon CPUs. The latest i4 revision supports LGA2011 (both Square ILM and Narrow ILM), LGA1356 and LGA1366 based Xeon platforms and the 12cm model NH-U12DX i4 comes equipped with Noctua’s award-winning NF-F12 Focused Flow™ fan with PWM for automatic speed control. Due to its slim design, the NH-U12DX i4 now provides easy access to the memory slots and better compatibility with tall modules. Fitted with the professional SecuFirm2™ mounting system and bundled with Noctua's industrial-grade NT-H1 thermal compound, the NH-U12DX i4 forms a complete premium quality package for quietly cooling Xeon based workstations and servers.



NH-U12DX i4 Features Award-winning NH-U12 series
The NH-U12DX i4 is based on the latest version of Noctua’s award-winning NH-U12 coolers. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.
NH-U12DX i4 Features Easier access to RAM
Thanks to its slim design with only 45mm fin depth, the NH-U12DX i4 ensures easy access to the RAM slots. When installed parallel to the slots, it will not overhang the memory on LGA1356, LGA1366 and LGA2011 Square ILM even with two fans installed, thus providing full compatibility with tall RAM heatsinks.
NF-A15 NF-F12 120mm Focused Flow™ fan
Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua’s premium quality NF-F12 Focused Flow™ 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation. button
NH-U12DX i4 Features PWM support and Low-Noise Adaptor
The NF-F12 120mm fan supplied with the NH-U12DX i4 supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.
NH-U12DX i4 Features Anti-vibration pads and fan-clips for second NF-F12 (optional)
For users who want to achieve even better performance by adding a second, optional NF-F12 fan to create a push/pull setup, the NH-U12DX i4 includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.
NH-U12DX i4 Features SecuFirm2™ mounting system
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel’s LGA2011 (both Square and Narrow ILM), LGA1356 and LGA1366 Xeon platforms, the SecuFirm2™ mounting included with the NH-U12DX i4 guarantees perfect contact pressure and maximum convenience on all sockets.
NF-A15 NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. button
NH-U12DX i4 Features 6 years warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-F12 features an MTBF rating of more than 150.000 hours and the entire NH-U12DX i4 package comes with a full 6 years manufacturer’s warranty.





Socket compatibility   Intel LGA2011-0 & LGA2011-3 (Square ILM & Narrow ILM), LGA1356, LGA1366 (wtih Xeon backplate)



Height (without fan)   158 mm



Width (without fan)   125 mm



Depth (without fan)   45 mm



Height (with fan)   158 mm



Width (with fan)   125 mm



Depth (with fan)   71 mm



Weight (without fan)   580 g



Weight (with fan)   755 g



Material   Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Fan compatibility   120x120x25



Scope of Delivery
  • NF-F12 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ Mounting Kit
  • Anti-vibration pads and fan-clips for second NF-F12



Warranty   6 Years





Fan specifications



Model   Noctua NF-F12 PWM



Bearing   SSO2



Max. Rotational Speed (+/- 10%)   1500 RPM



Max. Rotational Speed with L.N.A. (+/- 10%)   1200 RPM



Min. Rotational Speed (PWM, +/-20%)   300 RPM



Max. Airflow   93,4 m³/h



Max. Airflow with L.N.A.   74,3 m³/h



Max. Acoustical Noise   22,4 dB(A)



Max. Acoustical Noise with L.N.A.   18,6 dB(A)



Input Power   0,6 W



Voltage Range   12 V



MTBF   > 150.000 h
