24-bay Synology NAS Server for Small and Medium Business( 12 bays on base, expandable to 24 with RX1223RP - закупува се отделно) , 2U Rackmount RS2423+

Продуктов код: 79574
NAS устройство Synology
ВНОС ПО ЗАЯВКА

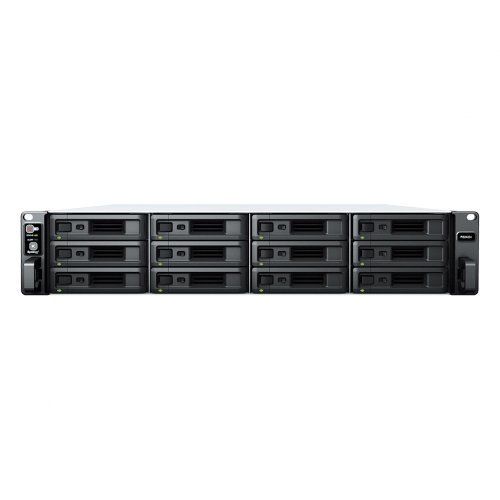

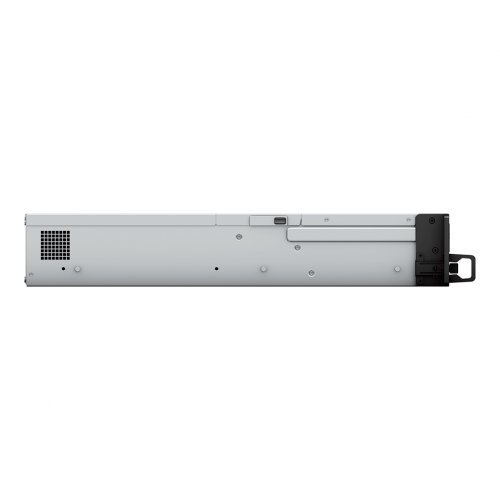

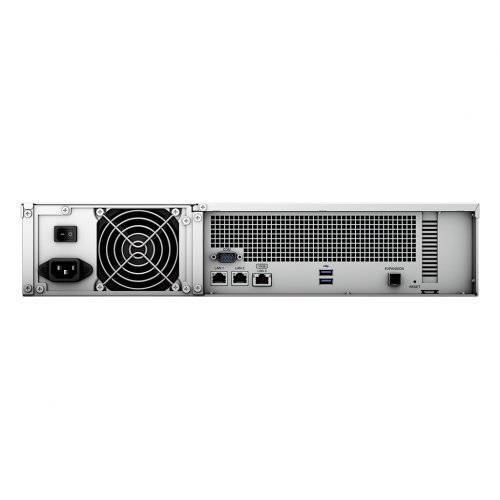

NAS устройство Synology RS2423+ NAS устройство Synology RS2423+ NAS устройство Synology RS2423+ NAS устройство Synology RS2423+
NAS устройство Synology
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Synology
Модел:
RS2423+
Партиден номер:
RS2423+
Гаранция:
36 месеца
Брой гнезда:
12
Цена с включен ДДС:
4458.00 лв.
Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Възможност за лизинг

Кандидатствай бързо и лесно онлайн

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

Внос по заявка

Стандартният срок за внос по заявка е 15-90 дни след 50% авансово плащане.

ДОБАВИ В КОЛИЧКАТА
Вземете на лизинг с UniCredit Consumer Financing
Купи на лизинг
По 434.66 лв. за 12 мес. Лизингови схеми
Лизингови схеми
Кандидатствайте за лизинг онлайн

1 Добавете желаните продукти в количката си и преминете към страницата за изпращане на поръчката;

2 За начин на плащане изберете "На лизинг с..." и предпочитания от вас лизингодател;

3 Попълнете своите данни и изберете желания срок за лизинг във формата за кандидатстване;

4 Изпратете поръчката си, след което очаквайте одобрение от лизингодателя по телефон или имейл;

Срок UniCredit Consumer Financing TBI Pay
31561.19 лв.
ГПР: 34.52		1552.87 лв.
ГПР: 25.07
6809.57 лв.
ГПР: 34.49		809.87 лв.
ГПР: 31.09
9559.48 лв.
ГПР: 34.54
12434.66 лв.
ГПР: 34.53		438.37 лв.
ГПР: 34.46
15360.21 лв.
ГПР: 34.52
18310.72 лв.
ГПР: 34.51		314.54 лв.
ГПР: 35.17
21275.5 лв.
ГПР: 34.53
24249.2 лв.
ГПР: 34.52		252.62 лв.
ГПР: 35.13
27229.14 лв.
ГПР: 34.49
30213.09 лв.
ГПР: 34.55		215.47 лв.
ГПР: 34.81
33200.16 лв.
ГПР: 34.53
36189.47 лв.
ГПР: 34.49		190.7 лв.
ГПР: 34.38
  • Описание
  • Ревюта
  • Въпроси и отговори

Synology RS2423+

AMD Ryzen V1780B 4 core 3.35GHz, 8GB DDR4 ECC RAM(up to 32GB), 2x 1GbE, 1x 10GbE, 2x USB3.2

Технически данни

CPU
 CPU Model AMD Ryzen V1780B
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 4-core 3.35 (base) / 3.6 (turbo) GHz
Hardware Encryption Engine (AES-NI) V
Memory
 System Memory 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed 8 GB (8 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
 Drive Bays 12
Maximum Drive Bays with Expansion Unit 24 (RX1223RP x 1)
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive* V
Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
 RJ-45 1GbE LAN Port* 2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 1
USB 3.2 Gen 1 Port* 2
Expansion Port 1
Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
 PCIe Expansion 1 x Gen3 x8 slot (x4 link)
File System
 Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Appearance
 Form Factor (RU) 2U
Size (Height x Width x Depth) RS2423+ : 88 mm x 482 mm x 552 mmRS2423RP+ : 88 mm x 482 mm x 578 mm
Weight RS2423+ : 11.5 kgRS2423RP+ : 11.9 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Others
 System Fan 60 mm x 60 mm x 3 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan V
Power Recovery V
Noise Level* RS2423+ : 52.3 dB(A)RS2423RP+ : 56.2 dB(A)
Scheduled Power On / Off V
Wake on LAN / WAN V
Power Supply Unit / Adapter RS2423+ : 500 WRS2423RP+ : 350 W
Redundant Power Supply RS2423+ : -RS2423RP+ :
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption RS2423+ : 119.95 W (Access) 46.21 W (HDD Hibernation)
RS2423RP+ : 114.86 W (Access) 42.33 W (HDD Hibernation)
British Thermal Unit RS2423+ : 409.56 BTU/hr (Access) 157.78 BTU/hr (HDD Hibernation)
RS2423RP+ : 392.18 BTU/hr (Access) 144.53 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise Level Testing Environment: A Synology NAS loaded with Synology 480GB SAT5200-480G solid-state drive(s) in idle state. Each G.R.A.S. type 40AE microphone is placed at a 1-meter distance from the front and rear of a Synology NAS. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL
Warranty
 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus
Notes
  • Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
 RS2423+ :
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Quick Installation Guide X 1
RS2423RP+ :
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
  • DDR4 ECC UDIMM: D4EU01-8G/D4EU01-16G
  • Expansion Units: RX1223RP
  • 3.5" SATA HDD: HAT5300
  • 2.5" SATA SSD: SAT5210
  • M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
  • M.2 SSD Adapter Card: M2D20
  • 25GbE Network Interface Card: E25G21-F2
  • 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
  • Rail Kit Sliding: RKS-02
  • VisualStation: VS360HD
  • Surveillance Device License Pack
Notes
  • Certain items may not be available in your location. Please contact your local distributors for more information.
  • All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
DSM Specifications
Storage Management
 Maximum Single Volume Size*
  • 200 TB (32 GB memory required)
  • 108 TB
Maximum Internal Volume Number 64
SSD Read / Write Cache (White Paper) V
SSD TRIM V
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • JBOD
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Notes
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).
File Services
 File Protocol SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections 2,000
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) 2,000
Windows Access Control List (ACL) Integration V
NFS Kerberos Authentication V
Notes
  • Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
  • The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
 Maximum Local User Accounts 2,048
Maximum Local Groups 256
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32
Hybrid Share
 Maximum Hybrid Share Folders 10
High Availability
 Synology High Availability V
Log Center
 Syslog Events per Second 1,000
Virtualization
 VMware vSphere with VAAI V
Citrix Ready V
OpenStack V
General Specifications
 Networking Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Google Chrome
  • Firefox
  • Microsoft Edge
  • Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)
 V
Central Management System
 V
Synology Chat
 Maximum Number of Concurrent Users 150
Notes
  • Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.
  • When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document Viewer
 V
Download Station
 Maximum Concurrent Download Tasks 80
SAN Manager
 Maximum iSCSI Target Number 128
Maximum LUN 256
LUN Clone/Snapshot, Windows ODX V
Synology MailPlus / MailPlus Server
 Free Email Accounts 5 (Licenses required for additional accounts)
Maximum Number of Concurrent Users 150
Maximum Server Performance 1,484,000 emails per day, approx. 45GB
Notes
  • Models with more than 4 bays were installed with two SSDs for SSD cache.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
 DLNA Compliance V
Synology Photos
 Facial Recognition V
Snapshot Replication
 Maximum Snapshots per Shared Folder 1,024
Maximum of System Snapshots 65,536
Surveillance Station
 Maximum IP cam (Licenses required) 50 (including 2 Free License) (see all supported IP cameras)
Total FPS (H.264) 1500 FPS @ 720p (1280x720)
1500 FPS @ 1080p (1920x1080)
1050 FPS @ 3M (2048x1536)
650 FPS @ 5M (2591x1944)
400 FPS @ 4K (3840x2160)
Total FPS (H.265) 1500 FPS @ 720p (1280x720)
1500 FPS @ 1080p (1920x1080)
1500 FPS @ 3M (2048x1536)
1050 FPS @ 5M (2591x1944)
650 FPS @ 4K (3840x2160)
Notes
  • Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup.
  • Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Synology Drive
 Recommended Number of Concurrent Sync Clients 600 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Utilizing SSD cache can significantly improve performance.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
 Maximum Users 1,800
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
 V
Virtual Machine Manager
 Recommended Virtual Machine Instances 8 (Learn more)
Recommended Virtual DSM Number (Licenses required) 8 (including 1 Free License)
Notes The specifications vary depending on system configuration and memory size.
VPN Server
 Maximum Connections 40

Основна информация

ProductFamily
RackStation

Памет

Поддържани интерфейси за устройства за съхранение
SATA
Размерите на поддържаните дискови устройства
2.5,3.5
Поддръжка на RAID
Y
RAID поддръжка
0, 1, 5, 6, 10, JBOD
Онлайн RAID миграция
Y
Онлайн RAID разширяване
Y
Hot-swap батерии
Y
Поддържани файлови системи
BTRFS, Файлова система FAT, HFS+, NTFS, exFAT, ext3, ext4
Инсталирани устройства за съхранение
N
Брой поддържани устройства за съхранение
12
Инсталиран тип устройство за съхранение
N
Поддържани видове устройства за съхранение
HDD SSD
Тип вътрешна памет
DDR4
Поддържана максимална RAM
32 GB
Слотове за памет
2
Оперативна памет
8 GB
Форм-фактор на паметта
UDIMM
ECC
Y

Процесор

Производител на процесора
AMD
Семейство на процесора
AMD Ryzen
Модел процесор
V1780B
Честота на копроцесора
3,35 GHz
Честота на ускорението на процесора
3,6 GHz
Процесорни ядра
4
Брой поддържани процесори
1

Мрежови възможности

Ethernet LAN
Y
Скорости на трансфер на данни по Etnernet LAN
10,100,1000,10000 Мбитс
Поддържана скорост на данни за Ethernet LAN макс.
10000 Мбитс
Медна ethernet кабелна технология
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Поддръжка на iSCSI
Y
Съвместим с събуждане чрез LAN
Y
Агрегиране на връзки
Y

Портове и Интерфейси

USB порт
Y
Брой портове USB 3.2 Gen 1 3.1 Gen 1 Type-A
2
Брой Ethernet LAN RJ-45 порта
3
PCI Express x8 Gen 3.x слотове
1

Дизайн

Тип на корпуса
Поставка 2U
Вид охлаждане
Активни
Цвят на продукта
Черен, Сив
Брой вентилатори
3 вентилатори
Диаметър на вентилатора
6 см
LED индикатори
Y
Вграден дисплей
N
Вграден високоговорители
N

Производителност

Тип
NAS
Клас на устройството
Малък и среден бизнес
Функция за резервно копие
Y
Функции за архивиране
Клауд, iSCSI LUN
Многоезична поддръжка
Y
Ниво на шума
52,3 dB
Вграден четец на карти
N
Моментална снимка
Y
Протоколи за управление
SNMP
Алгоритъм за криптиране на данни
AES
Списък на управление на достъп ACL
Y
Вграден FTP сървър
Y
Поддържан браузър
Google Chrome Firefox Microsoft Edge Safari
Системен регистър
Y

Cофтуер

Инсталирана операционна система
DiskStation Manager
Версия на операционната система
7,1,1

Мощност

Място на захранването
Вградена
Мощност на захранващия блок PSU
500 W
Брой захранващи блокове
1
Поддръжка на резервно захранване
N
Консумация на енергия стандартно
119,95 W
AC входно напрежение
100 - 240 V
AC входна честота
50 - 60 Hz

Тегло и размери

Ширина
482 мм
Дълбочина
562 мм
Височина
88 мм
Тегло
11,5 кг

Съдържание на опаковката

Адаптер за външно захранване
N
Включени кабели в комплекта
Променлив ток AC
Количество захранващи кабели
1
Комплект за монтаж в рак
Y

Техническа информация

Съответствие за устойчивост
Y
Сертификати за устойчивост
CE, RoHS

Условия на работа

Работна температура
0 - 35 C
Диапазон на влажноста при експлоатация
5 - 95
Температура за съхранение
-20 - 60 C

Сертификати

Сертификати
FCC BSMI VCCI RCM UKCA EAC CCC KC UL

Ако притежавате този продукт и имате впечатления за него, моля споделете ги!

Задайте своя въпрос относно 24-bay Synology NAS Server for Small and Medium Business( 12 bays on base

(не се публикува)
(не се публикува)

*Моля, напишете своя телефон или имейл адрес, ако желаете да се свържем с Вас
Продукти, подобни на 24-bay Synology NAS Server for Small and Medium Business( 12 bays on base, expandable to 24 with RX1223RP - закупува се отделно) , 2U Rackmount RS2423+

виж всички nas устройства

Нагоре
