Having trouble remembering to turn off the router at night ? Feeling bothered to turn it on/off from time to time? The Smart WiFi Schedule of AC18 will save you from the hassle.
Setting your ideal time range,the AC18 will turn on/off WiFi automatically to create a low-power consumption & healthy Eco-friendly environment for baby, mother and your whole families.
Standard&Protocol
IEEE802.3, IEEE802.3u
Interface

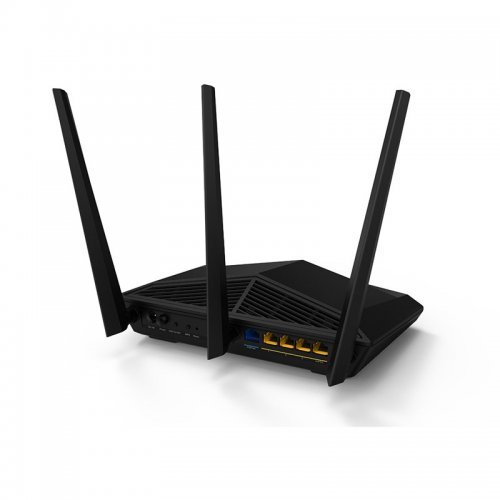

1*10/100/1000Mbps WAN port
4*10/100/1000Mbps LAN ports
1* USB3.0 port
Antenna
3*3dBi external dual band antennas
Button
1* Power On/Off button, 1*WiFi on/off, 1* Reset button,1* WPS button
Power
Input:100-240V—50/60Hz, 0.9A
Output:DC 12V==2.5A
Dimension
(LxWxH) 261 x 168 x 65mm
LED
1*power, 1*Internet, LAN, 1*2.4G, 1*5G, 1*WPS, 1*USB
Wireless Standards
IEEE 802.11ac/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Data rate
5GHz: Up to 1300Mbps
2.4GHz: Up to 600Mbps, support Turbo-QAM
Frequency
Simultaneous dual band 2.4 & 5GHz
Transmit Power
CE: <20dBm(2.4G)
<23dBm(5G)
FCC:<30dBm
Basic Features
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
Wireless Security
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Operating Mode
Wireless Router Mode
Universal Repeater Mode
WISP Mode
DHCP
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server
Port Forwarding
DMZ Host
UPnP
Security
Client Filter
Parental Control(support black list and white list)
Remote Web Management
Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
DDNS
Support DynDNS, No-ip, 3322.org, Oray.com, 88ip
USB Sharing
Support Samba(Storage)/FTP Server/Printer Server/ DLNA/ Media Server
VPN
IPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client
Features
Smart WiFi Schedule
Sleeping Mode
Smart LED on/off
Tenda App
Other
Bandwidth Control
Guest Network
IPTV
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Temperature
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.
Humidity
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
Default Settings
Default Access: tendawifi.com
Certification
CE, FCC, RoHS, BSMI, NCC, EAC, IC
Package Content
AC1900 Smart Dual-Band Gigabit WiFi Router
Power Adapter
Install Guide
Cat5e Ethernet Cable
