TP-Link CPE220, 2.4GHz 300Mbps 12dBi Outdoor CPE with POE injector 13км long range

TP-Link CPE220, 2.4GHz 300Mbps 12dBi Outdoor CPE with POE injector 13км long range

Name: TP-Link CPE220, 2.4GHz 300Mbps 12dBi Outdoor CPE with POE injector 13км long range
Brand: TP-Link
SKU: CPE220
Availability: OutOfStock

Продуктов код: 16177

ТОП ПРОДУКТ

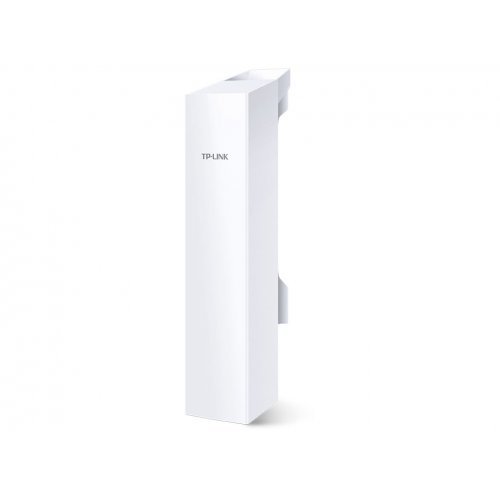

Точки за достъп (access point) > TP-Link CPE220 (снимка 1)

Точки за достъп (access point) > TP-Link CPE220

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

TP-Link

Модел:

CPE220

Партиден номер:

CPE220

Гаранция:

36 месеца

Поддържани честоти (Frequencies):

2.4 GHz

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

TP-Link CPE220

Datasheet

2.4GHz 300Mbps 12dBi Outdoor CPECPE220

Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 30dBm/1000mw
System-level optimizations for more than 13km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

HARDWARE FEATURES
Processor	Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory	64MB DDR2 RAM, 8MB Flash
Interface	1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button
Power Supply	Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Power Consumption	10.8 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )	11×3.1×2.1 inch (276×79×60 mm)
Antenna Type	Built-in 12dBi 2x2 Dual-polarized Directional Antenna Beam Width: 60° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet
Protection	15KV ESD Protection 6KV Lightning Protection
Enclosure	Outdoor ASA stabilized plastic material IPX5 waterproof Certification

WIRELESS FEATURES
Wireless Standards	IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol	TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds	Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Frequency	2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power	30dBm/1000mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES
Wireless Configurations	Pharos MAXtream TDMA Technology 802.11b/g/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management	Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
System Tools	Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
System-level Optimizations	Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog

POE ADAPTER FEATURES
Interfaces	1 AC Jack with Earth Ground 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data)
Efficiency	>80%
Button	Remote Reset Button
Certifications	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Power Status LEDs	0~0.8A: Green 0.8A~1.0A: Red
Output	24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Input Voltage	100VA~240VAC @ 50Hz~60Hz
Dimensions(W x D x H)	110×57×33.5mm
Input Current	0.8A Max @ 100VAC
Input	100-240VAC, 50/60Hz
Output Voltage	24VDC(+4,5pins; -7,8pins)

OTHERS
Certification	CE, FCC, RoHS, IPX5
Package Contents	Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment	Operating Temperature: -30°C~70°C (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
