TP-Link TL-RE200, AC750 WiFi Range Extender

Highlights:

• Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
• Compatible with 802.11 b/g/n and 802.11ac WiFi devices
• Dual band speeds up to 750Mbps
• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

Boost Your Router Coverage to Expanded Dual Band WiFi

RE200 expands your existing WiFi coverage with next generation 11AC WiFi technology. It works with any standard WiFi router and creates stronger dual band connections in hard-to-reach areas, allowing you to enjoy seamless wireless coverage throughout your home or office.



Next Generation 11AC WiFi

Create faster access for 802.11 b/g/n and 802.11ac WiFi devices. RE200 delivers fast speeds of dual band WiFi up to 750Mbps and provides reliable connections for laptops, smartphones, tablets and other wireless-enabled devices.

Enjoy Super Speeds in High Speed Mode

With High-Speed technology, RE200 makes the best use of both WiFi bands to establish super speedy connections — ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.

Easy Setup and Flexible Placement

Press the WPS button on your router and the Range Extender button on your RE200 within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply unplug and plug the RE200 back in anywhere within the wireless range of the existing router, without needing to configure the extender again.

Entertainment Adapter

The RE200's single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs and Internet TVs. At the same time, the device can share the wireless network as well.



• Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
• Compatible with 802.11 b/g/n and 802.11ac WiFi devices
• 300Mbps 2.4GHz wireless rate + 5GHz 433Mbps wireless data rates ideal for video streaming, online gaming and internet calling
• High speed mode limits connection to one band (2.4GHz or 5GHz) to offers maximum performance.
• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Easy configuration by just pushing ‘RE’ button on the range extender and WPS button on your router

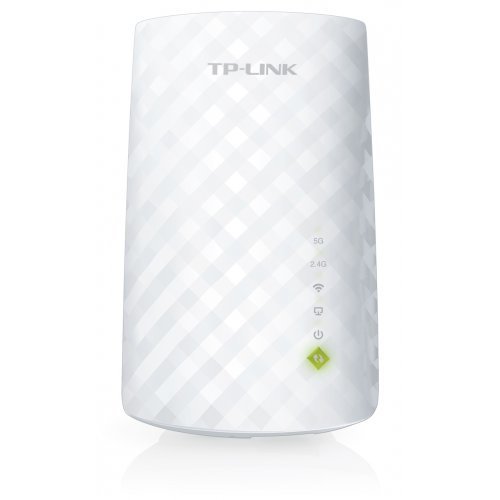

• Smart Signal Indicator Light help to find the right location to place the range extender

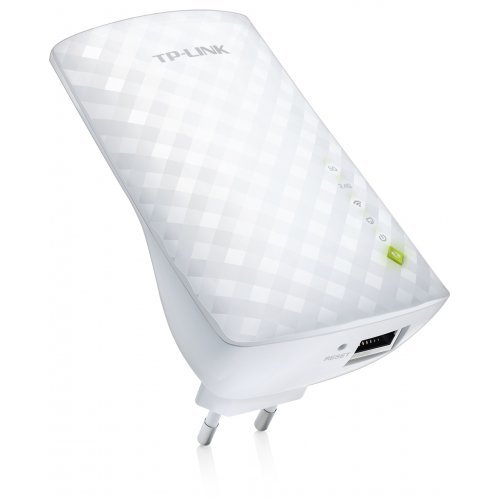

• Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
• Supports domain name-based login (http://tplinkextender.net) for advanced management
• Advanced 64/128/152-bit WEP, WPA-PSK / WPA2-PSK encryptions protect your network from security threats

HARDWARE FEATURES Standards and Protocols IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Interface 1 * 10/100M Ethernet Port (RJ45) Plug Type EU, UK, US, AU Button RE (Range Extender) Button, Reset Button Dimensions (W X D X H) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm) Antenna 3 * internal Power Consumption About 6.5W WIRELESS FEATURES Frequency 2.4GHz & 5GHz Signal Rate 5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs Reception Sensitivity 2.4G:
270M: -70dBm@10% PER
130M: -70dBm@10% PER
108M: -73dBm@10% PER
54M: -75dBm@10% PER
11M: -86dBm@8% PER
6M: -92dBm@10% PER
1M: -94dBm@8% PER
5G:
390M: -60dBm@10% PER
29.3M: -83dBm@10% PER
180M: -64dBm@10% PER
13.5M: -87dBm@10% PER
78M: -68dBm@10% PER
6.5M: -90dBm@10% PER
54M: -75dBm@10% PER
6M：-90dBm@10% PER Transmit Power < 20 dBm (EIRP) Wireless Modes Range Extender Wireless Functions WMM (Wi-Fi Multimedia)
Wireless Statistic
Domain Login Function Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK OTHERS Certification CE, FCC, RoHS Package Contents AC750 WiFi Range Extender RE200
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac® OS, NetWare®, UNIX® or Linux. Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
