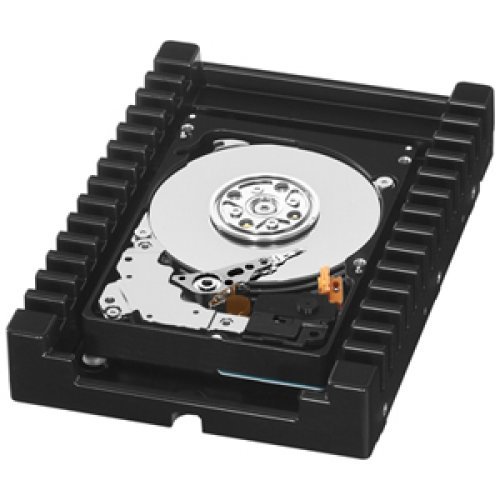

WD VelociRaptor 500 GB SATA Hard Drives ( WD5000HHTZ)
Performance Specifications |
|
|
Rotational Speed |
10,000 RPM (nominal) |
|
Buffer Size |
64 MB |
|
Load/unload Cycles |
600,000 minimum |
|
Transfer Rates |
|
Buffer To Host (Serial ATA) |
6 Gb/s (Max) |
|
Physical Specifications |
|
|
Capacity |
500 GB |
|
Interface |
SATA 6 Gb/s |
|
User Sectors Per Drive |
976,773,168 |
|
Physical Dimensions |
|
English |
|
Height |
1.028 Inches |
|
Depth |
5.787 Inches |
|
Width |
4.00 Inches |
|
Weight |
1.10 Pounds |
|
Metric |
|
Height |
26.1 mm |
|
Depth |
147 mm |
|
Width |
101.6 mm |
|
Weight |
0.50 kg |
|
Environmental Specifications |
|
Shock |
|
Operating Shock (Read) |
65G, 2 ms |
|
Non-operating Shock |
300G, 2 ms |
|
Acoustics |
|
Idle Mode |
30 dBA (average) |
|
Seek Mode 0 |
37 dBA (average) |
|
Temperature (English) |
|
Operating |
41° F to 131° F |
|
Non-operating |
-40° F to 158° F |
|
Temperature (Metric) |
|
Operating |
5° C to 55° C |
|
Non-operating |
-40° C to 70° C |
|
Electrical Specifications |
|
Current Requirements |
|
Power Dissipation |
|
Read/Write |
5.10 Watts |
|
Idle |
4.20 Watts |
|
Standby |
1.10 Watts |
|
Sleep |
1.10 Watts |
|
As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second. |
|
