Безжичен рутер ZTE ZT-ZXHN-H108N, Broadband Access CPE, RJ-11 port for ADSL2+

ZXHN H108N Broadband Access CPE

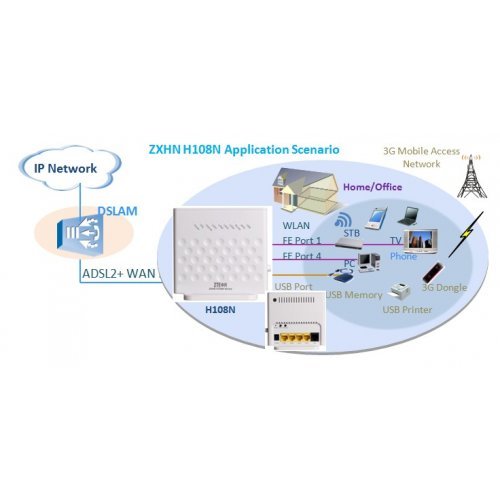

The H108N is a Wireless ADSL2+ modem with four Ethernet interfaces and IEEE 802.11 b/g/n(2x2) Wi-Fi interface and one USB interface. It is used for broadband access  and IPTV service at home. The integration of TR-069 technologies facilitates the automatic installation and automatic provisioning of services.

High Speed ADSL2+ Capability
The  H108N supports ADSL2+ high speed access and is backward compatible with ADSL2 and ADSL. With speed up to 24Mbps (ADSL2+) or 12Mbps (ADSL2), the H108N offers higher data transfer rates and better bandwidth than traditional ADSL Modems. Users can enjoy broadband multimedia applications much easier than before.

Superior Wireless 11n Transmission Performance
Adopting advanced 11n technologies, the H108N creates a superior wireless performance. With data rates up to 300Mbps, data transmission within the LAN becomes more efficient in the high bandwidth applications. In addition, the H108N is fully backward compatible with any IEEE 802.11b/g Wi-Fi certified devices.

Multiple USB functions
Its USB port can be connected with USB HDD, Flash Disk or printers to act as file server and print server so that it can easily support configuration backup and restore, file sharing and network shared printing. And it can provide data service backup via 3G dongle.

Mature IPv6 Capability
With supporting IPv4/IPv6 Dual Stack and DS-Lite, the H108N helps operators and end users to achieve a future-proof network with smooth evolution.

Quality of Service (QoS)
The QoS features on H108N enable service providers to design QoS policies and prioritize mission-critical services such as IPTV and VoIP freely based on their individual service plans. This in turn allows service providers to deliver real multi-play applications to users and increase network efficiency.

Robust TR-069 Remote Management
The H108N works with TR-069 standard management specifications, allowing remote management & diagnosis, reducing the manpower needed for on-site maintenance, and increasing CSI (Customer Satisfaction Index). This unique feature not only offers users a true "plug-and-play” experience but also reduces deployment complexity, thereby saving operation and maintenance costs.

ADSL
 G.992.1 (G.dmt), G.992.2 (G.lite),
   G.992.3 (ADSL2),G.994.1(G.hs),
   G.992.5 (ADSL2+) ,G.997.1
 Annex A/B/I/J/L/M
 ADSL physical connection ATM AAL5
 Supports multiple protocols over
   AAL5 (RFC2684/1483)

Wi-Fi
 Frequency: 2.4 GHz
 Max data rate: 300 Mbps
 IEEE 802.11b/g/n
 WEP/WPA/WPA2 Security
 Up to four broadcast/hidden SSIDs

USB
 File sharing
 Printing server
 USB backup/restore configuration
 3G  dongle
 DLNA DMS

IPv6
 ICMPv6
 PPPoEv6
 DNSv6
 Dual Stack
 DS-Lite
 DHCPv6

Networking
 IPv4/IPv6 Dual Stack and DS-Lite
 NAT/PAT/ALG
 Port mapping/DMZ/Virtual server
 UPnP IGD with NAT traversal capability
 Static routing/dynamic routing
 Dynamic DNS relay
 DHCP client/server
 IGMP and MLD snooping/proxy

Security
 Stateful Packet Inspection (SPI)
 Denial of Service (DoS) protection
 Multiple VPN (IPSec, PPTP) passthrough
 Packet filtering
 MAC address filtering
 IP address filtering
 Port and protocol filtering

QoS
 Queue management
 Flexible packet classification
 Tag processing (802.1p bit and DSCP bits)
 Priority scheduling algorithm

Management
TR-069 remote management
 Web GUI management
 Local built-in diagnostic function
 Logs and statistics
 Remote upgrade by HTTP

Hardware Characteristics
 WAN: one RJ-11 port for ADSL
 LAN:  four RJ-45 ports for FE
 USB: one USB 2.0 host interface
 Wi-Fi: 802.11b/g/n(2X2)
 Buttons:
   WLAN  ON-OFF/WPS/Reset/Power ON/OFF
 LED status indicators: Power, DSL,
   Internet, LAN1-4, WLAN,WPS,USB

Electrical Characteristics
 AC adapter: 12V DC, 500mA
 Power consumption: less than 3Watts

Physical Characteristics
 Net weight: 144g
 Dimensions (WxDxH):52x108x105 mm

Environmental Characteristics
 Temperature: 0°C ~ 40°C (32°F ~ 104°F )
 Humidity: 5% ~ 95% (non-condensing)

Certification
 CE certification
 Wi-Fi certification
